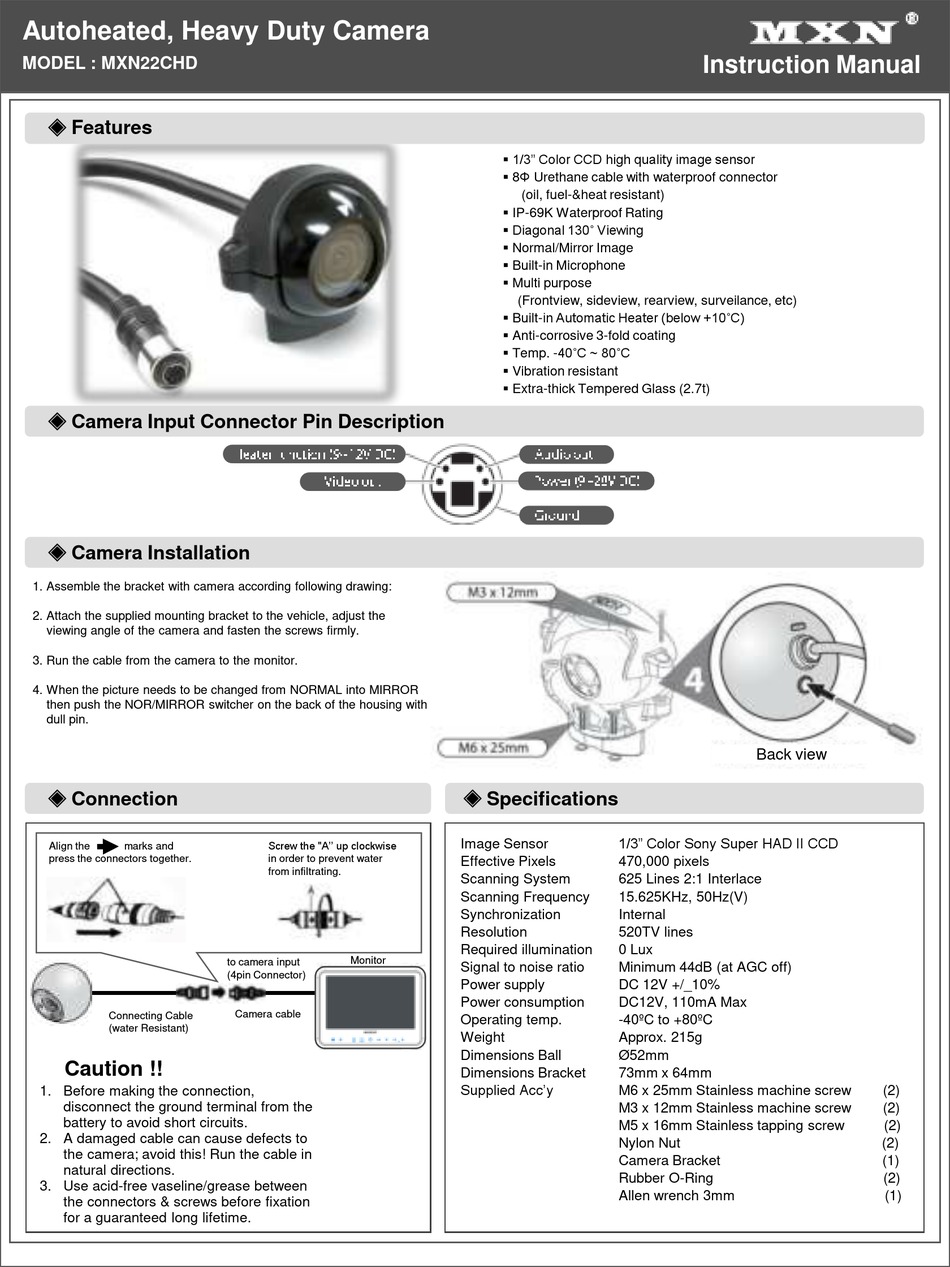

MXN MXN22CHD Instruction Manual

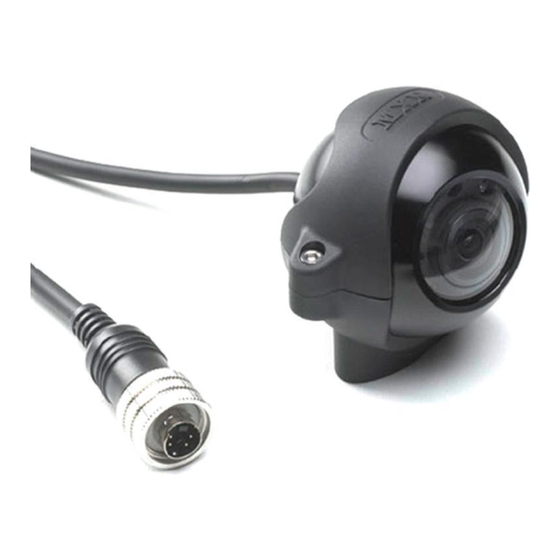

Autoheated, Heavy Duty Camera
MODEL : MXN22CHD
◈ Features
◈ Camera Input Connector Pin Description
◈ Camera Installation
1. Assemble the bracket with camera according following drawing:
2. Attach the supplied mounting bracket to the vehicle, adjust the
viewing angle of the camera and fasten the screws firmly.
3. Run the cable from the camera to the monitor.
4. When the picture needs to be changed from NORMAL into MIRROR
then push the NOR/MIRROR switcher on the back of the housing with a
dull pin.
◈ Connection
Align the marks and
press the connectors together.
Connecting Cable
(water Resistant)
Caution !!
1. Before making the connection,
disconnect the ground terminal from the
battery to avoid short circuits.
2. A damaged cable can cause defects to
the camera; avoid this! Run the cable in
natural directions.
3. Use acid-free vaseline/grease between
the connectors & screws before fixation
for a guaranteed long lifetime.
Screw the "A'' up clockwise
in order to prevent water
from infiltrating.
Monitor
to camera input
(4pin Connector)
Camera cable
 1/3" Color CCD high quality image sensor
 8Φ Urethane cable with waterproof connector
(oil, fuel-&heat resistant)
 IP-69K Waterproof Rating
 Diagonal 130˚ Viewing
 Normal/Mirror Image
 Built-in Microphone
 Multi purpose
(Frontview, sideview, rearview, surveilance, etc)
 Built-in Automatic Heater (below +10˚C)
 Anti-corrosive 3-fold coating
 Temp. -40˚C ~ 80˚C
 Vibration resistant
 Extra-thick Tempered Glass (2.7t)
◈ Specifications
1/3" Color Sony Super HAD II CCD
Image Sensor
Effective Pixels 470,000 pixels
Scanning System 625 Lines 2:1 Interlace
Scanning Frequency 15.625KHz, 50Hz(V)
Synchronization Internal
Resolution 520TV lines
Required illumination 0 Lux
Signal to noise ratio Minimum 44dB (at AGC off)
Power supply DC 12V +/_10%
Power consumption DC12V, 110mA Max
Operating temp. -40ºC to +80ºC
Weight Approx. 215g
Dimensions Ball Ø52mm
Dimensions Bracket 73mm x 64mm
Supplied Acc'y
M6 x 25mm Stainless machine screw
M3 x 12mm Stainless machine screw
M5 x 16mm Stainless tapping screw
Nylon Nut
Camera Bracket
Rubber O-Ring
Allen wrench 3mm
Instruction Manual
Back view
(2)
(2)
(2)
(2)
(1)
(2)
(1)
