Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are
in proper posi�on, �ght and free from damage. Keep this assembly instruc�on for future reference. Adult assembly is required. The product of Hillsdale Furniture,
LLC is designed for residen�al use only. Customer Service Phone Number: 502-562-0000
CODE
QTY
1
6
Ø1/4"*75mm Allen Bolts
2
4
Ø1/4"*38mm Allen Bolts
3
8
Ø1/4"*35mm Allen Bolts
4
8
Ø1/4"*20mm Allen Bolts
5
8
Ø4"*30mm Wood Screws
6
14
1/4" Flat Washers
7
1
4mm Allen Wrench
A
B
H
E
H
CARE & MAINTENANCE: The touch of a so� cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing, as they may
cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely �ghtened.

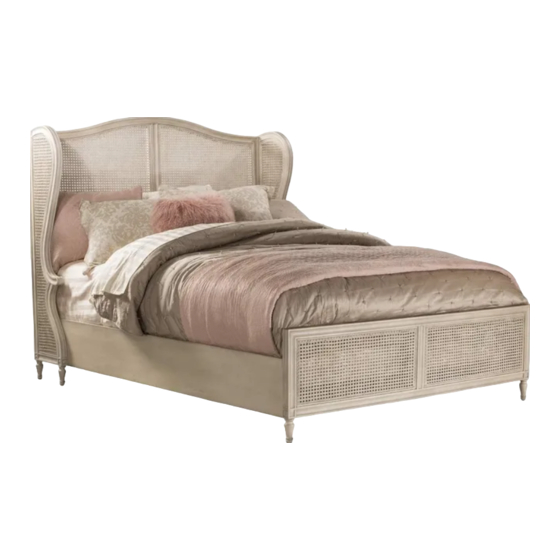

Sausalito Queen Wood Cane Bed
Model #2409-500 - Headboard & Footboard
Model #2409-550 - Rails & Slats
HARDWARE
D
H
G
F
F
G
CODE
QTY
A
1
Headboard
C
1
Footboard
E
2
Side Rails
G
6
Support Legs
B
E
H
G
G
F
G
F
H
COMPONENTS
CODE
QTY
B
D
F
H
WARNING
• Do not let any sharp objects touch or rub
the surface of the product.
• When assembling, do not let children play
around the working area.
• Please confirm all parts are correct before
star�ng the assembly process.
• Do not �ghten all bolts and screws
completely un�l the en�re unit has been
assembled and set up.
• Be careful if using power tools as they can
over �ghten screws and strip threads.
C
Date: 08-23-2018
Page 1 of 2
COMPONENTS
2
Side Panels
1
Headboard Support
4
Slats
6
Feet
H
Advertisement
Related Manuals for Hillsdale Furniture Sausalito 2409-500
Summary of Contents for Hillsdale Furniture Sausalito 2409-500
- Page 1 Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are in proper posi�on, �ght and free from damage. Keep this assembly instruc�on for future reference. Adult assembly is required. The product of Hillsdale Furniture, LLC is designed for residen�al use only.
- Page 2 Sausalito Queen Wood Cane Bed Date: 08-23-2018 Page 2 of 2 Model #2409-500 - Headboard & Footboard Model #2409-550 - Rails & Slats STEP 1 - Figure 1 Begin assembly by a�aching Side Panels (B) to Headboard (A) using 3 Allen Bolts (1) per side. FIGURE 1 A�ach Headboard Support (D) to Headboard (A) using 2 Allen Bolts (2) and 2 Flat Washers (6) per...
