A-AH474
AUXILIARY HEATER
CONTENTS:
Heater • Mounting Brackets • Installation Kit • Instruction Sheet
INSTALLATION KIT INCLUDES:
(2) Y Splicers

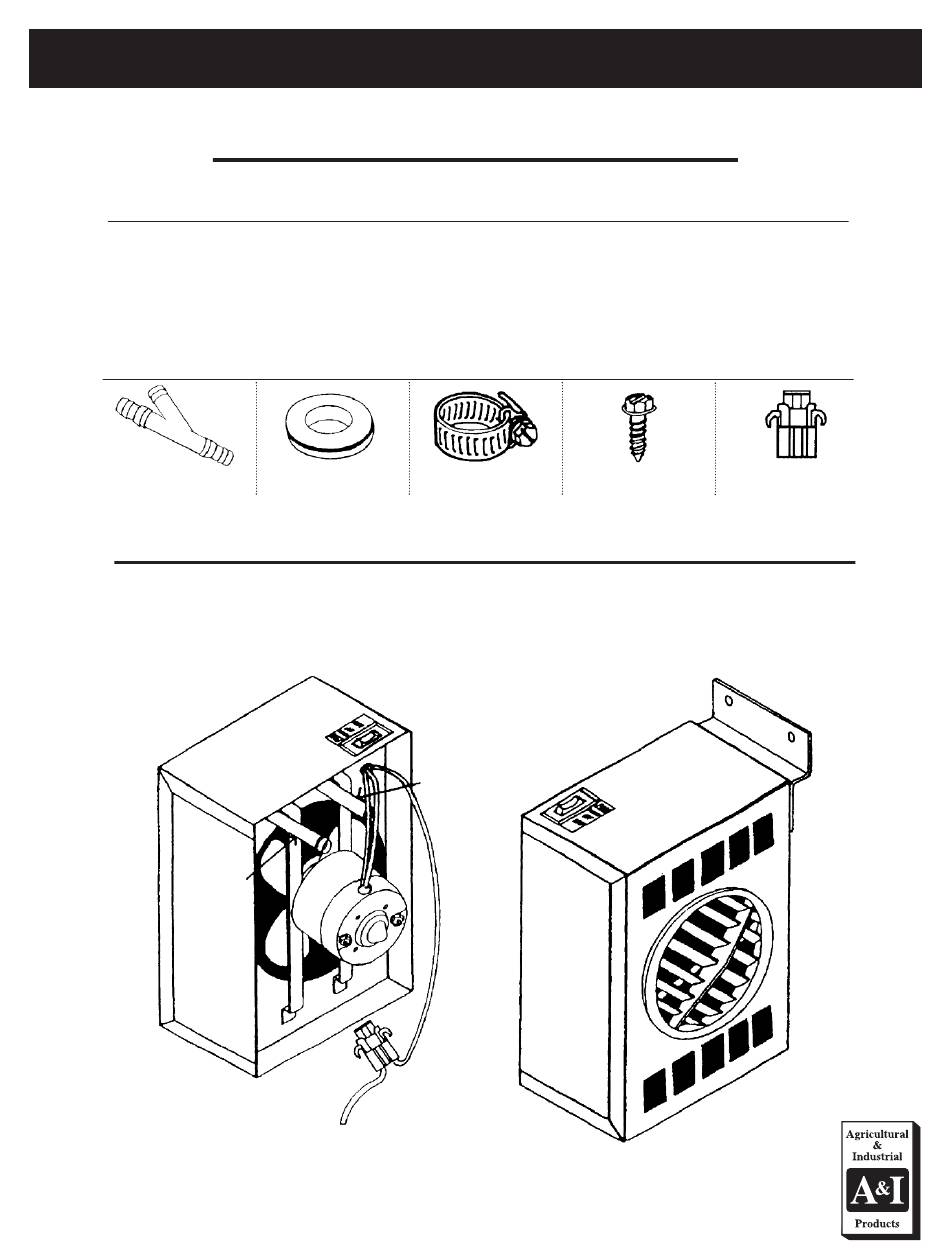

INSTALLATION DIAGRAM:
Materials required to install this heater are
available in the kit shown above. In addition you
will need 5/8" heater hose and 14 GA wire.
WATER IN
OMAH474
MANUAL - PLEASE READ!
Operator Manual
(2) Rubber
Grommets
TO POWER SOURCE
www.aiproducts.com
(8) Hose
Clamps
WATER OUT
7.5A FUSE
A&I Products
(4) Mounting
(1) 7.5A Inline
Screws
12 VOLT
Fuse
Advertisement
Summary of Contents for A&I Products A-AH474
- Page 1 MANUAL - PLEASE READ! Operator Manual A-AH474 12 VOLT AUXILIARY HEATER CONTENTS: Heater • Mounting Brackets • Installation Kit • Instruction Sheet INSTALLATION KIT INCLUDES: (2) Y Splicers (2) Rubber (8) Hose (4) Mounting (1) 7.5A Inline Grommets Clamps Screws...
- Page 2 MANUAL - PLEASE READ! Operator Manual INSTALLATION INSTRUCTIONS: 1. This versatile heater may be mounted vertically. Typical locations include floor, wall or under dash. 2. Route the heater hose to the engine compartment, using grommets through the fire wall, cut the existing hose, add and clamp the Y splicer then run the new hose and clamp to the heater.
