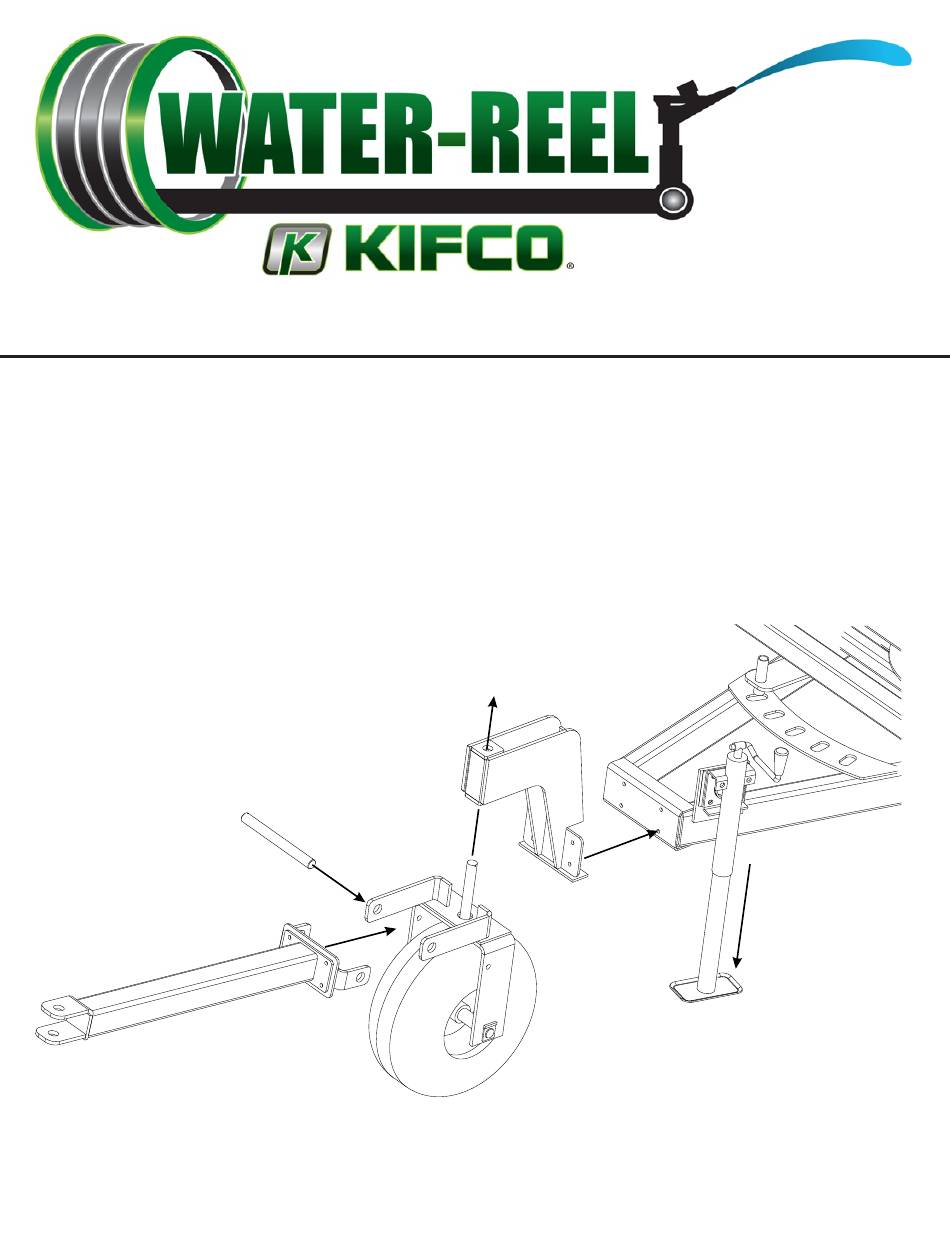

T/E210L & T/E230 ASSEMBLY INSTRUCTIONS
*Extend the tongue jack
*Bolt the Mount 3rd Wheel to the front of the chassis
*Insert the pin on the Front Yoke Assembly through the bottom of the Mount 3rd Wheel. Secure with
1" Washer and Cotter Pin
*Attach the Tongue to the Front Yoke using the Tongue Hinge Pin. Secure with 1" Washers and Cotter Pins
Mount 3rd Wheel
Tongue Hinge Pin
Tongue Jack
Tongue
Front Yoke Assembly
193-0297-0
