- Page 1 LB Pinto 400 V3 29/1 Pinto Users Guide All rights reserved LaserBit Communications Co. Kunigunda u. 45. H-1037 Budapest Hungary Fax:+3612403570 Email.: support@laserbitcommunications.com Please check the latest update on: www.laserbitcommunications.com Table of contents...
-
Page 2: Table Of Contents
LB Pinto 400 V3 29/2 Introduction........................7 Optical free space transmission................8 Typical applications ....................9 1.2.1 Areas with natural or artificial obstacles............9 1.2.2 Urban areas .....................9 1.2.3 Industrial areas....................9 1.2.4 ISP connections.....................10 System description......................10 System layout .......................10 2.1.1 E100 TP and E10 TP..................11 2.1.1.1 Receiver ....................12 2.1.2... - Page 3 Safety of the LaserBit product The LaserBit is classified as Class 3B laser product. The LaserBit System has been tested and found to comply with the EN 60825- 1:1994 +A11:96 (laser safety), EN 60950-1:92+A1:93+A2:93+A3:95+A4:97 (electrical safety), EN 55022:1998 Class 3B (emission) and EN 55024:1998 and EN 50082-2:1995 (immunity) European standards.
- Page 4 Laserleistung und Divergenz des Laserstrahl. Details hierzu sind im Datenblatt nachzulesen. Das LaserBit Produkt muß so installiert werden, daß niemand Zutritt zu der Optik des Laserkopf hat oder zufällig in den Bereich des Laserstrahl kommen kann. Kapitel 5.3.5 auf Seite 18 des Handbuchs enthält ausführliche Anweisungen zum Schutz der Augen.
- Page 5 Sécurité de produit LaserBit Le produit LaserBit est classifié dans la catégorie laser 3B. Le système de LaserBit a été testé et correspond aux normes européennes: EN 60825-1:1994+A11:96 (sécurité du laser), EN 60950-1:92 + A1:93 + A2:93 + A3:95 + A4:97 (sécurité éléctrique), EN 55022:1998 Classe 3B (émission), EN 55024:1998 et EN 50082-2:1995 (immunité).
- Page 6 LB Pinto 400 V3 29/6 Sicurezza dei prodotti LaserBit LaserBit e classificáto di essere un Classe 3B prodotto di lazer. Il sistema LaserBit e stato collaudato e trovato conforme con EN 60825-1:1994 +A11:96 (sicurezza prodotti lazer), 60950- 1:92+A1:93+A2:93+A3:95+A4:97 (sicurezza eletrica), EN 55022:1998 Class B (emissione) ed EN 55024:1998 ed EN 50082-2:1995 (immunitá), Norme...
-
Page 7: Introduction

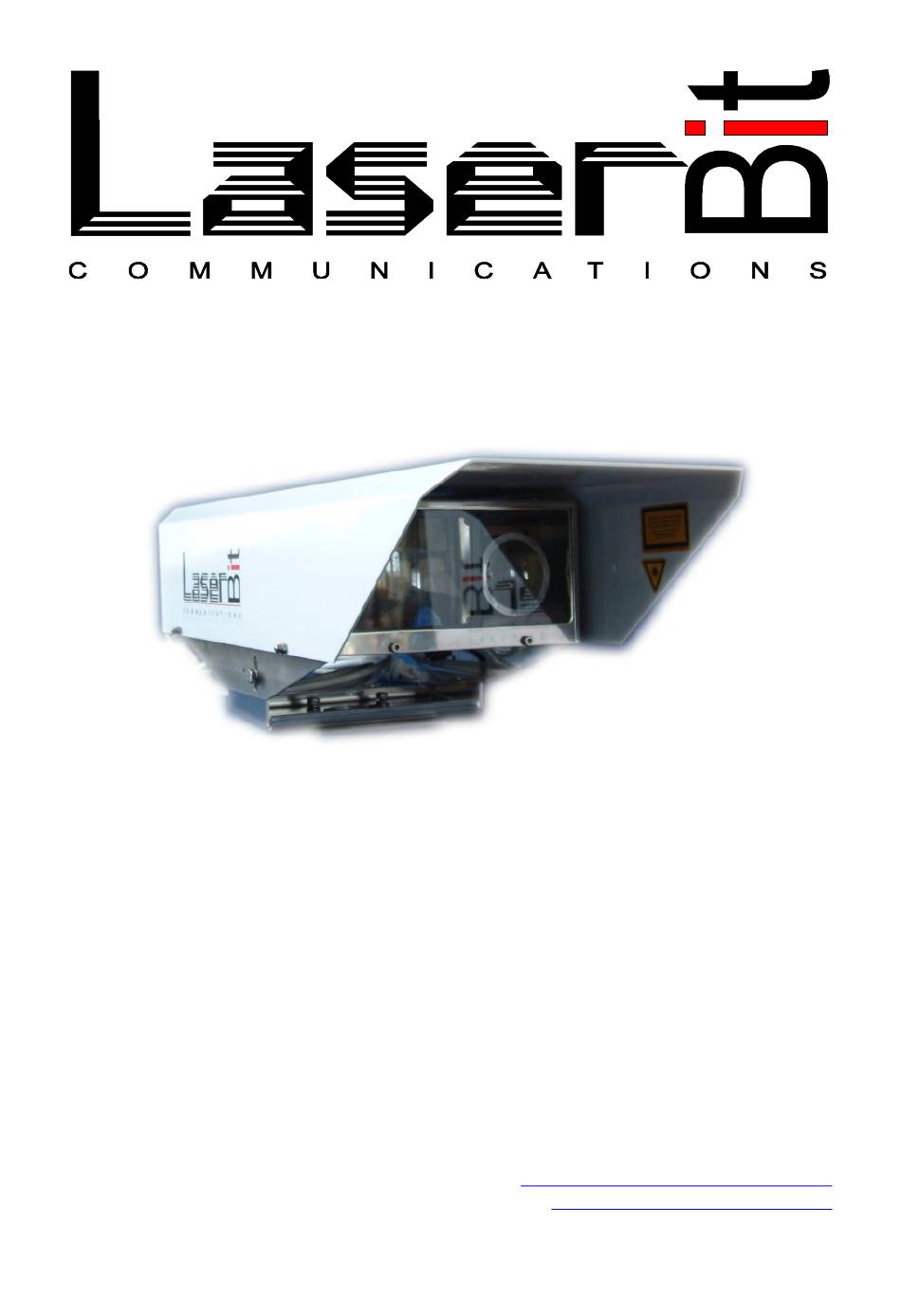

LB Pinto 400 V3 29/7 Introduction This manual describes the LaserBit LB Pinto series of free space laser transmission system including the following models: E100 E100TP E10TP The LaserBit-Pinto product range offers cost effective, reliable free space laser transmission for 2Mbps up to 155Mbps data through the air, where a clear line of sight is available. -
Page 8: Optical Free Space Transmission
(depending on the weather conditions). The LaserBit heads are usually placed on top of buildings, where the clear line of sight is guaranteed and the beam cannot be interrupted. -
Page 9: Typical Applications
1.2 Typical applications Most typically the LaserBit-TP is used to interconnect LAN-s. The system is protocol transparent, thus other applications also can be taken into consideration. Appropriate interface converters are needed and system bandwidth must be matched for that. -
Page 10: Isp Connections
L A N System description 2.1 System layout The LaserBit communication link comprises two Laser Heads - one at each end - and the associated supporting hardware. All interface connections together with the power supply are housed in the Outdoor Interconnection Unit. -
Page 11: E100 Tp And E10 Tp
LB Pinto 400 V3 29/11 2.1.1 E100 TP and E10 TP Connect the head through the indoor box to the network switch. Do not connect the UTP cable directly from the head to your network equipment neither do not change the polarity of the RJ45 connectors. The Cables carries detector voltage so it can cause damage in the equipment. -
Page 12: Receiver
LB Pinto 400 V3 29/12 2.1.1.1 Receiver RX level OK FO ERR Received signal level FO TX TP ERR Saturation TP TX Install LED Link/Act Data Valid Data Valid Link/Act Display Panel The description of the indicators can be found in the followings: ? PWR (Power –... - Page 13 LB Pinto 400 V3 29/13 ? TP ERR (Twisted Pair error – red) ON when data error occurs on the UTP interface. ? TP Data Valid – green Flashes when the network packet being received on the UTP port is valid. ? FO Data Valid –...
-
Page 14: E100 Fo
LB Pinto 400 V3 29/14 2.1.2 E100 FO LB-E100-FO systems are for connecting LAN’s on 100Mbps with 100BaseFX connection. Installation distance between the head and the network equipment is 1200meters. Connecting the fibre cable from the head to the outdoor box, and from the outdoor box to the FX/TX converter. -
Page 15: E1, E2, E3 Fo System
LB Pinto 400 V3 29/15 2.1.3 E1, E2, E3 FO system E1, E2, E3 connecting basically telephone exchanges. Speeds are different E1: 2Mbps E2: 8Mbps E3: 34Mbps (Modular multiplexer available) Connect the fibre cable from the head to the outdoor box and from the outdoor box connect it straight to the multiplexer. -
Page 16: Connection Of The Management System
LB Pinto 400 V3 29/16 2.1.4 Connection of the management system Management system can be attached to any LB equipment, connection between the head and the Management indoor component is realized with RS485 connection... -
Page 17: The Outdoor Interconnection Unit
LB Pinto 400 V3 29/17 2.2 The Outdoor interconnection unit The outdoor interconnection unit (OIU) provides the power supply for the head. This unit provides +8VDC, GND, -8VDC and the 30VDC for the head. Ensure that the cables are connected as it seen below. The OIU also has a TP connection module that provides an easy-to-use connection between the head and the local network. -
Page 18: Power To The Head
LB Pinto 400 V3 29/18 2.2.2 Power to the Head This is where the necessary +8 VDC, Ground, -8 VDC and 30 VDC is connected to the head. Use the power cables embedded into the head and connect them to the 4 pin connector. -
Page 19: Fo Outdoor Unit Data Connection
LB Pinto 400 V3 29/19 2.2.4 FO Outdoor unit data connection Fibre connector for SC type connector +RS485 Udet J7(RJ11) Pin Nr Udet -RS485 +RS485 -RS485 Installation. 3.1 Preisntallation 3.1.1 Site Survey 3.1.1.1 Key factors of operation There are four key issues that the site survey has to shed light on. The proper system operation cannot be guaranteed without satisfying all the four requirements. -
Page 20: Preferred Installation Sites
If the distance is too small contact your distributor or LaserBit support for information of the special installation! ? East-West orientation - although the receiver optics is equipped with optical filters to protect the receiver diode from the effect of undesired light sources, the direct sunshine can cause saturation of the diode. -
Page 21: Distance Measurement
In cases where installations are listed under “AVOID” cannot be avoided than special mounting accessories to be designed and special installations must be used. It is not only the building that has to be solid, but the support structure too. Antenna poles, security camera holders are not suitable for the LaserBit TP units. 3.1.1.3 Distance measurement Try to get as accurate information about the connection distance as you can in order to preset the system for you. -
Page 22: Direct Sunshine
LB Pinto 400 V3 29/22 3.1.1.4 Direct sunshine To prevent the sun shining directly into the receiver optics, first one has to determine the orientation of the link. Try to avoid East-West orientation wherever it is possible. Examine both sides of the link at sunset and sunrise and find a position where the sun cannot get behind any of the heads. -
Page 23: Installation Of The Link
LB Pinto 400 V3 29/23 3.3 Installation of the link For proper installation follow The Steps Listed Below. 1. Direct head “A” to side “B” using the embedded pointing device Align Cross-Hair at unit “B” 2. Direct head “B” to side “A” using the embedded pointing device.(See Diagram 3.1) Align Cross-Hairs at unit “B”. - Page 24 LB Pinto 400 V3 29/24 3. fix the Pinto head on side “A” and on side “B” with the screws to the mounting frame and with the screws on the side of the unit(make sure that the unit is not moved during the tighten process).
-
Page 25: On-The-Table Test
If there is a transmission problem check the status of the connecting devices (e.g. link ON) and cables. If there’s no LINK signal, connect the network equipments back-to-back omitting the LaserBit system to ensure that they work properly. Should they operate well, get in contact with your supplier or call the... -
Page 26: Warranty Conditions
LaserBit Communications Corp. or its authorised partners. If the LaserBit product fails to operate as warranted at any time during the warranty period, LaserBit Communications Corp. will repair, or at its option, replace the defective product at no additional charge. - Page 27 If the LaserBit product does not operate as warranted above, the customer’s sole remedy shall be repair or replacement. The foregoing warranties and remedies are exclusive and are in lieu of all other...
- Page 28 LB Pinto 400 V3 29/28...
- Page 29 LB Pinto 400 V3 29/29...
