Inspection Camera
Users Manual
ES049A

Advertisement

loading
Need help?

Need help?

Do you have a question about the ES049A and is the answer not in the manual?

Questions and answers

Summary of Contents for Atel Electronics ES049A

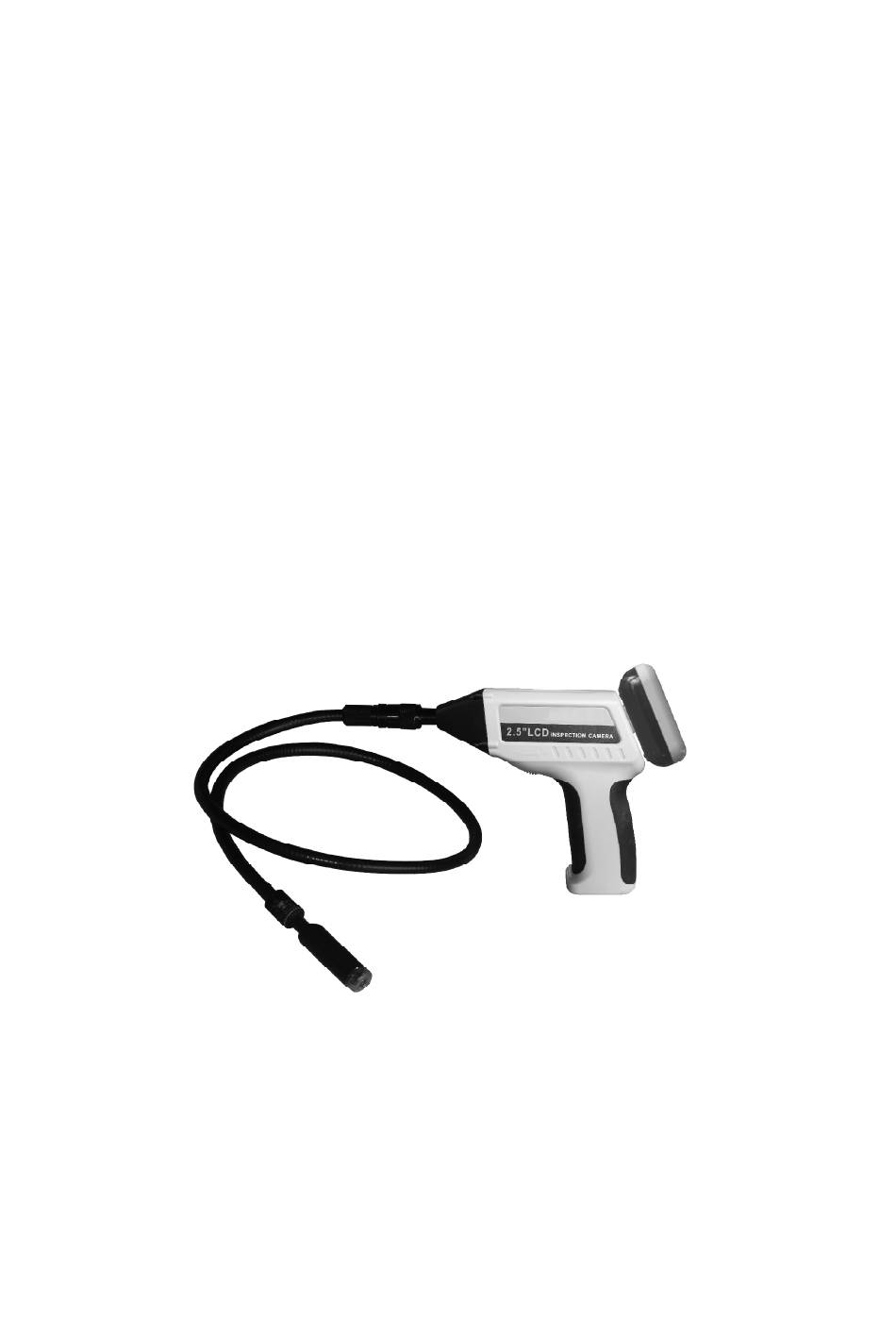

  • Page 1 Inspection Camera Users Manual ES049A...

  • Page 3: General Description

    GENERAL DESCRIPTION The instrument can be used to look into tight spots and beam back real-time video to the monitor. You can use it to inspect vehicle, pipe, machine, box, tank, and etc. STRUCTURE Power Indicator Flexible Monitor Tube Power Switch Camera and LEDs ASSEMBLY Before use, you must assemble the instrument.
  • Page 4 To Install Batteries Tube Connector Main Body Battery Cover 1. Use a suitable screwdriver to remove the screw of the battery cover, and then remove the battery cover. 2. Remove the battery holder from the battery compartment, and install 4 new 1.5V AA batteries in the battery holder in correct polarity.
  • Page 5 There is a protrusion on the connecting end of the flexible tube. Slide this protrusion into the slot on the tube connector of the main body. Fasten the knurled nut of the main body until the tube and the main body are connected firmly.
  • Page 6 To Install Accessory: Example: Use the hook to catch a cable.
  • Page 7 To Install the Monitor The following illustrations show the procedure to install the monitor. Signal Output Slot Connector Aim the slot of the monitor at the the signal output connector and gently place the monitor onto the connector. Slide the monitor downwards.
  • Page 8 Note: 1. To avoid damage to the monitor, turn off the instrument before you connect or remove the monitor. 2. Do not reverse the monitor. OPERATION INSTRUCTION 1. Roll the power switch to turn on the instrument, the power indicator will light. This switch then acts as a dimmer for the LEDs which surround the camera and provide illumination.
  • Page 9 display. b. " " Button Each press of this " " button increments the display's brightness. When the highest brightness is reached, the display wraps to the lowest brightness. c. " " Button Each press of this " " button increments the display's contrast.

  • Page 10: Specification

    SPECIFICATION Imaging Sensor 1/4" Color CMOS sensor × Total Pixels 492 (NTSC) Camera Output Frame Rate 60 FPS Optimum Image 100mm Distance Display 2.5" TFT-LCD Image Head Diameter 17mm Tube Diameter 9.5mm Tube Length 950mm 1.5V AA alkaline battery, Battery 4 pieces Power Consumption <...
  • Page 11 NOTE 1. The instrument (including the tube and its image head) is not waterproof. Don't immerse the tube into water. 2. The instrument contains precision components. Don't drop or bump the instrument, especially the monitor. 3. Do not use the camera if condensation forms inside the lens.
  • Page 12 be correct. 7. Properly dispose of the battery by following all applicable regulations. DECLARATION 1. This manual is subject to change without notice. 2. Our company will not take the other responsibilities. 3. The contents of this manual can not be used as the reason to use the instrument for any special application.
