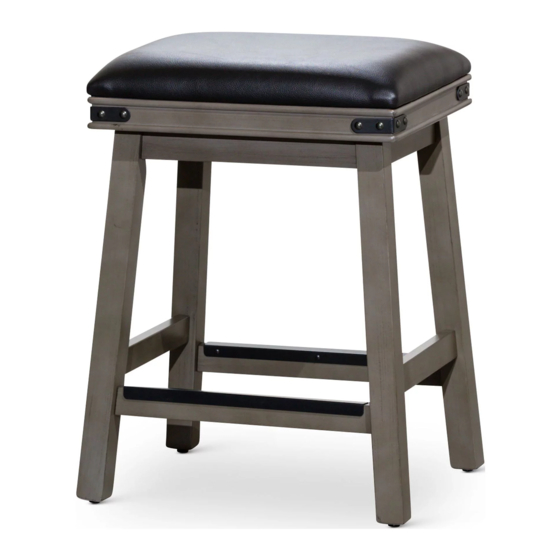

Cortez Stool
Item No. IF-1060, IF-1061, IF-1062, IF-1063, IF-1064,
IF-1065, IF-1066, IF-1067, IF-1134, IF-1135, IF-1136,
IF-1137
For assistance with assembly, please contact DTYStore.com Customer Satisfaction Center
866-217-8155 . CS@DTYStore.com
Made in Vietnam
Updated V. 6-2021
Cortez Stool V. 6-2021
www.DTYStore.com
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for DTY IF-1134
Summary of Contents for DTY IF-1134
- Page 1 Cortez Stool Item No. IF-1060, IF-1061, IF-1062, IF-1063, IF-1064, IF-1065, IF-1066, IF-1067, IF-1134, IF-1135, IF-1136, IF-1137 For assistance with assembly, please contact DTYStore.com Customer Satisfaction Center 866-217-8155 . CS@DTYStore.com Made in Vietnam Updated V. 6-2021 Cortez Stool V. 6-2021 www.DTYStore.com...
- Page 2 Thank you for your DTYStore Purchase! We want you to have the best experience possible. If you have any issues with the assembly, quality or performance of your product PLEASE CONTACT OUR CUSTOMER CARE CENTER BEFORE YOU RETURN IT. Email us at: CS@DTYStore.com Cortez Stool V.
- Page 3 Pre-Assembly Instructions • Read all instructions carefully before assembly. • Find a smooth clean area in which to work to avoid damaging your item. • Check that all parts and hardware from the lists are present. • Lay out parts in alphabetical order and hardware in numerical order to make them easier to find when you are ready to assemble •...
- Page 4 Assembly Instructions: Step 1 Wait to fully tighten all hardware until the end of Step 2. A. Place Seat (A) upside down on a soft surface. Use two Bolts (4), two Spring Washers (3), and two Flat Washers (2), to loosely attach Left Leg (B) to Seat (A). TIP: Leg should line up perfectly with the apron of the chair, if there are any gaps between the leg and the seat frame, the leg is in the wrong corner A.
- Page 5 Step 2 A. Use two Bolts (4), two Spring Washers (3), and two Flat Washers (2), to loosely attach second Left Leg (B) to Seat (A). B. Place Footrest (E) in the slot on Right Leg (C), and in the slot on the second Left Leg (B) Be sure the metal footplate faces the seat, and the screw slots face up.
- Page 6 Step 3 A. Use two Screws (5), to attach Side Stretcher (E) between Right Leg (C) and Left Leg (B) TIP: Press both legs against the Side Stretcher bar, until you get the screws started. Make sure the stretcher bar is flush (no gaps) against the leg, this will also help with stabilization.
- Page 7 Post-Assembly Instructions: • Periodically check hardware to be sure they do not loosen over time. • Do not stand on stool or stretchers. Furniture Care Tips With proper care your furniture will look beautiful for years to come. • Avoid placing in direct sunlight to keep from fading and discoloring. •...
