Summary of Contents for Gemotech RemoDAQ-8000 Series

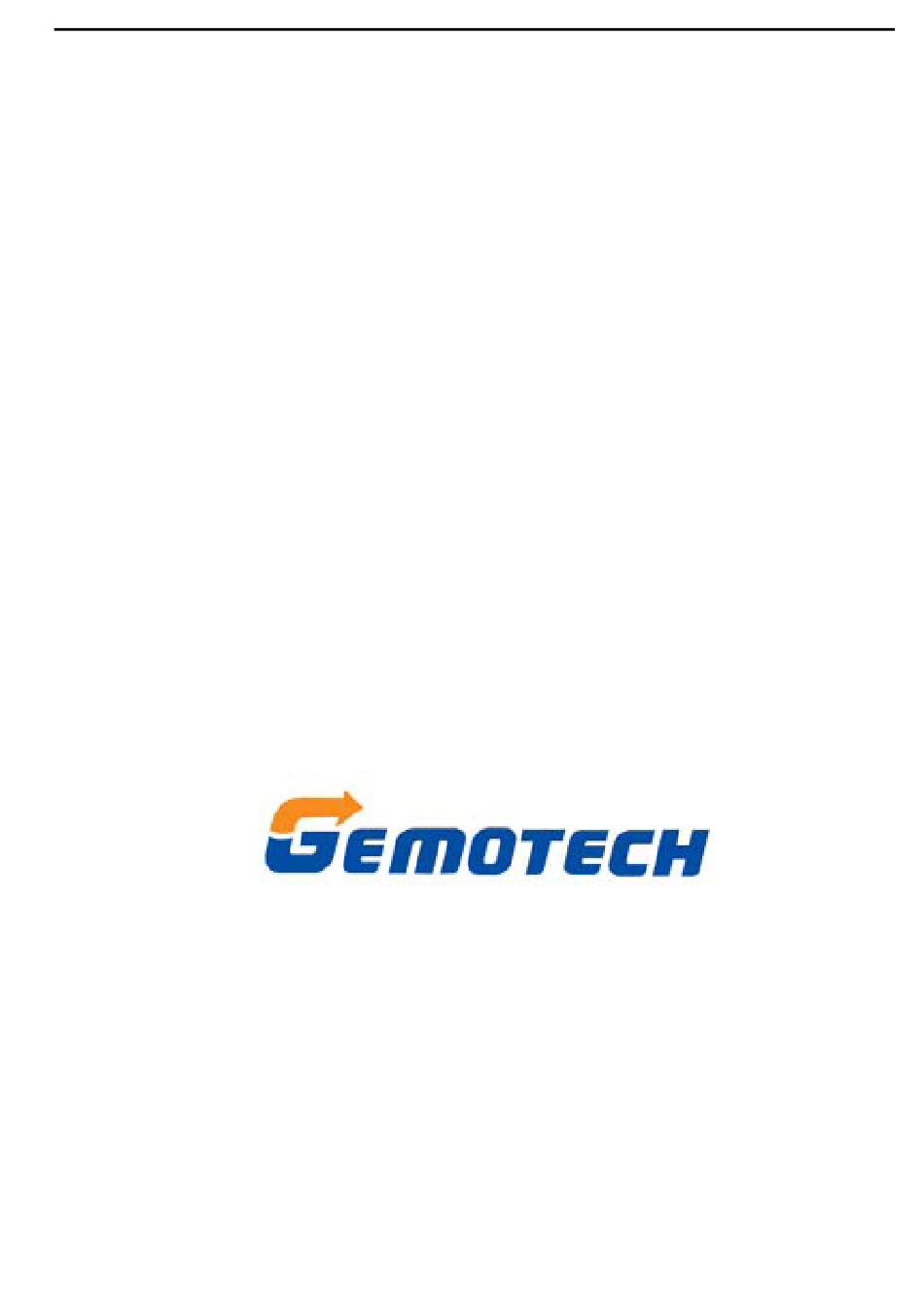

- Page 1 V1.1 2010.2.2 RemoDAQ-8054 User’s Manual Beijing Gemotech Intelligent Technology Co.， Ltd...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Beijing Gemotech Intelligent Technology Co.，Ltd. Information provided in this manual is intended to be accurate and reliable. However, Beijing Gemotech Intelligent Technology Co.，Ltd assumes no...
- Page 3 Visit the gemotech websites at www. gemotech. cn where you can find the latest information about the product. Contact your distributor, sales representative, or gemotech 's customer service center for technical support if you need additional assistance. Please have the following information ready before you call：...
-
Page 4: Table Of Contents
RemoDAQ-8054 User’s Manual Table of Contents 1 Introduction ....................4 1.1 Pin Assignment & Specifications ..........4 1.2 Block Diagram ................5 1.3 Application Wiring ..............5 1.4 Default Setting ................6 1.5 Jumper Setting................6 1.6 Install List .................. 6 2 Initialization &... -
Page 5: Introduction
RemoDAQ-8054 User’s Manual 1 Introduction The RemoDAQ-8000 Series is a set of intelligent sensor to computer interface modules containing built in microproces- sor. They are remotely controlled through a simple set of commands issued in ASCII format and transmitted in RS-485 protocol. -
Page 6: Block Diagram
RemoDAQ-8054 User’s Manual 1.2 Block Diagram 1.3 Application Wiring Dry Contact Input... -
Page 7: Default Setting
RemoDAQ-8054 User’s Manual 1.4 Default Setting Address：01 Baudrate：9600 bps Type：40 Checksum disable JP1 disconnection：disconnection INIT* pin with the GND pin，natural work mode 1.5 Jumper Setting JP1：Select INIT* pin with the GND pin whether connect Disconnection： Don’t connect INIT* pin with the GND pin Connection：Connect INIT* pin with the GND pin 1.6 Install List Baudrate Setting (CC) -
Page 8: Initialization & Installation
RemoDAQ-8054 User’s Manual 2 Initialization & Installation 2.1 Installation Guideline Figure 2-1 Power Supply Connections We advise that the following standard colors (as indicated on the modules) be used for power lines： +Vs (R) GND (B) Black We advice that the following standard colors (as indicated on the modules) be used for the communication lines：... -
Page 9: Basic Configuration And Hook-Up
RemoDAQ-8054 User’s Manual your drive of CD-ROM is F： then change the drive to F： Find the setup of “RemoDAQ-8000 Utility” and run it. Please follow the steps of setup program then you can successfully install the RemoDAQ-8000 Utility 2.3 Basic configuration and hook-up Before placing a module in an existing network, the module should be configured. - Page 10 RemoDAQ-8054 User’s Manual RemoDAQ converter module, a personal computer with RS- 232 port (baudrate set to 9600) and theRemoDAQ utility software. Configuration with the RemoDAQ Utility Software The easiest way to configure the RemoDAQ module is by using the RemoDAQ utility software：an easy-to-use menu- structured program will guide you through every step of the configuration.
-
Page 11: Baudrate And Checksum
RemoDAQ-8054 User’s Manual (See Chapter 3, Command Set for a full description of the syntax of the configuration command for module) When the module received the configuration command it will respond with its new address：!07(cr) NOTICE： All reconfiguration except changing of baud rate and checksum values can be done dynamically, i.e. - Page 12 RemoDAQ-8054 User’s Manual Baud rate and checksum settings have several things in common： They should be the same for all modules and host computer. Their setting can only be changed by putting a module in the INIT* state. Changed settings can only take effect after a module is rebooted To alter baudrate or checksum settings you must perform the following steps：...
-
Page 13: Command Set
RemoDAQ-8054 User’s Manual 3 Command Set Introduction To avoid communication conflicts when several devices try to send data at the same time, all actions are instigated by the host computer. The basic form is a command/response protocol with the host initiating the sequence. When modules are not transmitting they are in listen mode. - Page 14 RemoDAQ-8054 User’s Manual The delimiter character is followed by a two-character address (hexadecimal) that specifies the target module. The actual two-character command follows the address. Depending on the command, an optional data segment follows the command string. An optional two character checksum may be appended to the total string.
- Page 15 RemoDAQ-8054 User’s Manual General Command Sets Command Syntax Command Name Command Description Notes Sets the address,input range, %AANNTTCCFF Configuration baudrate,dataformat,checksum status Return the configuration $AA2 Configuration status parameters for the module Returns the values of the digital I/O $AA6 Digital I/O value channel in the addressed module $AAF Return the firmware version code...
-
Page 16: Aannttccff
RemoDAQ-8054 User’s Manual 3.1 %AANNTTCCFF Name：Configuration Description：Sets address, type code, baudrate, data format Syntax：%AANNTTCCFF(cr) delimiter character. AA address of setting module (00-FF) NN New address (00-FF) New type CC New baudrate New data format When changing baudrate or checksum, we should INIT* termination land. Not used Checksum status 0：... - Page 17 RemoDAQ-8054 User’s Manual ? command is invalid. AA address of setting module (00-FF) (cr) is the terminating character, carriage return (0Dh) Example： Command：%0102400600(cr) Response：!02(cr) Change address from 01 to 02,type 40 , baud rate 9600, integration time 50 ms (60 Hz), engineering units data format and no checksum checking or generation.
-
Page 18: Aa2
RemoDAQ-8054 User’s Manual 3.2 $AA2 Name：Configuration Status Description： The command requests the return of the configuration data from the analog input module at address AA. Syntax：$AA2(cr) $ delimiter character. AA address of reading module(00~FF) 2 the Configuration Status command. (cr) the terminating character, carriage return (0Dh). Response：!AATTCCFF(cr) if the command is valid. -
Page 19: Aa6
RemoDAQ-8054 User’s Manual 3.3 $AA6 Name：Read Digital I/O Value Description：Asks a specified input module to return the status of the digital I/O channel. Syntax：$AA6 (cr) $ delimiter character. AA address of reading module(00~FF) 6 read digital I/O statues command. (cr) is the terminating character, carriage return (0Dh). Response：!(data)(cr) if the command is valid. -
Page 20: Aaf
RemoDAQ-8054 User’s Manual 3.4 $AAF Name：Read Firmware Version Description：The command requests the module at address AA to return the version code of its firmware. Syntax：$AAF (cr) $ delimiter character. AA address of reading module(00~FF) F identifies the version command. (cr) is the terminating character, carriage return (ODh) Response：... -
Page 21: Aam
RemoDAQ-8054 User’s Manual 3.5 $AAM Name：Read Module Name Description：The command requests the module at address AA to return its name. Syntax：$AAM (cr) $ delimiter character. AA address of reading module(00~FF) M the Read Module Name command. (cr) is the terminating character, carriage return (ODh) Response：!AA(data)(cr) if the command is valid. - Page 22 RemoDAQ-8054 User’s Manual 3.6 @AA Name：Read Digital I/O Status Description：The addressed of module is instructed to return the value of its DI/O channels. Syntax：@AA (cr) @ delimiter character. AA address of reading module(00~FF) (cr) represents terminating character, carriage return (0Dh). Response：>(data)(cr) if the command was valid ?AA(cr) if an invalid command was issued.
-
Page 23: Aao(Data)
RemoDAQ-8054 User’s Manual 3.7 ~AAO(Data) Name：Set Module Name Description：Set the module name and return success or error. Syntax：~AAO(Data) (cr) $ delimiter character. AA address of setting module(00~FF) O Set Module Name command. Data new name for module，max 6 characters (cr) is the terminating character, carriage return (ODh) Response：!AA(cr) if the command is valid.
