Vicom CVI Series Instructions

BRIEF OF PRODUCT
Sensor
Using high-performance image sensor, with millions
of pixels resolution.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Auto Electronic Shutter (AES)
Built-in auto electronic shutter function.
* Gamma Characteristic
Camera Gamma characteristic is 0.45.
* Scanning Mode
NTSC or PAL mode.
* Night-time Vision
0 Lux with IR LED ON. Adopt TaiWan high quality IR
LED, having very good night-vision effect.
Notes：
●The output voltage, current, voltage polarity and operating temperature
must match the camera requirements.
●Use lightning protection.
●Avoid using long power and video cables in order to maintain high
quality pictures.

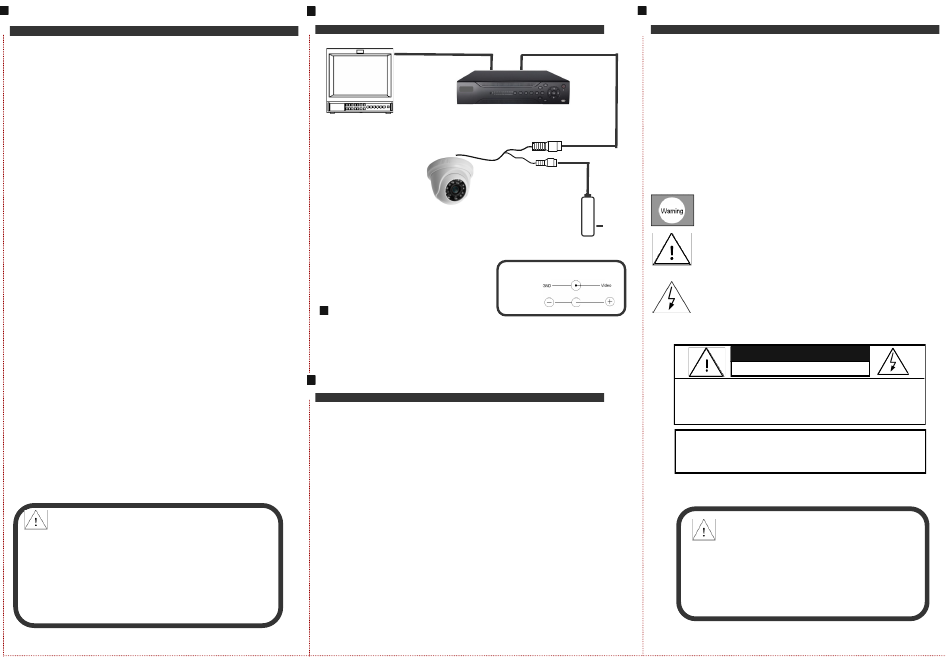

CONNECTING
Monitor
VDM-C124BL-CVI
TROUBLE AND SOLUTION
1. No picture after powering on the device
. Check the power supply if connected properly
. Check all the cables and monitors if connected properly
2. Interference appears on the picture
. May be caused by the PSU AC ripples
. Check the monitors and peripheral equipments used
3. The background color of the picture changes continuously
. The color roll may be caused by the electromagnetic field of a fluorescent
lamp
. Reduce the number of fluorescent lamps or increase the distance between
the camera and the fluorescent lamps in order to improve the quality of
the picture
4. Too much smear appears on the picture
. The PSU voltage is unstable
. The cables are not connected properly or the impedance is high
INTRODUCTION
Use this user manual for VDM-C124BL-CVI. The
latest technology has been adopted for both sensor and
driver.
Highlighted features of the camera cover HD video and
lossless transmission by common 75-3 type coaxial cable,
high stability, rich and real color, easy and convenient
DVR
mounting in most environments.
Please read this user manual carefully in order to making
Video
sure a proper use of the product.
12V DC
DC12V Power Supply
Link wire rule：
Video
Power
CAUTION:
For prevention against fire and electric shock. Do not ex-
pose the unit rain into water too long time directly.
The symbol is intended to alert the user to the presence of
important operating and maintenance instructions
The symbol is intended to alert the user to the presence of
uninsulated 'dangerous voltage' within the product's
enclosure that may be of sufficient Magnitude to consti-
tute a risk of electric shock to persons.
CAUTION:
RISK OF ELECTRIC. DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
In order to prevent electric shocks and risk of fire,
do NOT use other than specified power sources.
Note:
● Please pay attention to the operating temperature and the envi-
ronment requirements of the camera. Avoid using the camera at
too high or too low temperatures. The operating temperature is
–20 ~+50 .
● Never expose the camera to direct sunlight or bright objects.
● Do not mount the camera next to a radiator or heater
