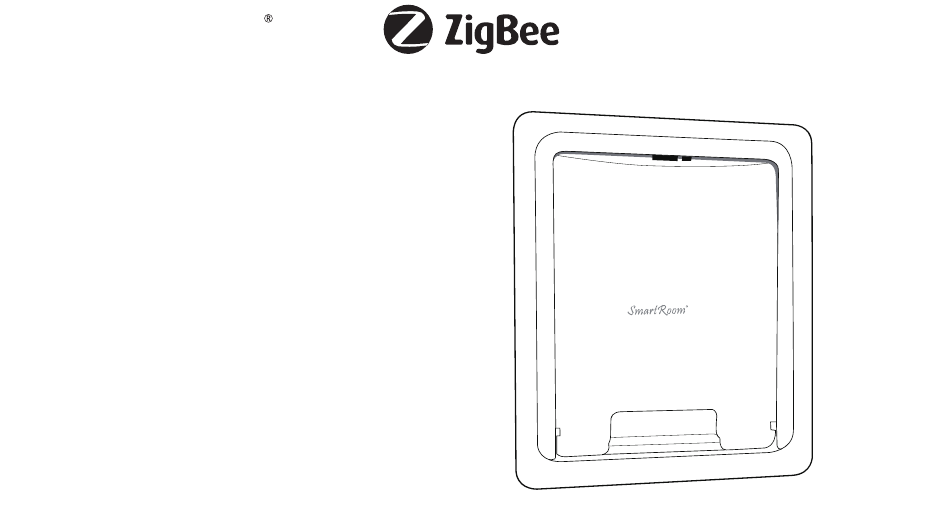

- Page 1 SmartRoom IPAD Wall Base (iPad2) Quickly Guide You can read software instruction to get more information.
- Page 3 Copyright © Nanjing IOT Sensor Technology Co.,Ltd. 2013 Publication Number：2013-0627.1 The manual is issued by Nanjing IOT Sensor Technology Co., Ltd. It is without warranty. We reserve the right to change and modify misprinted and incorrect information and improve programs or devices at any time without notice. Such modifications will be written in the new- edition of the manual.
- Page 4 Trademark SmartRoom, IOT Sensor, Wulian are all the registered trademarks of Nanjing IOT Sensor Technology Co., Ltd. Usage of these trademarks is strictly prohibited without the written authorization and permission from Nanjing IOT Sensor Technology Co., Ltd. Legal action will be taken against unauthorized use of these trademarks.
-
Page 5: Basic Function
Basic Function ● Support ZigBee/SmartRoom protocol. ● The installation is very convenient, and it can merge into household decoration. ● Brand new appearance design, more suitable for home life. ● Wireless layout, more convenient for the charging of iPad. -
Page 6: Function Diagrams
Function Diagrams Multi-function Key iPad Charging Socket Tamper Protection Switch iPad Place Area Decorative Cover... - Page 7 Function Diagrams Power Interface Self-locking Shackle...
-
Page 8: Installation
Installation 1. According to the chart, connect to 220V power lines. Power Interface... - Page 9 Installation Steps 2.Tighten the self-locking shackle with the screw, then fix the base in the wall. Self Locking Shackle...
- Page 10 Installation Steps 3.Attach the Decorative Cover. Installation is completed. Wall...
- Page 11 Installation Steps 4.Press iPad place area lightly, after it pops out, and then put the iPad in the place area. Press iPad place area again, and then the place area returns to the original position. Press iPad place area lightly...
-
Page 12: Networking Setting
Networking Setting 1.Please make sure the Gateway (additional purchase) ZigBee network is working with power within effective communication distance of gateway before configuring the wall switch. Attention: For more details please refer to wireless gateway instruction. - Page 13 Network Setting 2. Press Multi-functional key 4 times quickly to join ZigBee network. Click the multi-functional key 4 times quickly to join the ZigBee network successfully and then the buzzer gives out a long ring for 2 seconds and stops.
- Page 14 Network Setting 3. Long pressing the multi-function button for 10 seconds, restore to factory settings and exit the ZigBee network at the same time. Long pressing the multi-function button for 10 seconds, if the buzzer rings 4 times, the device will exit the ZigBee network successfully.
-
Page 15: How To Use
How To Use 1. 1.This product has the unique anti-theft design. When the iPad is placed in or removed away from the base, users can receive the warning messages in mobile terminals in case of iPad has been stolen, so users will feel more safer and comfortable. 2. -
Page 16: Product Specifications
Product Specifications Power Requirement 220V Working Temperature -10℃~+55℃ Wall Required Size 281*228*60.5mm Weight 1800g Net weight 1700g... -
Page 17: Ordering Information
Ordering Information Name of Order iPad Wall Base （iPad 2） Part No. SR-IES-01 Article No. WLPN1402310... - Page 20 B11 Software Valley, NO.15, Fengji Avenue, Yuhuatai District, NanJing Service hotline ：400-928-9288 www.wulian.cc/english/...
