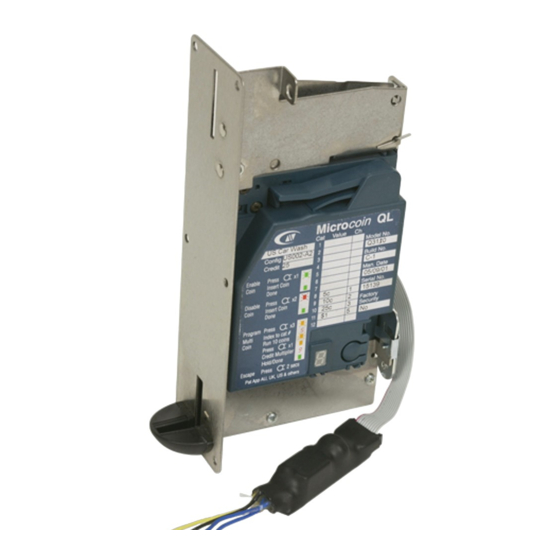

Microcoin QL
Microcoin "Quick Learn" is a powerful on-board programming facility which provides you with the ability to program your
Microcoin QL simply and efficiently without having to remove it from the machine.
Easy to follow instructions are located on the validator for your convenience.
An LED provides visual indications of your progress and also validator diagnostics feedback.
Quick Learn permits any coin or token to be programmed into the first 5 coin categories. You can set the value up to $99.99.
The value can also be changed independently under Change Value mode, press program button x 4.
INSTALLATION INSTRUCTIONS
1. Install or replace long drop bracket on faceplate.
2. Coin cup may need to be removed and re-attached in order to mount faceplate.
3. Place Microcoin QL into the bracket and secure with lockable brace.
4. The two holes on the lockable brace are designed to fit over the screw heads on the back of the QL coin mechanism.
WIRING INSTRUCTIONS
Note 1: The blue and green wires are interchangeable.
Note 2: Dixmor timer users should skip to step 4.
1. Connect the black and a blue or green wire to the 24 VAC.
2. Connect the yellow wire to the Neutral.
3. The other blue or green wire (see note 1) connects to the
timer coin pulse.
4. Dixmor timers only:
Connect black wire to 24 VAC.
Connect yellow and a blue or green wire to Neutral.
Connect the other blue or green wire to timer coin pulse.
Enable/Disable Coins
Any coin which is programmed into the Microcoin QL can
be turned on or off by simply selecting the enable or disable
feature and passing the coin through the validator.
The Microcoin QL automatically senses the coin and enables
or disables it accordingly.
Enable
Press program button x 1, LED flashes green
Roll coin to enable
LED steady green
Disable
Press program button x 2, LED flashes red
Roll coin to enable
LED steady green
4850 Nome St. Denver, CO 80239
Quick Learn Programming Guide
LED/DISPLAY
800.922.1313 Option #2
303.322.2232 x110
Carwash Token

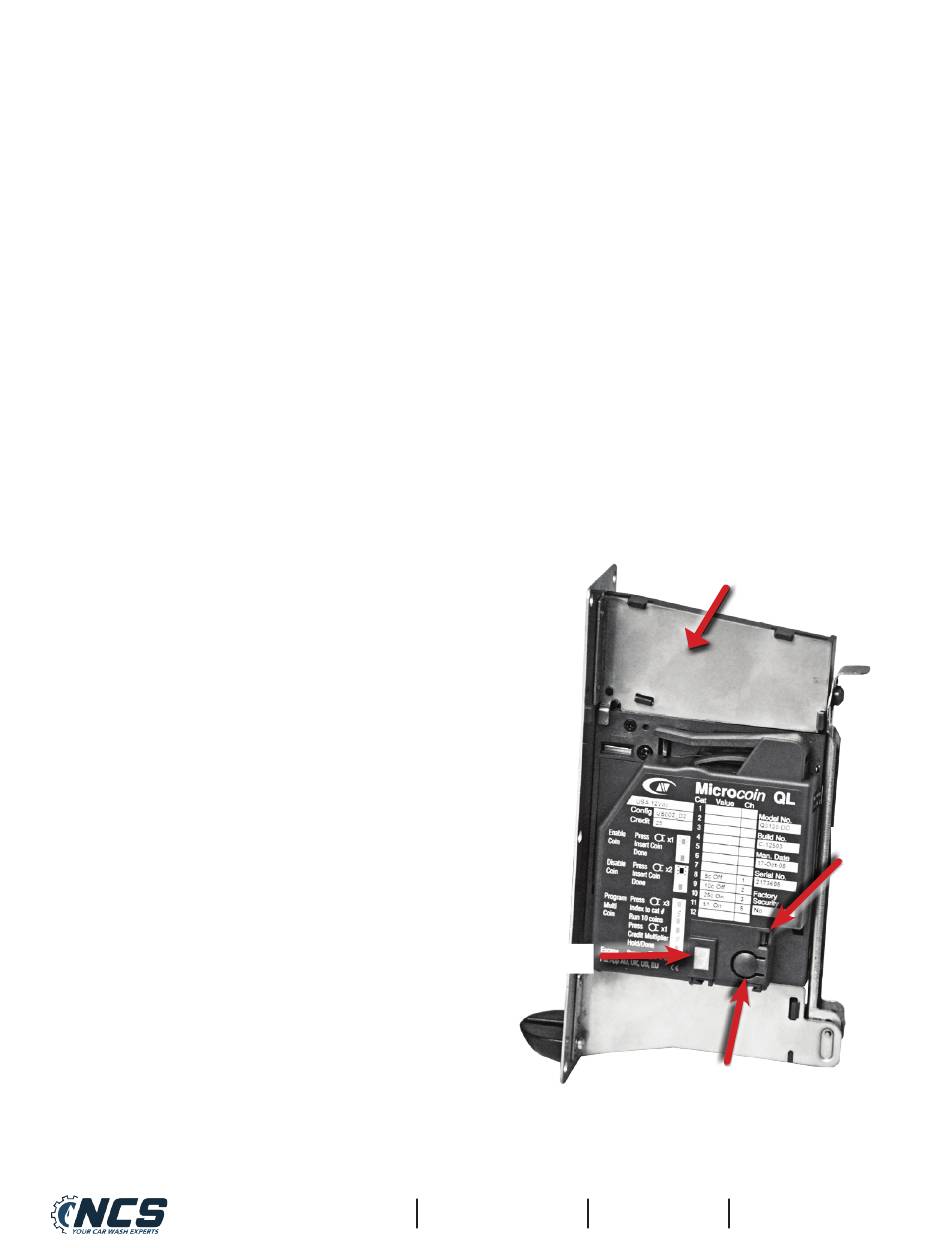

MOUNTING BRACKET
INDICATOR
PUSH/PROGRAM
BUTTON
