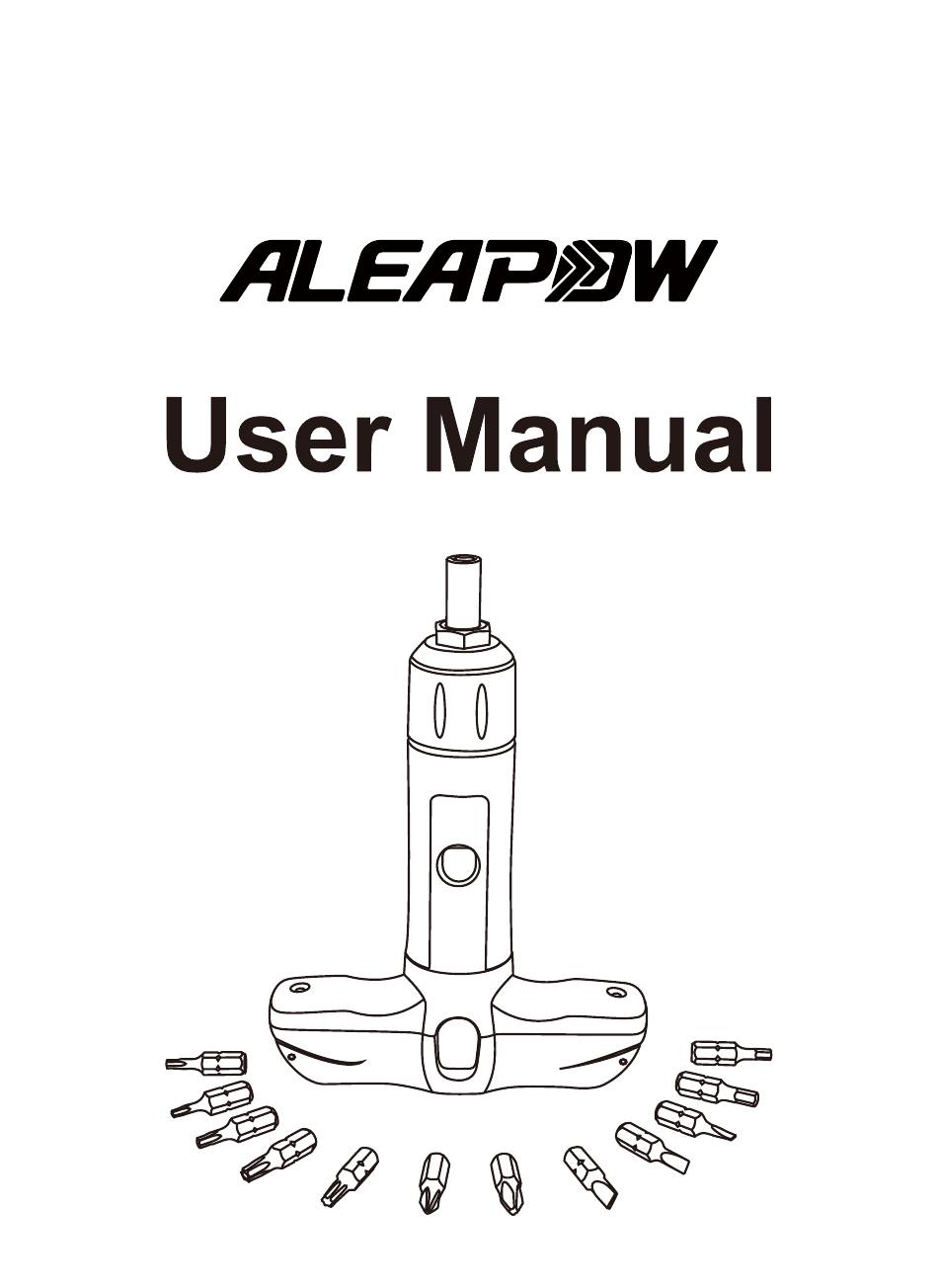

- Page 1 Torque Screwdriver Model:ATSD01...
- Page 2 SCREEN SCALE T-HANDLE TORQUE SCREWDRIVER Technical Data Torque Range Bit type Fine scale Length Width Height 2-8 N.M 1/4” 0.1 n.m 173 mm 122mm 37.5mm 15-75 IN.LB 1/4” 1 in.lb 7” 5” 1-1/2”...
- Page 3 NOTE Torque tools require regular calibration and servicing to assure its accuracy and long term use. Please make sure your device is calibrated and the operator has professional knowledge to set up the torque. Otherwise, please kindly send your torque tool back to your dealer to maintain its safety and accuracy.
- Page 4 Bits Storage Fine Increments Lock Button Torque Window...
- Page 5 Operation Manual 1.Pull the one of bits container 2.To adjust the torque, use one buckle to unlock the cover, then hand to hold the T-handle to pull up 6-bit seat pops up. There are total the lock button, use another hand 12 bits stored in one tool.
- Page 6 5.After torque adjusting, use one 6.Then you can operate the torque hand to hold the T-handle and pull screwdriver. When the pre-set up the lock button, another hand to torque value is reached, you will hold the torque tube and push up. hear audible “click”...
- Page 7 How to use this device Spin the screwdriver with clockwise direction Insert the screwdriver vertically when operating...
