AODELAN WTR-2 User Manual

Wireless timer remote shutter release
Hide thumbs

Advertisement

Table of Contents

WTR-2(R)
WTR-2(T) / TRS-1
Wireless Timer Remote Shutter Release
无线定时快门遥控器
Timer Remote Shutter Release
定时快门遥控器
User Manual / 使用说明书

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTR-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AODELAN WTR-2

Summary of Contents for AODELAN WTR-2

  • Page 1 WTR-2(R) WTR-2(T) / TRS-1 Wireless Timer Remote Shutter Release 无线定时快门遥控器 Timer Remote Shutter Release 定时快门遥控器 User Manual / 使用说明书...
  • Page 3 Thank you for purchasing an AODELAN product. AODELAN WTR-2 or TRS-1 will work as a timer and remote shutter release. Besides the full functions of shutter release, it also features multiply timer functions: delay timer, long exposure timer, interval timer as well as setting for the number of exposure;...

  • Page 4: For Your Safety

    Please read this user manual as well as the user manuals provided with your camera which works with WTR-2 or TRS-1 before use. For your safety Before using your product, please read the following safety precaution carefully to ensure correct and safe use.
  • Page 5 Transmitter Receiver Trade name: AODELAN Trade name: AODELAN Model number: WTR-2(T) Model number: WTR-2(R) FCC ID: 2AEJW-WTR2 M a n u f a c t u r e r : S h e n z h e n Manufacturer: Shenzhen Aodelan Aodelan Technology Co., Ltd.
  • Page 6 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio...
  • Page 7 BATTERIES ACCORDING TO THE INSTRUCTIONS. RED 2014/53/EU Declaration of Conformity EC Hereby, Shenzhen Aodelan Technology Co., Ltd. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product can be used across EU member states.

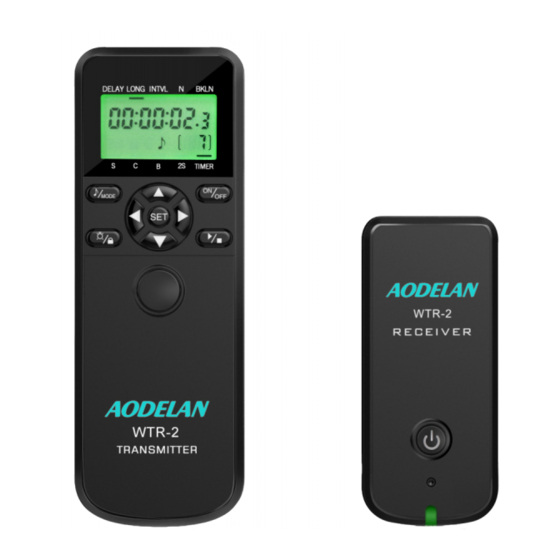

  • Page 8 Parts Timer WTR-2(T) or TRS-1 1. Cable Port 2. LCD Screen 3. Sound / Mode Button 4. Backlight / Lock Button 5. Shutter Button 6. Function LED 7. Power Button 8. Set Button 9. Play / Stop Button 10. Adjustment buttons 11.
  • Page 9 2. To turn off the unit – press and hold the Power Button for 2 seconds. 3. The Timer WTR-2(T) or TRS-1 will beep and images will appear on the LCD screen when the unit powers 4. The Receiver WTR-2(R)’s LED will flash green then red when the unit powers on.
  • Page 10 1. The Wireless Signal Strength Indicator on the LCD shows the signal strength between the Timer WTR- 2(T) and Receiver WTR-2(R) if the WTR-2 system is being used wirelessly. 2. Use this as an indication of range – when the Timer and Receiver are within range the three bar icon will appear on the LCD.
  • Page 11 Function LED on WTR-2(T) / WTR-2(R) or TRS-1 The Function LED on the Timer WTR-2(T) or TRS-1 will: 1. Turn green when focusing. 2. Turn red when a photo is taken. The Function LED on the Receiver WTR-2(R) will: 1. Flash green when the Receiver is powered on.

  • Page 12: Using The Timer

    Using the Timer Aodelan WTR-2 or TRS-1 has two modes: Shutter release modes and Timer mode. [ Note ] Note: The Wireless Signal Strength Indicator is not available on TRS-1’s LCD. Changing modes on WTR-2(T) or TRS-1 Press the Sound/Mode Button to cycle between modes.
  • Page 13 B: Bulb. A half-press of the Shutter Button will focus; a full press will open the shutter and lock it. The LCD screen on the timer will begin to time the exposure. The LED on the Timer and Receiver will light red. To stop the exposure, fully press the Shutter Button to close the shutter.

  • Page 14: Timer Mode

    Timer Mode Using Timer mode 1. To access the timer mode press the Sound/Mode Button until Timer is selected on the LCD. 2. With Timer selected you have access to the following timer functions: DELAY: Delayed Exposure. A self-timer before a photo is taken.
  • Page 15 The number of exposures can be set from 1 to 7. 6. Pressing the Play / Stop Button will start the program. The AODELAN Timer will double the exposure time (one stop) set under the LONG setting for each of the number of frames set under the N setting.
  • Page 16 - 0.5 second - needs to be entered on the Timer WTR-2(T) or TRS-1. Images will be recorded based on the first exposure time entered and counted forward. Unlike bracketed exposures on a camera, AODELAN WTR-2 or TRS-1 will not shoot faster then slower images. • 14 •...
  • Page 17 Setting the Smart Code The frequency of transmitter and receiver will be pre-set in production. You can use the timer instantly. To reset the smart code, please follow the procedures: 1. Turn on the transmitter and receiver. 2. Use a needle-like object to press into the code setting button on receiver, which will cause the LED on receiver to flash red and green light alternately for 25s.

  • Page 18: Technical Specifications

    Technical Specifications Batteries: 2 x AAA batteries Storage Temperature: -10 °C to 60 °C Standby Timer: 48 Hours Timer WTR-2(T) Frequency: 2.4 GHz Range: 60 meters Working voltage: 3.0 V Size: Approx. 130 x 46 x 22 mm (5.1 x 1.8 x 0.9 in) Weight: Approx.
  • Page 19 深圳市奥德兰科技有限公司 Shenzhen Aodelan Technology Co., Ltd. Printed in China...

This manual is also suitable for:

Wtr-2tTrs-1Wtr-2r
