Summary of Contents for Forno Voce CF01566

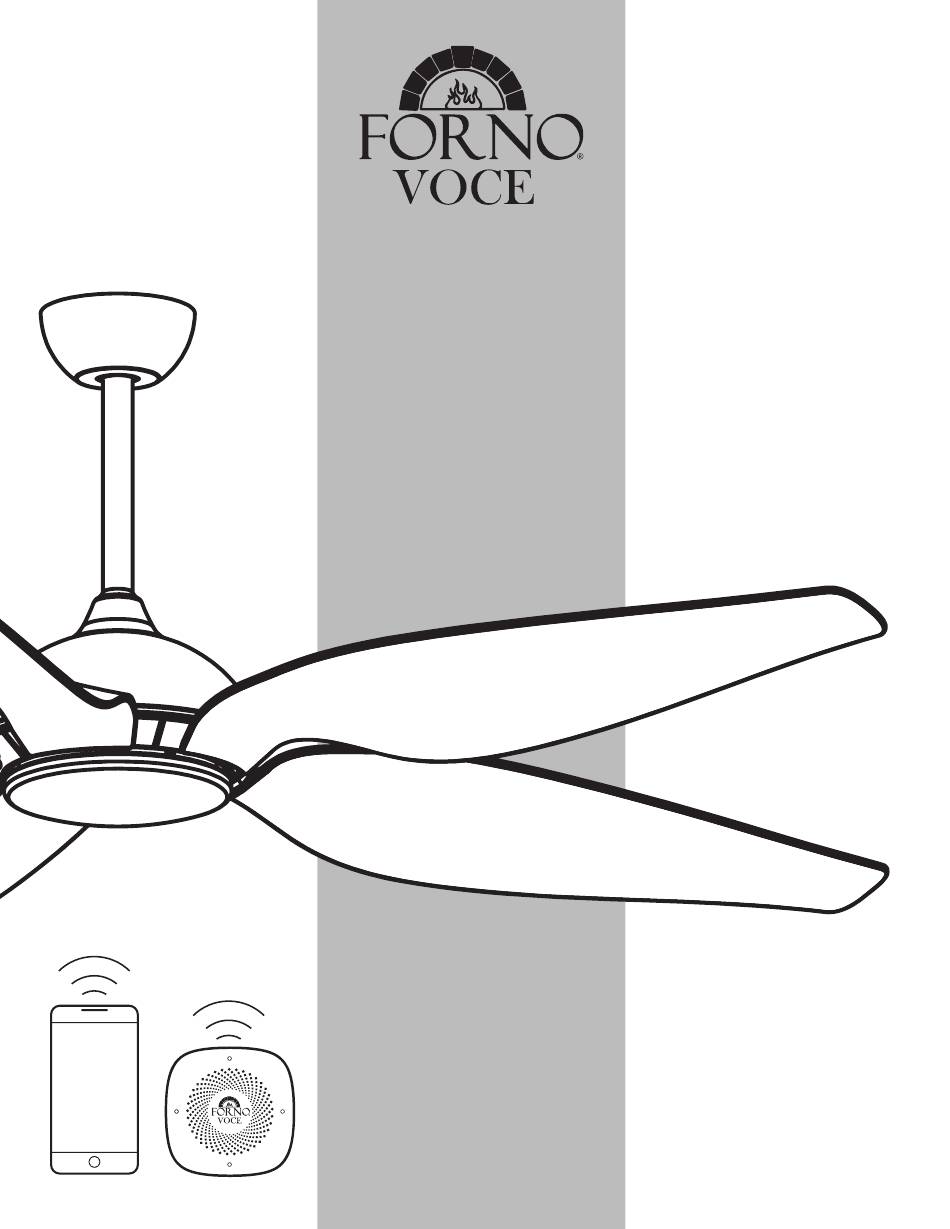

- Page 1 CF01566 VOICE ACTIVATED CEILING FAN INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Installing the Light Getting to Know Your Remote Control Checking Your Installation Thank you for purchasing our FORNO VOCE ceiling fan that comes packed with exclusive features: c. Eco, will even out your room temperature 1. Bluetooth Voce system. Take full control of your ceiling fan using just your voice. -
Page 3: Before You Begin
BEFORE YOU BEGIN READ CAREFULLY AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: • Use this unit only in the manner intended by the manufacturer. If you have question, contact the manufacturer. -
Page 4: Parts List
Please open your box very carefully and take out all the components. Parts List Part # Items Drawing Description Quantity SCF015BRA Mounting Bracket (1) with SCF015SCR-CH, BL, BB 2 Screws (2) Pack with 3 Wire Connectors, 2 Metallic SCF002CON Washers and 4 Spring Washers SCF01566REC Remote Control Receiver SCF015CAN-WT, BL,... -
Page 5: Exploded View
You should have received all the parts in the Parts List. Exploded View Tools Required If you find any part missing Net Weight: 8.2Kg (18.0lbs) please call: 1-866-231-8893 Or contact us at: Stop Ladder Pliers Measuring Tape mysupport@fornoworld.com Please do not return this fan Suitable For Use in to the store before calling Damp Locations... -
Page 6: Important Safeguards And Warnings
WARNING: To avoid risk of electrical shock, before attempting installation turn off the electricity at the main electrical box or fuse box. WARNING: Any electrical installation should be done or approved by licensed electrician. WARNING: To avoid risk of electrical shock, this fan should not be installed with any dimmer or other control device. -
Page 7: Installation Preparation
Installation Preparation WARNING: Failure to disconnect In your panel, turn OFF the switches power supply to the box may result in or fuses that feed electricity to the serious injury. Turn off circuit breakers electric box you will be using to OF F OF F or take out fuses now. -
Page 8: Installing The Down Rod
Installing the Down Rod 1. Remove the Clip (7) 4. Thread the wires and and Pin (8) from your Safety Cable that Down Rod (6). Save comes from the motor Down Rod the clip and the pin. assembly through the Down Rod. -
Page 9: Electrical Installation
Electrical Installation WARNING: Failure to disconnect White Supply Wire Ground power supply to the box may result in (green or bare) serious injury. Double check now that Black Supply Wire the circuit breakers to the box are off. Insert the 3-piece male connector from Ground (green or the Down Rod to receiver’s 3-piece... -
Page 10: Installing The Blades
Installing the Blades Pre-install a blade bracket (11) using 3 Blade Screws and washers (14) for each unit. Repeat for the other 4 blades. HAND TIGHTEN ONLY. DO NOT USE POWER TOOL TO TIGHTEN BLADE SCREWS. Take 2 Bracket Screws from Pack of screws (12). Align blade bracket arm screw holes with 2 holes in the motor hub through the window on the lower part of the Motor Assembly. -
Page 11: Installing The Light
Installing the Light Remove one of the 3 screws in the underside of the Motor Assembly. Loosen the other 2 screws. Connect the wires from the Lamp Base with the wires in the lower part of the Motor Assembly using the pre-installed electric connexions. -
Page 12: Getting To Know Your Remote Control
Getting to Know Your Remote Control ON/OFF Switch: ECO Mode: If fan is OFF and lights are OFF, it turns fan ON in Sets fan in reverse mode for speed 3, light at medium. If pressed again, it winter energy savings turns everything OFF Very High Speed* Very Low Speed*... -
Page 13: Installing The Voice Command Centre (Vcc)
“FORNO Home” will be the wake-up call for this VCC from now on. It will say “Welcome to FORNO VOCE World to wake me up you can call Forno Dining”. If FORNO Dining is the room you selected. “FORNO Dining” will be the wake-up call for this VCC from now on. -
Page 14: Voice Commands
Before you Begin Setting Up the App The first phone which registers and pairs with the VCC will become the Main User of the FORNO World App. Keep in mind that there is ONLY ONE Main User. Please find below a level of authority chart between the users. -
Page 15: Setting Up The App
Setting Up the App Go to the Apple or Google App store. Search for “FORNO World”. You will be able to download a free App that will allow you to fully control your fan (and other FORNO devices that you may purchase). The QR code below will take to the corresponding site. Download the App and register your product following the App instructions. -
Page 16: Communication Device Cautions
Communication Device Cautions The FCC and the IC require for us to place the following warnings in the manuals of every communication device that is tested to meet their standards: FCC Compliance Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 17: Trouble Shooting
Trouble Shooting Problem # Solution Check circuit breakers or fuses that supply power to the area Check that the wall switch that provides power to the fan is on Fan Does Ensure that your remote is under 33’ (10m) away from your fan or closer if objects are in the way Not Start Check batteries in your remote control If you have done all of the above disconnect the circuit breakers or fuses that provide power to the area and... -
Page 18: Performance And Energy Information
Performance and Energy Information Estimated Airflow Yearly Energy Cost 5,681 Cubic Feet Per Minute • The higher the airflow, the more air the fan will move • Airflow Efficiency: 265 Cubic Cost Range of Similar Models (19” – 84”) Feet Per Minute Per Watt •... -
Page 19: Warranty
Warranty CTM Maison Elite Inc. grants this limited warranty to the original purchaser of this ceiling fan from the date of purchase. Proof of purchase is required when requesting any warranty assistance. Motor, Limited Lifetime: If any part of your ceiling fan motor fails during your ownership of the fan due to a defect in material or workmanship, as determined solely by CTM Maison Elite Inc., we will provide you with a replacement fan motor. -
Page 20: Customer Care
Customer Care Thank you for purchasing a FORNO product. Please read the entire instruction manual before operating your new appliance for the first time. Whether you are an occasional user or an expert, it will be beneficial to familiarize yourself with the safety practices, features, operation and care recommendations of your appliance.
