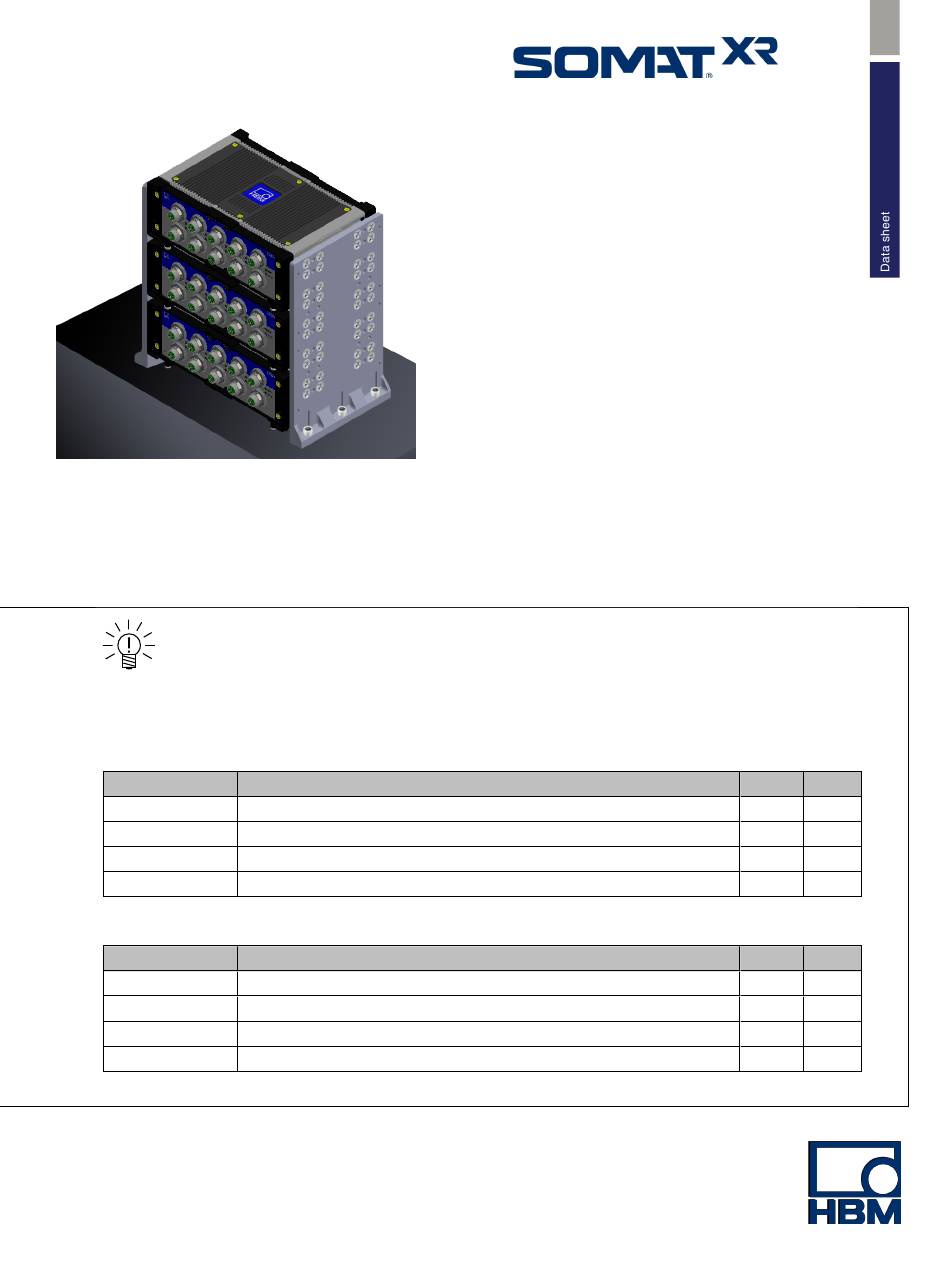

SomatXR 1-CASEMOUNT2-2 Quick Start Manual

Hide thumbs

NOTE

HBM recommends mounting modules individually in high vibration environments. Individually moun-

ted SomatXR modules are vibration- and shock-proof according to MIL-STD-202G. Stacked upper

modules in high vibration environments may exceed vibration and shock specifications. Make sure

mounted modules will not exceed vibration and shock specifications (see module data sheets).

1-CASEMOUNT2-2 kit contents

Part Number

Description

SO-227-1001727

M5 18-8 SS Phillips Flat Head Screw

SO-227-1001804

M6 18-8 SS, Socket Cap 25 mm

1-CASELINK-RUG-2 Fastener CASELINK-RUG (Four (4) caselinks and sixteen (16) set screws per package)

SO-095-1001428

Bracket, 2 Unit Machined Mounting Bracket

1-CASEMOUNT3-2 kit contents

Part Number

Description

SO-227-1001727

M5 18-8 SS Phillips Flat Head Screw

SO-227-1001804

M6 18-8 SS, Socket Cap, 25 mm

1-CASELINK-RUG-2 Fastener CASELINK-RUG (Four (4) caselinks and sixteen (16) set screws per package)

SO-095-1001427

Bracket, 3 Unit Machined Mounting Bracket

B04547_02_E00_00 HBM: public

1-CASEMOUNT2-2 and

1-CASEMOUNT3-2

The casemount kits enable SomatXR

modules to be mounted on any surface.

– Three kits are available for mounting

stacked SomatXR modules

– Use 1-CASEMOUNT2-2 to mount one or

two modules

– Use 1-CASEMOUNT3-2 to mount two or

three modules

– These brackets can be used in conjunction

with the 1-CASEMOUNT-UMB-2 kit

– All components in these kits are ROHS

compliant

Quantity Graphic

D, E

Quantity Graphic

D, E

Table of Contents

Need help?

Do you have a question about the 1-CASEMOUNT2-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for SomatXR 1-CASEMOUNT2-2

Page 1 NOTE HBM recommends mounting modules individually in high vibration environments. Individually moun- ted SomatXR modules are vibration- and shock-proof according to MIL-STD-202G. Stacked upper modules in high vibration environments may exceed vibration and shock specifications. Make sure mounted modules will not exceed vibration and shock specifications (see module data sheets).
Page 2 3. A set of four (4) caselinks can hold two (2) stacked modules together. Kit 1-CASEMOUNT2-2 has 1-CASELINK-RUG-2 for two (2) modules. Kit 1-CASEMOUNT3-2 has 1-CASELINK-RUG-2 for three (3) modules. 4. Connect a bracket (F or G) to the caselinks using M5 flat screws (A), serviceable (blue) threadlock and a #2 Phillips screw driver.
