K&M CIH Magnum 8900 Installation Manual

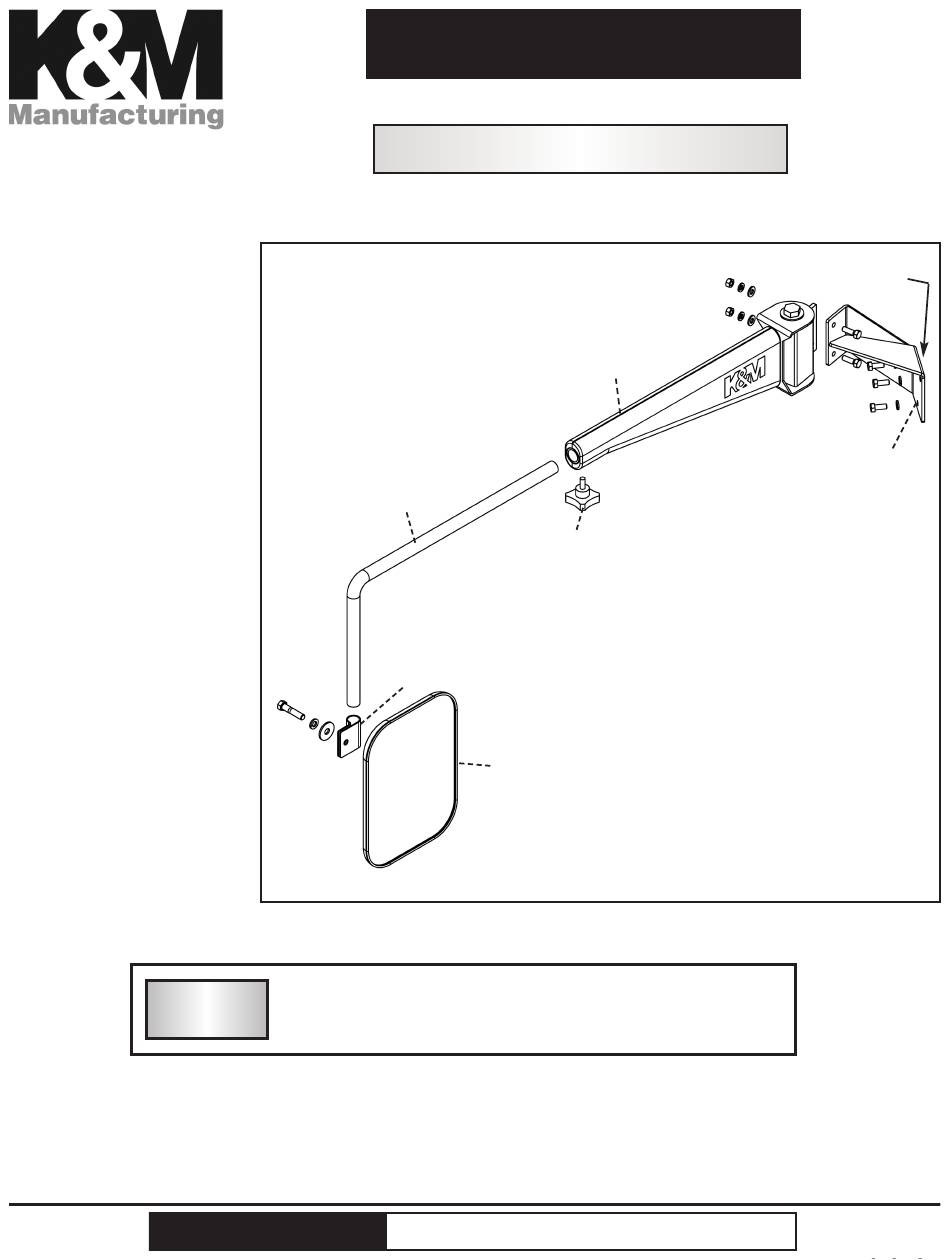

1. Fasten the mirror
mounting bracket to
the cab mirror bracket
with three 8mm x
20mm bolts and lock
washers.
2. Fasten the mirror
arm assembly to the
mounting bracket
with two 5/16" x 1"
full thread bolts, flat
washers, lock washers
and nuts.
3. Insert the small tube
into the mirror arm
assembly and secure
with the plastic mirror
knob.
4. Fasten the mirror
head to the small
pipe with the 2"
clamp and included
hardware.
Note!
Customer Support
Installation Guide
CIH Magnum 8900 Mirror - Left Side
CIH Magnum 8900 Series
Small Tube
PN: 10622
2" Clamp
PN: 10613
Mirror Head
PN: 3110
Do not overtighten the plastic
mirror knob in step 3.
1.800.328.1752 / www.tractorseats.com
Fits:
Mirror Arm
Assembly
PN: 12171
Plastic
Mirror Knob
PN: 85108
(PN: 3130)
Fasten to
cab mirror
bracket.
Mounting
Bracket
PN: 11617
004 CIH 3130 001
