Unitedlink UniSign-3812A Manual

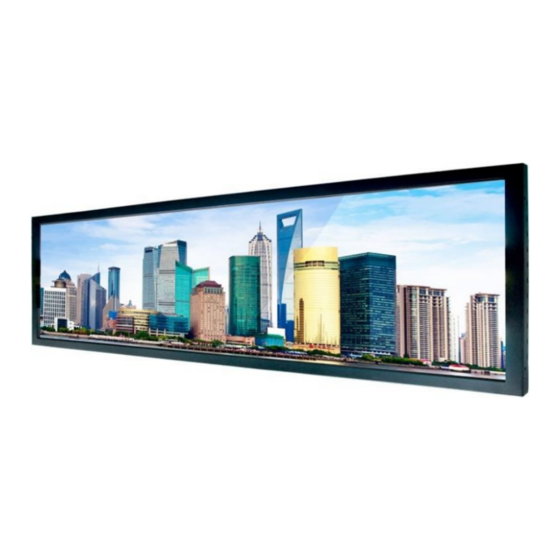

38” extreme wide tft lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UniSign-3812A
38"Extreme Wide TFT LCD Monitor
V 1.4
Customer
Approved by
Checked by
Prepared by
Approved
United Link Technology Co. ,Ltd
3F-1, No.433, Rui Guang Rd., Neihu Dist.,
Taipei City 114, Taiwan(ROC)
+886-2-26588180
DOC. NO.：
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniSign-3812A and is the answer not in the manual?

Questions and answers

Related Manuals for Unitedlink UniSign-3812A

Summary of Contents for Unitedlink UniSign-3812A

  • Page 1 UniSign-3812A 38”Extreme Wide TFT LCD Monitor V 1.4 Customer Approved by Checked by Prepared by Approved United Link Technology Co. ,Ltd 3F-1, No.433, Rui Guang Rd., Neihu Dist., Taipei City 114, Taiwan(ROC) +886-2-26588180 DOC. NO.： Page 1...

  • Page 2: Revise History

    Revise History Version Date Description Note 2013/11/20 Initial Version V1.0a 2013/11/18 Modify 6.4 V1.0a 2014/1/23 Modify 3.2 Change CR V1.1 2014/2/24 Item 1.3 Video input correct V1.2 2014/5/8 Add DOC. NO. V1.3 2014/10/30 Modify format V1.4 2015/10/8 Modify format DOC.
  • Page 3 Index 1. General Description ..................4 1.1 Overview ..................... 4 1.2 Features ...................... 4 1.3 Application ....................4 1.4 General Specifications ................. 5 1.5 Absolute Ranges of Environment ..............6 2. Electrical Specifications ................7 2.1 Electrical Block Diagram ................7 2.2 Connecter Pin Assignment ................

  • Page 4: General Description

    1. General Description 1.1 Overview This is a 38” ultra-wide color TFT-LCD display. With a built-in A/D board, the product supports VGA,DVI and HDMI input ports. In addition, it has 800nits brightness to support more environment applications. 1.2 Features Resolution：1920x538 Aspect Ratio：16:4.5 Display Color：8 bits , 16.7M Operation mode for display：Normally Black...

  • Page 5: General Specifications

    1.4 General Specifications Model UniSign-3812A Type 38" color TFT active matrix, wide LCD Display Area 930.24 (H) x 260.66 (V) Optimum Resolution 1920x538 Contrast Ratio 5000:1 (typ.) Viewing Angles 176(H) 176(V) Response Time 6.5 ms (typ.) Backlight Brightness 800 nits (typ.) Aspect Ratio 16:4.5...
  • Page 6 1.5 Absolute Ranges of Environment DOC. NO.： Page 6...

  • Page 7: Electrical Specifications

    2. Electrical Specifications 2.1 Electrical Block Diagram 2.2 Connecter Pin Assignment DOC. NO.： Page 7...
  • Page 8 2.2.1 RS-232 Pin No. Function Receive data (RD) Transmit data (TD) Ground Communication Setting : -Baud Rate Select : 9600bps(fixed) -Data bits : 8bits(fixed) -Parity : None(fixed) -Stop Bits : 1(fixed) DOC. NO.： Page 8...
  • Page 9 RS-232 protocol There are set functions and get functions for the RS-232 remote control. Set Function After receiving a set function command, the monitor will reply an acknowledge signal. Set Command RS-232 Monitor Acknowledge The supported commands are: Value Range Supported Remark Command Command...
  • Page 10 The Set Function format (from PC to Monitor) is Name Length Command Value1 Value2 Value3 Byte Count 1 Byte 1 Byte 1 Byte 1 Byte 1 Byte 1 Byte Bytes order And the acknowledge signals are defined as: Acknowledge Signal Value 1 Byte 1 Byte...
  • Page 11 Get Function Get Command RS-232 Monitor Reply The supported commands are: Get Function Send Value Response Value Range Command Command Range Code(ASCII) Code(Hex) Contrast 0000~0100 Brightness 0000~0100 Sharpness 0000~0100 0000~0100 Input Source 0000 : VGA Power Status 0000 : Standby 0001 : Power On Picture Size 0000 : Full...
  • Page 12 And the reply signals are defined as: Receive a valid Name Length Value1 Value2 Value3 Value4 command Byte Count 1 Byte 1 Byte 1 Byte 1 Byte 1 Byte 1 Byte Bytes order Receive a non- Name valid Byte Count 1 Byte 1 Byte command...
  • Page 13 2.2.2 D-sub Pin No. Pin Function Pin No. Pin Function Red video input Ground Green video input No connection Blue video input Ground Horizontal sync Red video ground Vertical sync Green video ground Blue video ground 2.2.3 DVI-D Pin No. Pin Function Pin No.
  • Page 14 2.2.4 HDMI Pin No. Pin Function Pin No. Pin Function TMDS Data2+ TMDS Clock Shield TMDS Data2 Shield TMDS Clock– TMDS Data2– TMDS Data1+ Reserved TMDS Data1 Shield TMDS Data1– TMDS Data0+ DDC/CEC Ground TMDS Data0 Shield +5 V Power TMDS Data0–...

  • Page 15: Optical Specification

    3. Optical Specification 3.1 Test Conditions Optical characteristics are determined after the monitor has been ‘ON’ and stable for more than 5 minutes in a general environment at 25°C. The values specified are at an approximate distance 0 cm from the LCD surface at a viewing angle of φ...
  • Page 16 4. The variation in surface luminance, , is defined as δ WHITE(9P) δ = Max(L ,…,L ) / Min(L ,…,L WHITE(9P) 5. Response time Tγ is the average time required for display transition by switching the input signal for five luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize. 6.

  • Page 17: Mechanical Specifications

    4. Mechanical Specifications DOC. NO.： Page 17...

  • Page 18: Handling Precautions

    5. Precautions 5.1 Handling Precautions (1) Please do not stack the product without buffers. (2) Please pick it up from the package in a clean area. The dust or oil may cause electrical short or damage the polarizer. (3) Please wipe the screen surface with a clean, soft, fluff-less cloth. (4) Please do not press or scratch the product surface with an object which is harder than a HB pencil.

  • Page 19: Main Function

    6. Main Function and UI Interface 6.1 Main Function Input Video Input VGA/DVI/HDMI In Video Output Control Input/ Output Keypad and Remote Controller Speaker Amplifier 2W x 2 Input Signal TV/Video Comp. Connector Analog Digital DVI, HDMI Power 4 pin plug Controls Panel Surface Brightness...

  • Page 20: Supported Timing Mode

    6.2 Supported Timing Mode Timing Mode Resolution 640x480@60Hz 640x480@72Hz 640x480@75Hz SVGA 800x600@56Hz 800x600@60Hz 800x600@72Hz 800x600@75Hz 1024x768@60Hz 1024x768@70Hz 1024x768@75Hz SXGA 1152x864@75Hz 1280x1024@60Hz 1280x1024@75Hz 1280x960@60Hz WXGA 1366x768@60Hz 1440x900@60Hz WSXGA+ 1680x1050@60Hz NTSC 480i NTSC 480p NTSC 720p Full HD 1080i 1080p DOC. NO.： Page 20...
  • Page 21 6.3 Control Keypad Function Supported ▲ ● ▼ ● Down  ● Right / Set  ● Lift ●  Menu / Quit ● Source ● Power DOC. NO.： Page 21...

  • Page 22: Remote Controller

    Remote Controller Function Power On/Off Select VGA input Select DVI input HDMI Select HMDI input ▲ 1.Up 2.To Quick Change Display Portion Setting( Note1) ▼ 1.Down 2.To Quick Change Display Portion Setting( Note1)  Right/Set  Left Volume Increase Volume Decrease INPUTS To enter the input select menu.

  • Page 23: Osd Function

    6.4 OSD Function 6.4.1 Image Menu The OSD menu will be slightly different between that of PC input(VGA/DVI) and Video (HDMI) input. 6.4.1 .1 Image Menu for PC input Item Description Contrast Contrast Adjustment, you can select the value from 0~100. Brightness Color Brightness Adjustment, you can select the value from 0~100.
  • Page 24 6.4.1 .2 Image Menu for Video input Item Description Contrast Contrast Adjustment, you can select the value from 0~100. Brightness Color Brightness Adjustment, you can select the value from 0~100. To adjust color hue, you can select the value from 0~100. Saturation To adjust color saturation, you can select the value from 0~100.
  • Page 25 6.4.2 Sound Menu Item Description Bass To select sound bass. Treble To select sound treble. Balance To select sound balance. Sound Mode To select sound mode for Movie, there are Music, User, Standard modes to select. DOC. NO.： Page 25...
  • Page 26 6.4.3 System OSD Menu Item Description Sleep Timer To turn off the sleep timer or turn on and set the sleep timer as 15,30,45,60 minutes English,繁體,簡體 OSD Language To select the font language on the OSD, there are “ ” items to select.
  • Page 27 6.4.4 Screen OSD Menu (Only in VGA input) Item Description H-Position To move the video image horizontally. V-Position To move the video image vertically. Clock Adjust the Clock timing to synchronize the video signal. Phase Adjust phase to synchronize the video signal. DOC.
  • Page 28 7. Packing 7.1 Product Label Definition(65*65mm) Product Label Position DOC. NO.： Page 28...
  • Page 29 7.2 Carton Label Definition(65*65mm) Carton Label Position DOC. NO.： Page 29...
  • Page 30 7.3 Cartons Specifications DOC. NO.： Page 30...
  • Page 31 7.4 Carton Packing DOC. NO.： Page 31...
  • Page 32 7.5 Pallet Specifications DOC. NO.： Page 32...

  • Page 33: Appendix 1 Display Position

    Appendix 1 Display Position Display Scale Input Signal Display Position Compress to 16:4.5 Full Display top 16:4.5 area Display middle 16:4.5 area Zoom Display bottom 16:4.5 area DOC. NO.： Page 33...

  • Page 34: Appendix 2 Accessory

    Appendix 2 Accessory Remote control（32TVNTSCRC-0） Battery_No.4_1.5V VGA Cable（CABLE_ACV0103A-0_VGA_15P-15P_2-CORE） Power cord（CABLE_201501SVT-0_POW） Adaptor（ADAPTOR_24V-5A_4Pin_DPS-120QBA） DOC. NO.： Page 34...
