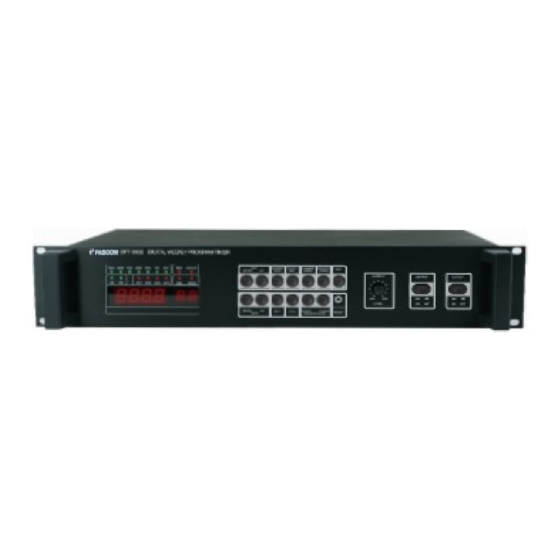

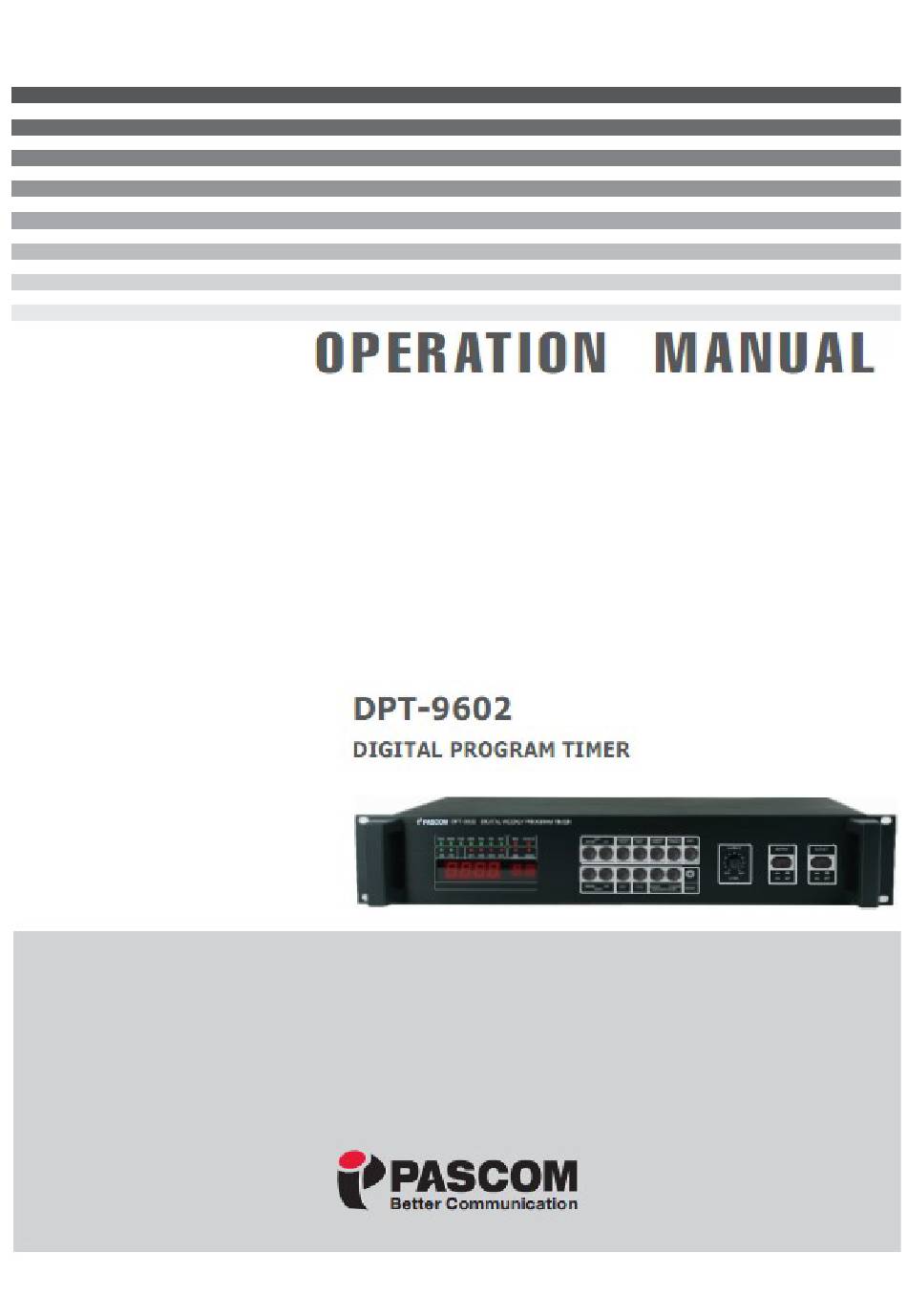

Summary of Contents for pascom DPT-9602
- Page 2 Unpacking Unpacking This device is easy to install and use, but still we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. As with most electronic devices, we strongly recommend you to retain the original packaging.
-
Page 3: Installation
Installation Installation Environment Never place this product in any environment which could alter its performance or reduce its service life. Such environments usually include high levels of heat, dust, moisture, and vibration. Important safety Instructions 1. Read these instructions and follow as written. 2. - Page 4 Internal recording function enables recording & playing of up to 180 seconds of sound, even without external Voice File ③ Compatibility Voice file of another manufacturer is also compatible with DPT-9602. Voice file of another manufacturer is also compatible with DPT-9602. ④ Type of communication : RS485...
-
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. TIME SETUP -Press TIME SETUP button in order to set time. -Press and hold TIME UP/DOWN button for 1 second, and time on screen passes quickly. 1)When screen shows desired current time, press MEMORY/PLAY. 1)When screen shows desired current time, press MEMORY/PLAY. On screen, “Set”... - Page 6 FRONT PANEL FRONT PANEL 3. MELODY MEMORY - Press MELODY/VOICE button, and make sure LED turns on. Then, adjust Melody number and output channel by MELODY UP/DOWN, DAY UP/DOWN, TIME UP/DOWN buttons. - Save and exit by MEMORY/PLAY button. * MELODY MEMORY ADJUSTMENT * 1) Set Day and Time by DAY UP/DOWN and TIME UP/DOWN buttons.
-
Page 7: Voice Memory
FRONT PANEL FRONT PANEL 4. VOICE MEMORY - Press MELODY/VOICE button, and make sure VOICE LED turns on. Then, adjust day and time, and also set VOICE number and output channel, by VOICE UP/DOWN, DAY UP/DOWN, TIME UP/DOWN buttons. - Save and exit by MEMORY/PLAY button. * VOICE MEMORY ADJUSTMENT * 1) Set Day and Time by DAY UP/DOWN and TIME UP/DOWN buttons. - Page 8 FRONT PANEL FRONT PANEL 5. REC-PLAY MEMORY - Press REC button, and make sure REC LED turns on. Then, adjust day and time, and also set output channel, by VOICE UP/DOWN, DAY UP/DOWN, TIME UP/DOWN buttons. - Save and exit by MEMORY/PLAY button * REC-PLAY ADJUSTMENT * 1) Set Day and Time by DAY UP/DOWN and TIME UP/DOWN buttons.
- Page 9 FRONT PANEL FRONT PANEL 6. MELODY PLAY - Press MELODY/VOICE button, and make sure MELODY LED is on. Then, adjust melody number and output channel, by MELODY UP/DOWN and CHANNEL/WEEK buttons. - Then, press and hold MEMORY/PLAY button for 2 seconds in order to play MELODY. * HOW TO MELODY PLAY * 1) Press MELODY/VOICE button and make sure MELODY LED is on.
-
Page 10: Adjustment Mode
FRONT PANEL FRONT PANEL 7. VOICE PLAY (When SV-9600 is interlocked) - Press MELODY/VOICE button twice, and make sure VOICE LED is on. Then, adjust voice number and output channel, by MELODY UP/DOWN and CHANNEL/WEEK buttons. - Then, press and hold MEMORY/PLAY button for 2 seconds in order to play VOICE. * HOW TO VOICE PLAY * 1) Press MELODY/VOICE button twice and make sure VOICE LED is on. - Page 11 FRONT PANEL FRONT PANEL 8. REC-PLAY - Press REC button, and make sure REC LED is on. Then, adjust output channel by CHANNEL/WEEK buttons. - Then, press and hold MEMORY/PLAY button for 2 seconds in order to play REC- PLAY. * HOW TO REC-PLAY * 1) Press REC button and make sure RED LED is on.
- Page 12 FRONT PANEL FRONT PANEL 9. RECORDING -Press REC button, and make sure REC LED is on. Then, press and hold REC button for 2 seconds. Then, you can start recording. * HOW TO RECORD * 1) Press REC button and make sure RED LED is on. ※...
- Page 13 FRONT PANEL FRONT PANEL 11. AC POWER ON/OFF MEMORY - Press MEMORY/PLAY button while AC OUTLET SWITCH is pressed in, in order to start AC POWER ON/OFF ADJUSTMENT. - Set day and time of AC POWER ON by DAY UP/DOWN and TIME UP/DOWN buttons. - Save and exit by MEMORY/PLAY button.
-
Page 14: Delete One
FRONT PANEL FRONT PANEL 12. DELETE ONE - You can delete previously set MELODY, VIOCE, AC ON MEMORY. * HOW TO DELETE ONE * 1) Press and hold CLEAR/EXIT for 2 seconds and make sure CLR LED flashes. 2) Select day and time by DAY UP/DOWN and TIME UP/DOWN button. 3) When previously set program shows on the day and time, delete by pressing “CLEAR/EXIT”... -
Page 15: Weekly Program Display
FRONT PANEL FRONT PANEL 14. WEEKLY PROGRAM DISPLAY -You can check all saved program for the week. * HOW TO DISPLAY WEEKLY PROGRAM * 1)Press CHANNEL/WEEK button, and all DAY LED will turn on, and current DAY LED will flash. 2)Press CHANNEL/WEEK button once more in order to display WEEKLY PROGRAM. - Page 16 FRONT PANEL FRONT PANEL 16. SAVED PROGRAM MODIFICATION You can check and modify previously saved program(s). * HOW TO MODIFY SAVED PROGRAM * 1)Select day and time by DAY UP/DOWN and TIME UP/DOWN button. Previously saved program DATA shows, if there is any. 3.
-
Page 17: Time Calibration
FRONT PANEL FRONT PANEL 18. TIME CALIBRATION You can adjust current time. * HOW TO CALIBRATE CURRENT TIME * 1)Press and hold TIME UP/DOWN buttons for 2 seconds, and “C_+/C_-” will show on screen. 2)Every time you press TIME UP/DOWN, + and – take turns showing. (TOGGLE) + means faster time, - means slower time. -
Page 18: Back Panel
2. POWER INPUT: 220 V/50 Hz 3. DC 24 V TERMINAL 4. AC POWER OUTPUT / EXTERNAL POWER OUTPUT DPT-9602 can supply AC power to externally connected device. 5. F / W UPGRADE TERMINAL Used for firmware upgrade 6. EXTERNAL(REMOTE) DEVICE TERMINAL 7. -
Page 19: Frequently Asked Questions
Frequently Asked Questions Frequently Asked Questions Symptom Cause Solution AC power cord is off the Make sure with AC/DC plug. power source. LED is off DC power cable is off. Make sure with polarity. Wrong current time Calibrate current time. Output doesn’t work as Wrong DATA time Check program DATA... -
Page 20: Service And Warranty
Warranty terms and conditions may depend on each local distributor and vary by country. Also may not be the same for all products. To obtain specific by country. Also may not be the same for all products. To obtain specific warranty information, contact PASCOM directly in Korea. -
Page 21: Specification
SPECIFICATION SPECIFICATION ■ ELECTRIC RS-485, 2400 bps 1. COMMUNICATION/TRANSMITTING SPEED---------------------------- DMC-9600 2. CONTROL RANGE-------------------------------------------------------------- AUDIO INPUT 4 CH, VOICE FILE 1 CH 3. EXTERNAL INPUT--------------------------------- FND, LED 4. DISPLAY---------------------------------------------------------------------------- 5. INTERNAL SOURCE AND PLAYTIME 2 SEC MELODY 3 SEC MELODY 5 SEC MELODY 7 SEC MELODY 7 SEC MELODY(2) - Page 22 MADE IN KOREA www.ipascom.com...
