Summary of Contents for Renova movicart MCE 400

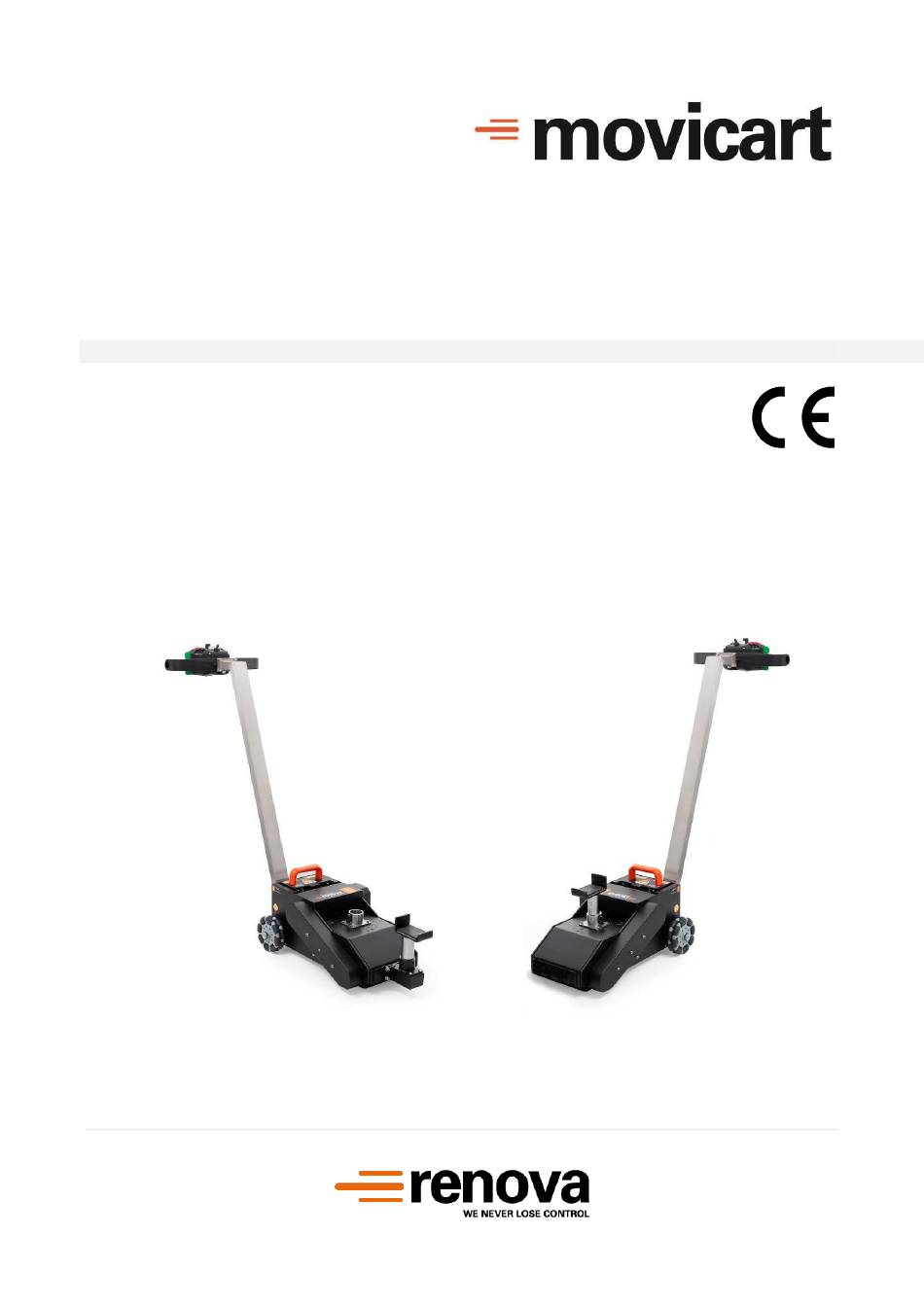

- Page 1 400 E operating instructions Renova srl – viale Rimembranze 93 – 20099 Sesto San Giovanni - Italy – tel: +39.02.2700.7394 – fax: +39.02.2570.8635 www.renova-srl.com – email: support@renova-srl.com...
- Page 2 This product complies with the Directive 2006/42/EC on machinery © Copyright Renova Srl, 2013. All rights reserved. MANMCEENA4V0421...
-
Page 3: Table Of Contents
index introduction ……………………………………………………...…….……………….…….…… page 4 warning …………………………………………….….….………………….…….……………… page 4 general warnings ………………………………………….….…….…………………..…… page 4 assistance ……………………………………………………………………………………………… page 5 general instructions ………………………………………………………….………….……… page 5 initial content of the box………………………………………………………….. page 5 appliance and components descriptions ………………….………….….. page 5 packaging …………………………………….…….……………….…………………… page 6 serial number ………………………………………………………………………….. -
Page 4: Introduction
(including but not limited to improper maintenance and storage), accidents, improper installation, modifications (included but not limited to the use of non-original parts or accessories not authorized by Renova), improper adjustment or repair. All parts subject to normal wear are excluded from the guarantee. -
Page 5: Assistance
Renova is worldwide present with Agents and Distributors. Contact Renova support support@renova-srl.com general instructions INITIAL CONTENT OF THE BOX movicart x2 (optional) batteries battery charger shipment kit CONTENT DESCRIPTION MOVICART – in the model as ordered, MCE400 or MCE400E. -
Page 6: Packaging
PACKAGING Please do not throw away the wood packaging of your movicart system as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to Renova srl. SERIAL NUMBER Each movicart is provided with its serial number. -
Page 7: Battery Recharge
BATTERY RECHARGE ▪ Push the switch into the OFF position. ▪ Remove the battery from the chassis (as in the picture) ▪ Insert the battery into the charger. A green LED now lights up. Insert the battery into the charger. A red LED on the battery charger now turns on. -
Page 8: Malfunctions Diagnosis
Turn off/on with throttle in zero position (backward gear) Battery tension too low Charge the battery Battery tension too high Use another battery and contact Renova Throttle not at position zero at start Turn off/on with throttle in zero position Broken throttle (potentiometer) Replace the throttle... -
Page 9: Components Descriptions And Codes
components descriptions and code POSITION CODES DESCRIPTION Q.TY MCE400 MCE400E B70-0011 B70-0011 sintered bronze bushing C30-0033 C30-0033 radial ball bearing I30-0004 I30-0004 sprocket chain MREP0012 MREP0012 battery centering on MRE’s battery E50-0001 E50-0001 anderson plug connector MCEP0061 MCEP0061 triangular lever MCEP0001 MCEP0001 upper connecting rod... - Page 10 MCEP0054 MCEP0054 bearing guide lifter MCEP0056 MCEP0056 bearing axis lifter MCEP0058 MCEP0058 bearing spacer lifter MCEP0019 MCEP0019 rear wheel axle MCEP0010 MCEP0010 rubber shaft MCEP0020 MCEP0020 actuator axle C10-0023 C10-0023 simple chain MCEP0021 MCEP0021 cover chain MCEP0022 MCEP0022 cover motor R95-0004 R95-0004 rear wheel for movicart...
-
Page 11: Spare Parts Request
MCEP0066 complete handle Plug discharger - movicart KITBATTMCE battery 24 V KITCHRMCE220 charger 220V 50-60 Hz SCHUKO PLUG KITCHRMCE110 charger 110V 50-60 Hz 3 PIN US PLUG SPARE PARTS REQUEST Please always communicate the serial number of your movicart when requiring spare parts together with the code of the spare parts needed. - Page 12 control panel Power ON/OFF Power on red LED and diagnosis function. If it lights up intermittently, count the flashes and read the corresponding anomaly to page 8. Battery charge status indicator Control button for raising the lifter plate Control button for lowering the lifter plate Butterfly throttle Pushing the top of the lever, the Movicart moves forward (forward gear) Pushing the bottom of the lever, the Movicart moves backward (reverse gear)
- Page 13 The combination of the numerous accessories allows the interfacing with most of the existing carts. However, Renova is always available to solve customer problems by creating customized accessories. CART GRIPPERS CART FRAME (mm)
- Page 14 BUSHINGS A (mm) CODE MCEP0102 MCEP0016 MCEP0065 (only for MCE 400) MCEP0096 MCEP0097 MCEP0098 MCEP0099 MCEP0100 MCEP0101 HANDLE EXTENSION MCEP0104 Handle extension, 610 mm To use the handle extension, it is necessary to disassemble the handle and disconnect the cables between the handle and the movicart.
-
Page 15: Instruction For A Proper Use
instructions for a proper use Movicart has been designed for handling most of the carts on the market, equipped with two fixed wheels and two pivoting wheels. The operating conditions require that the floor, on which the carts are moved, must be smooth, free from steps, holes, rails, and all kinds of fixed and non-fixed obstacles that may prevent its free movement. - Page 19 NOTES...
- Page 20 Renova srl – viale Rimembranze 93 – 20099 Sesto San Giovanni - Italy – tel: +39.02.2700.7394 – fax: +39.02.2570.8635 www.renova-srl.com – email: support@renova-srl.com...
