CIFARELLI M1200US Instruction And Maintenance Manual

Mist blower

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

IST BLOWER

M1200US

Instruction and maintenance

manual

Translated from the original Italian version

Version 02 dated 17/10/2019

Warning

This instruction manual is integral part of the machine,

so keep it with care.

Please read carefully this instruction book before using the

mist blower. An improper use can cause serious or fatal

injury.

Table of Contents

Need help?

Do you have a question about the M1200US and is the answer not in the manual?

Questions and answers

joseph travis

May 11, 2025

How do you start a Chiarelli 1200

1 comments:

Mr. Anderson

May 20, 2025

To start a CIFARELLI M1200US:

1. Ensure the liquid tap is closed and no one is nearby.
2. Set the choke lever to the correct position (horizontal as shown in Picture 14).
3. Pull the starting handle gently—do not pull it to the end to avoid spring damage.
4. Guide the handle back slowly so the rope rewinds properly.
5. Once the engine starts, keep it at idle speed for at least one minute.
6. Then, gradually accelerate to maximum power using the steady throttle lever.

This answer is automatically generated

Summary of Contents for CIFARELLI M1200US

Page 1 IST BLOWER M1200US Instruction and maintenance manual Translated from the original Italian version Version 02 dated 17/10/2019 Warning This instruction manual is integral part of the machine, so keep it with care. Please read carefully this instruction book before using the mist blower.
Page 2 Cifarelli S.p.A - Italy Page 2...
Page 3 Due to the continuous improvements Cifarelli S.p.A. submits its own production to, the mist blower M1200US may be subject to changes or modifications without any notice and/or obligation of adaptation of the machines previously sold.
Page 4: Table Of Contents
Cifarelli S.p.A - Italy INDEX Machine data ........................5 Symbols ..........................6 Safety Norms ........................6 State and local requirements ..................7 Personal protections ...................... 7 Prohibitions ........................8 Fuelling .......................... 8 Safety checking of the machine..................9 Warning ......................... 9 Packing ........................
Page 5: Machine Data
Mist blower M1200US Please note: the packing of the machine has been equipped with some labels containing the model and the serial number of the machine itself; these labels can be taken off and stuck on the pages containing the machine’s data and the CE certificate.
Page 6: Symbols
Cifarelli S.p.A - Italy YMBOLS Here as follows you can find the description of the pictograms used in this manual; some of them are also present on the machine. AUTION GENERAL ORK CLOTHES MUST BE WARNING WORN ESPIRATORY ’ EAD OPERATOR...
Page 7: Safety Norms
Mist blower M1200US AFETY ORMS This symbol indicates very important instructions contained in this manual. Therefore please take particular care to the paragraphs marked with this symbol. ARNING Before starting to work it is very important to carefully read and follow all the safety norms described in this chapter.
Page 8: Prohibitions
Cifarelli S.p.A - Italy Always wear rubber boots resistant to the chemical products; their contact with the skin can cause irritations and/or injures. It is advised to wear steel toe boots with no-slip soles. Never wear large clothes, short trousers, sandals, necklaces, bracelets or similar.
Page 9: Safety Checking Of The Machine
 Verify that the machine is entire; in case of falling or heavy impact, check eventual damages; in case of doubt, turn off immediately the machine, if it is running and contact a Cifarelli Service Centre.  Before starting the engine, verify the closing of liquid tap.
Page 10 Raynaud and the syndrome of the carpal tunnel. Although Cifarelli's blower is equipped with an anti-vibration system, for professional users (who uses the machine in a constant and continuous way), it is advisable to: ...
Page 11: Packing
2) on “0” position. Picture 10 All CIFARELLI machines are packed in carton boxes to avoid any damage during the transport. The carton used is a raw material and it can be re-used or recycled. (recycling of paper).
Page 12: Standard Supplies

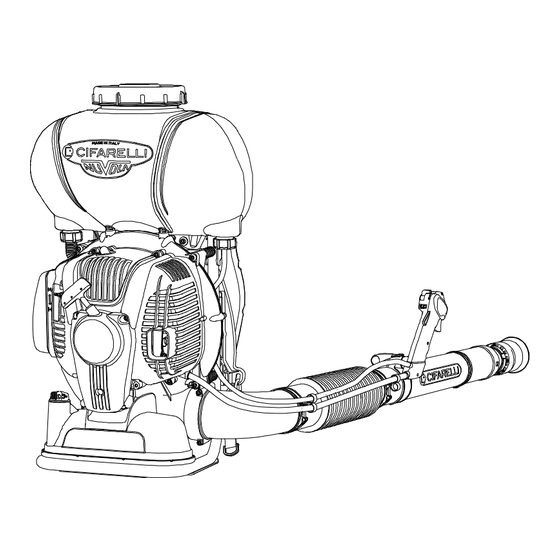

Cifarelli S.p.A - Italy TANDARD SUPPLIES Picture 1 - Parts of the blower Frame Shoulder starps 13 Liquid tap Air filter Cushion 14 Spreader Spark plug cap Elbow 15 Wide spray jet Starter 10 Flexible pipe 16 Liquid tank Cover of the engine...
Page 13: Assembly
Mist blower M1200US SSEMBLY For the assembly of the mist blower, read the instructions as reported below. Observing the Picture 2 here on the left and after the Picture 3: 1. Insert the elbow (Picture 1 pos.9) between the fan cover.
Page 14: Adjusting Of The Handle
Cifarelli S.p.A - Italy ARNING The adjusting of the handle has to be done with the engine turned off. The right position of the handle is very important to work comfortably. To adjust the position of the handle, proceed as follow: 1.
Page 15: Adjusting Of The Shoulder Straps
Mist blower M1200US ARNING The adjusting of the position has to be done with the engine turned off. Before to use the mist blower, it is very important to reach the correct weight balance of the machine on your shoulders. This can be obtained by regulating straps length to get the machine close-fitted on both back and shoulders.
Page 16: Fueling Operation
Cifarelli S.p.A - Italy UELING OPERATION This engine can work with a mixture of both leaded or unleaded petrol and oil for two strokes engine but never use petrol mixed with alcohol. ARNING The use of gasoline containing ethanol with a greater rating of 10% can damage the engine.
Page 17: Fuelling
Mist blower M1200US In order to help mixing the fuel, each machine has been supplied with a bottle for mixing fuel in ratios 25:1 (4%) or 50:1 (2%). Please observe the Picture 9 and proceed as follows to prepare one litre of mixture: 1.
Page 18: Mist Blower Controls
Cifarelli S.p.A - Italy IST BLOWER CONTROLS Observe the pictures here below to understand how to use the controls of the handle (Picture 1 pos.11) on the throwing pipe: Throttle lever Power switch Accelerator security lever Steady throttle lever Switch for blocking the tap in the position...
Page 19: Regulator Of The Liquids Flow
Position of the regulator of flow The Cifarelli’s mist blower M1200US is designed in order to perform treatments with the same efficacy even with the throwing pipe oriented in the vertical direction; to make more comfortable such treatments, the machine is equipped with a rotating elbow (Picture 1 pos.9).
Page 20: The Mist Blower
Cifarelli S.p.A - Italy THE MIST BLOWER Please read carefully the chapter "Safety precautions" which will indicate you all the precautions required for mist blower using.  Place the machine on the ground in a smooth site.  Verify that the switch (Picture 10 position 2) is not in “0” position (turned off).
Page 21 Mist blower M1200US  Press deeply but slowly for 10 times the bulb A (Picture 13).  Put in down position the choke lever B till hearing a click (Picture 13).  Verify that the switch (Picture 10 position 2) is on “1”...
Page 22 Cifarelli S.p.A - Italy Picture 16 - Position of the spark plug If the engine floods, please proceed as it follows:  Unscrew and remove spark plug (Picture 1 pos. 3), wipe and dry it.  Verify that the choke lever B is in horizontal position as shown in the Picture 14.
Page 23: Filling Of The Liquid Tank
Mist blower M1200US To fill the liquid tank:  Place machine ground in a smooth site  Verify the closing of the liquid tap (Picture 12 pos. A) presents on the throwing pipe  Unscrew the cap of the liquid...
Page 24: Treatment
Cifarelli S.p.A - Italy Please read carefully the chapter "Safety precautions" which will indicate you all the precautions required for mist blower using.  The throwing pipe has to be addressed toward the crops that must be treated, and never against the wind.
Page 25: Use As A Blower
Mist blower M1200US Your mist blower can be used as a blower for cleaning purpose.  Always open throttle lever gradually until engine reaches the proper revolution before starting blowing.  Blowing regulate engine revolution depending on your needs, maybe it is not necessary to run the engine at maximum revolution..
Page 26: Storage Norms
Cifarelli S.p.A - Italy TORAGE NORMS To store the mist blower for a long time, proceed as follows:  Drain all fuel from tank.  Start the machine at middle power and leave that the engine stops him for lack of fuel.
Page 27: Check-Up And Maintenance
Your mist blower needs very few check-up; if regularly done, they will help you to keep it efficient without any problem. For any maintenance and for buying of spare parts, contact your local Cifarelli assistance centre that will give you the necessary support in the best way.
Page 28: Air Filter
Cifarelli S.p.A - Italy The efficiency of air filter is very important in all engines; it must be often checked and cleaned. Proceed as it follows:  To reach the filter Picture 1 pos.2) press the clamping button (Picture 19) on the filter cap and turn it following the direction of the arrow to open it.
Page 29: Cylinder Fins
Mist blower M1200US After long use, especially in dusty places, it needs to clean the cylinder fins because may become very dirty. The missed cleaning of the cylinder fins avoids a proper cooling of engine with a consequent overheating and seizure of the engine.
Page 30: Spark Plug
Cifarelli S.p.A - Italy The engine operation and starting depends on the spark-plug efficiency. To disassemble the spark plug:  Disconnect the cap of the spark plug sown in the Picture 1 position 3.  Unscrew the spark plug with the endowed spanner.
Page 31: Trouble Shooting
Mist blower M1200US ROUBLE SHOOTING The engine doesn’t start Cause Solution The switch (Picture 10 position 2) is on Move it to “position “1” “0”. Damaged ground cables or lack of Replace it or insulate it contact Absence of fuel.
Page 32 Cifarelli S.p.A - Italy Faulty engine or backfiring Cause Solution See points 5, 6, 7, 9 Only use the suggested spark-plug. 20. Incorrect thermic degree of spark plug See ‘Technical data’ at page 35. There is a “bridge” between the Clean or replace the spark plug.
Page 33: Discarding And Disposal
Mist blower M1200US ISCARDING AND ISPOSAL Discarding and disposal are under client’s responsibility. Before discarding the machine, please verify the general conditions of the same, checking that there are no parts that could be broken during the discarding. Please comply with the laws in force in your Country following environmental protection.
Page 34 With the kit 0G.346.00 the mist blower M1200US can be used to perform treatments Code with products powder sulphur 0G.346.00...
Page 35 Mist blower M1200US the mist blower can be used as blower in apiculture for removal bees during the cleaning of the honeycomb, which precedes the step of the honey extraction. Through the volume of air generated by the mist blower, the operation is performed Code quickly and without harming the bees.
Page 36: Technical Data
Electromagnetic compatibility Conforming - report REI (EN ISO 14982) Due to the continuous improvement of the Cifarelli's products, the above mentioned features may change without prior notice and/or without any obligation to upgrade previously sold devices. 180, Strada Oriolo - 27058 Voghera - Italia Tel.
