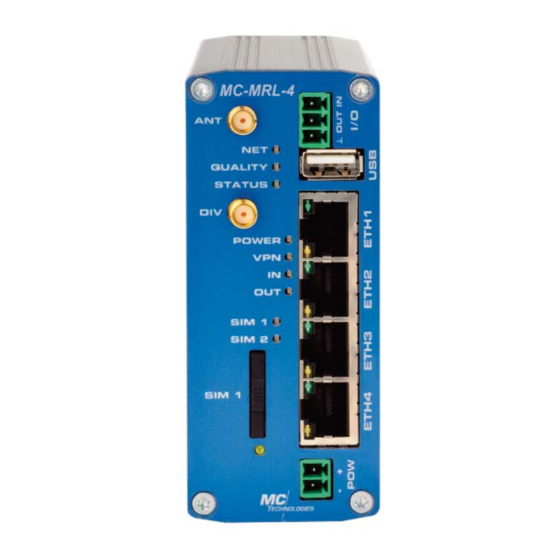

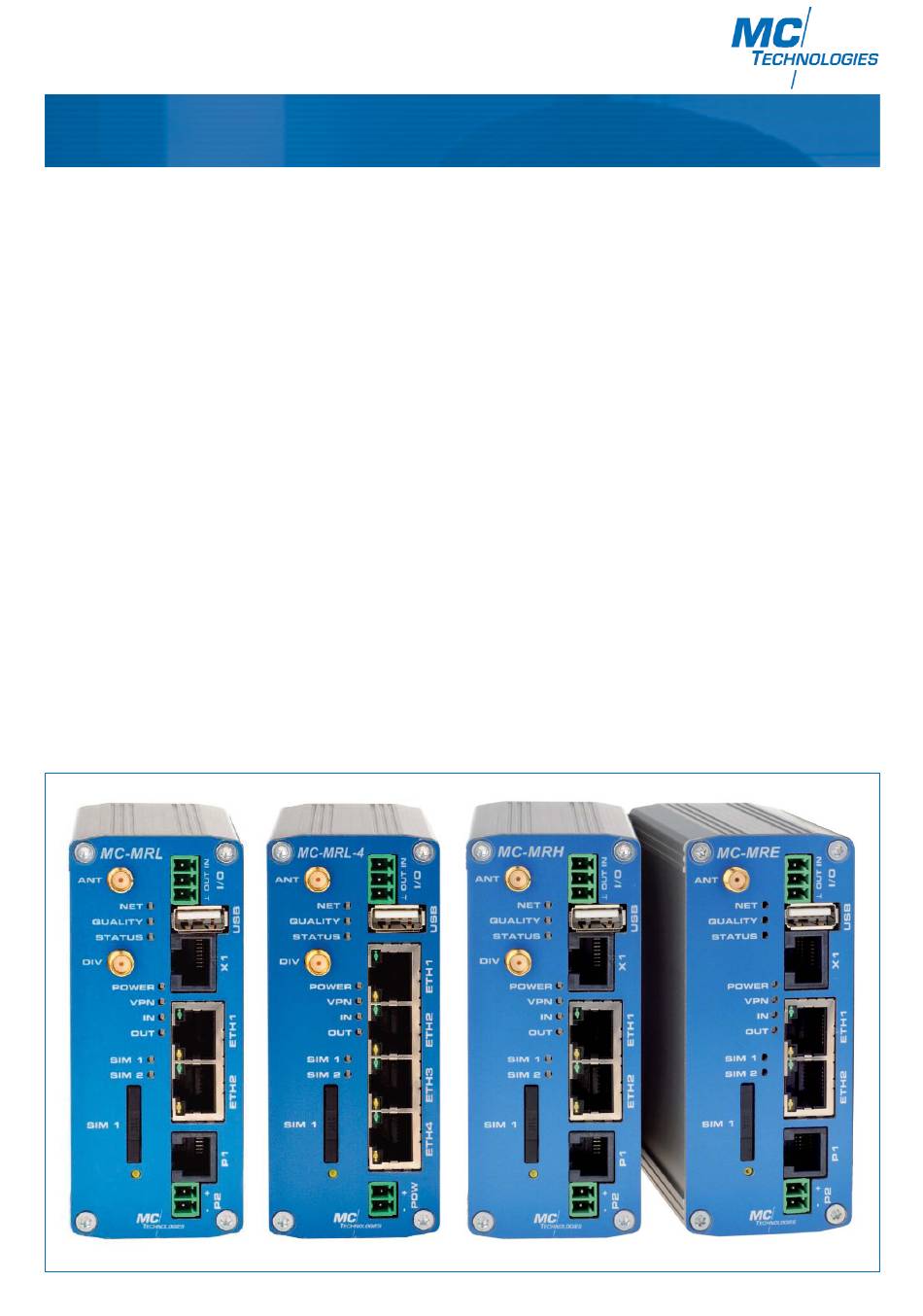

- Page 1 User Manual Web Interface MC Technologies Router MC-MRL/MC-MRL-4 MC-MRH/MC-MRH-4 MC-MRE/MC-MRE-4...
- Page 2 • Use of integrated GPS receiver for positioning on demand (only MC-MRH/MC-MRH-4). • Delivered ready-to-use, including power supply plug, Ethernet connecting cable and mobile radio antenna. • SIM cards are not included in the standard scope of delivery. MC Technologies Router program...
-
Page 3: Table Of Contents
1.9.7 SMTP configuration 40-41 1.9.8 SMTP configuration - sending emails 1.9.9 Configuration Up-/Download 1.9.10 RTC - Setting the time and date / Time Server 1.9.11 Reboot - restarting the router 1.9.12 Firmware Update User Manual Web Interface MC-MRL/MC-MRL-4/MC-MRH/MC-MRH-4/MC-MRE/MC-MRE-4 - 05/2015... - Page 4 2.3 Using the integrated GPS receiver in the MC-MRH router 2.3.1 Activating the GPS function 2.3.2 Displaying the GPS coordinates in the web interface 2.3.3 Receiving the GPS coordinates as an SMS 2.3.4 GPS coordinates as an XML file MC Technologies Router program...
-
Page 5: Configuration Via The Integrated Web Interface
IP address to the PC (e.g. 192.168.0.2, default gateway 192.168.0.1). Factory reset Important note! All configuration settings will be deleted and reset to the "Factory Defaults" setting. 1.2.3 Resetting all parameters on the web interface User Manual Web Interface MC-MRL/MC-MRL-4/MC-MRH/MC-MRH-4/MC-MRE/MC-MRE-4 - 05/2015... - Page 6 SIM #1 IMSI Specification of IMSI (International Mobile Subscriber Identity) by the SIM card. Local area code Number in cellular network via current location. Cell ID Clear recognition of a GSM cell in the cellular network. MC Technologies Router program...
-
Page 7: Local Network
IP address of the DNS server. Sec. DNS Server IP address of the alternate DNS server. Expires Only MC-MRL (LTE) remainder duration until prompt for a new IP address. RX bytes Sum of received data since last login to cellular network. TX bytes Sum of sent data since last login to cellular network. -
Page 8: I/O Status
ON or Connection lost ON. Off: Output is not active. 1.3.4 ComSERVER (only for MC Router with RS232 or RS485 interface on X1) Status display of integrated ComSERVER See also 1.9.6. ComSERVER 1.3.5 Routing Table Display of current routing table. MC Technologies Router program... -
Page 9: Dhcp Leases
IP Adress Alias addresses how the router can be reached alternatively (up to eight other IP addresses). Subnet Mask Click "New" and add the other IP addresses, as well as the corresponding subnet masks. User Manual Web Interface MC-MRL/MC-MRL-4/MC-MRH/MC-MRH-4/MC-MRE/MC-MRE-4 - 05/2015... -
Page 10: Dhcp Server
MAC address of the terminal equipment. Client IP address IP address of the terminal equipment. Static allocation of the IP addresses should not overlap with the dynamic IP addresses. An identical IP address should not be used in multiple static allocations. MC Technologies Router program... -
Page 11: Local Static Routes
Network in CIDR notation: IP address / Net mask Example: xxx.xxx.xxx.xxx/yy (x..=IP address; yy=net mask) Example: yy=24 (number of binary "ones") => net mask = 255.255.255.0 Gateway The gateway how this network can be reached. User Manual Web Interface MC-MRL/MC-MRL-4/MC-MRH/MC-MRH-4/MC-MRE/MC-MRE-4 - 05/2015... -
Page 12: Radio Set-Up
Activate daily login. Daily login first attempts to log onto primary cellular network (SIM1). Time Time of day at which the router independently logs out of the cellular network and logs back in. Relogin first attempts to log onto primary cellular network (SIM1). MC Technologies Router program... -
Page 13: Sim (Sim1)
Authentication The default setting is "All protocols". Some providers require a specific authentication setting (refuse MSCHAP, CHAP only, PAP only) here. Consult your provider if necessary. User Manual Web Interface MC-MRL/MC-MRL-4/MC-MRH/MC-MRH-4/MC-MRE/MC-MRE-4 - 05/2015... -
Page 14: Backup Sim (Sim2)
<command> = RESET Reset all alarms <command> = REBOOT Router reboot Example: Turn on the I/O interface output. The (example) password is: "pw1212". The SMS sent to the router's call number should then have the following content: #pw1212:SET:OUTPUT. MC Technologies Router program... - Page 15 Forwarding of SMS message via Ethernet activated. Server IP address IP address to which the SMS message should be forwarded. Server Port (default 1432) Port to which the SMS message should be forwarded. User Manual Web Interface MC-MRL/MC-MRL-4/MC-MRH/MC-MRH-4/MC-MRE/MC-MRE-4 - 05/2015...
-
Page 16: Packet Data Set-Up
Automatic DNS set-up. The DNS settings of the provider will be used. Enabled: Manual DNS set-up. DNS Server IP address of the primary DNS server in the mobile service network. Sec. DNS Server IP address of the alternate DNS server in the mobile service network. MC Technologies Router program... -
Page 17: Wireless Static Routes
Data packets from the local network can be defined using static routes for alternative routes in the mobile service network. Wireless Static Routes Wireless Static Routes Network Network in CIDR notation. Gateway The gateway via which this network can be reached. User Manual Web Interface MC-MRL/MC-MRL-4/MC-MRH/MC-MRH-4/MC-MRE/MC-MRE-4 - 05/2015... -
Page 18: Dyndns
For continuous connection monitoring, use "Connection Check" to check for a packet data connection in the mobile service network. If the connection is lost, an action can be configured for establishing a new connection. Note: Please note that frequent connection checks can lead to increased data traffic and corresponding costs. MC Technologies Router program... -
Page 19: General Set-Up (Firmware 1.Xx.x)
1.6.1 General Set-up (Firmware 1.xx.x) These settings apply for routers with 1.xx.x firmware (see Release Version under "System/Hardware"). Important note! Routers with Release 1.xx.x firmware cannot be updated to Version 2.xx.x. Please contact the manufacturer. User Manual Web Interface MC-MRL/MC-MRL-4/MC-MRH/MC-MRH-4/MC-MRE/MC-MRE-4 - 05/2015... -
Page 20: Firewall
Local configuration via the web interface and https is possible. External access via SSH Disabled: External configuration via the web interface and https is not possible (default). Enabled: Configuration via the web interface and https is possible. MC Technologies Router program...
