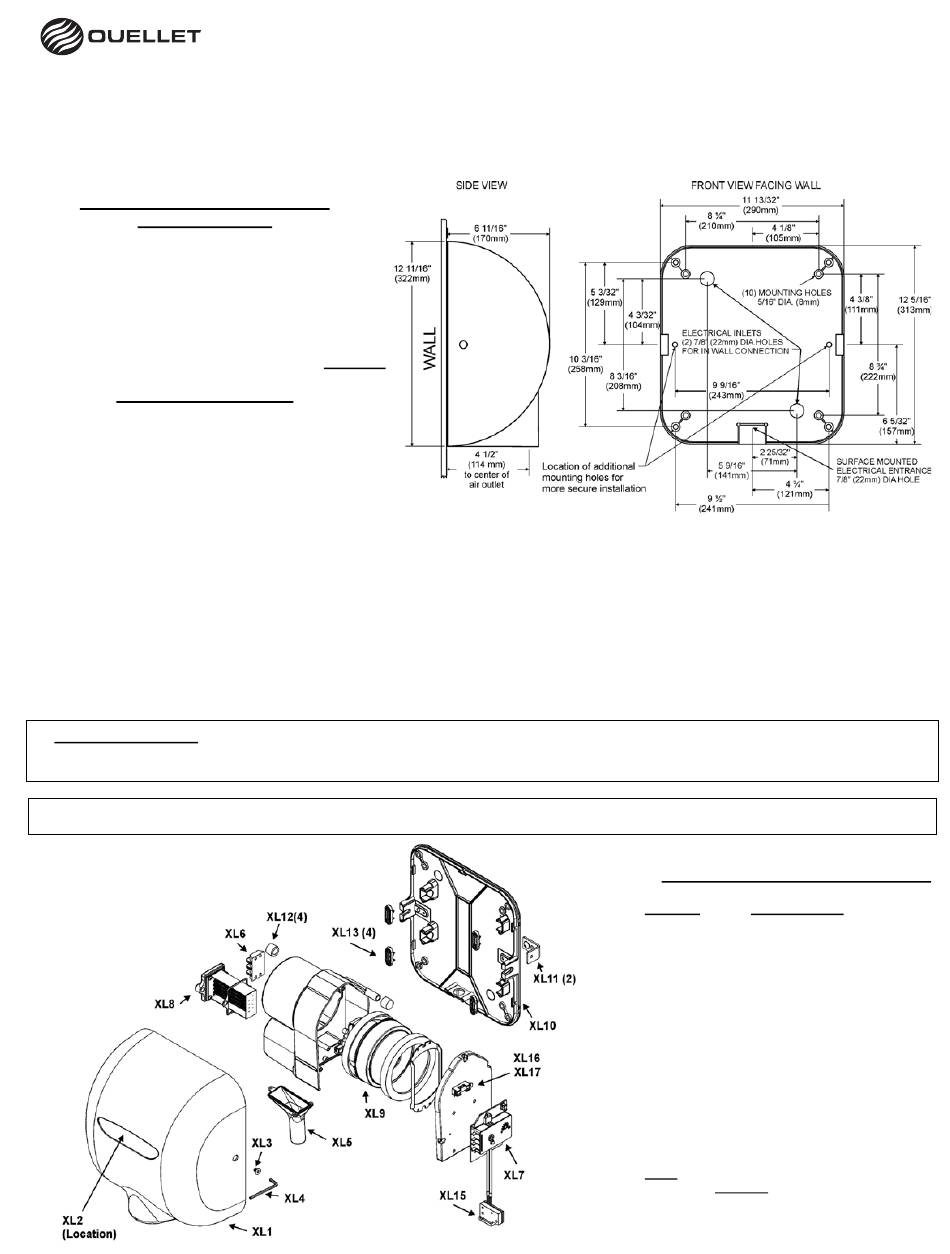

Ouellet XLERATOR XL-W-ECO-120 Installation Instructions

FOR PROPER ELECTRICAL CONNECTIONS, CHECK YOUR LOCAL BUILDING CODES.
YOUR UNIT MUST BE INSTALLED BY A QUALIFIED, LICENSED ELECTRICIAN.
Suggested Mtg. Heights from floor
to bottom of dryer
Men's
Ladies'
Teenagers'
Sm. Children
Handicapped
IF MOUNTING OVER COUNTERTOP, DISTANCE FROM
COUNTER TO DRYER MUST BE 15" (381mm) MINIMUM

Recommended Fastener

Masonry Wall ½" expansion sleeve with ¼" lag bolt
Hollow Wall ¼" wing type through bolt
Wooden Wall ¼" lag screw with washer
1. Remove cover of dryer by unscrewing two tamper-proof bolts from the sides of the cover with the special wrench provided with each unit.
2. Attach wall plate at the four corners to smooth wall. In locations where vandalism is a concern, use the two additional mounting holes shown.
Remove control assembly to access right side mounting hole. Attach with the recommended type of fastener (see above).
3. Identify the voltage of your dryer from the rating sticker of the unit. Then connect to a dedicated branch circuit not exceeding 20 Amp. Secure
electrical wiring to terminals as indicated by the schematic affixed to blower housing. An identified ground connection point is supplied on the base
plate for your equipment ground wire. Dryers should be installed per local code requirements.
4. In multiple installations, before replacing cover, check the Serial Number marked inside the dryer to be sure it matches the Serial Number marked
on the label at the bottom of cover. PLEASE DO NOT SWITCH COVERS. Do not forget to leave the special TAMPER PROOF WRENCH with
the owner.
INSTALLATION NOTE: If the dryer will not turn on, stays on or stops working, it may be mounted too close to a counter or object. Turn off the
power to dryer for 10 seconds and then reapply power. If dryer will start, then turn off again, relocate the object or remount dryer. If this is not
possible, adjust the range of the sensor by turning the range adjustment on the control board, counterclockwise to decrease sensor range.
NOTE: Upon completing installation and checking for proper operation, it is highly recommended that a bead of silicone sealant be placed around
the outside of the cover at the wall to protect dryer from internal corrosion caused by wash water and cleaning solutions
INSTALLATION INSTRUCTIONS
XLERATOR
FOR
45" (1143 mm)
43" (1092 mm)
41" (1041 mm)
35" (889 mm)
37" (940 mm)
®
HAND DRYER

PARTS LIST FOR XLERATOR DRYER

REF NO.
XL 1
XL 2
XL 3
XL 4
XL 5
XL 6
XL 7
XL 8
XL 9
XL 10
XL 11
XL 12
XL 13
XL 15
XL 16
XL 17
NOTE: Model, Serial Number and Voltage of the
DESCRIPTION
Cover (includes Nameplate)
Nameplate
Tamper-proof Bolt
Tamper-proof Wrench
Air Outlet (includes gasket)
Terminal Block (includes screws)
Control Assembly & Sensor
Heating Element Assembly
Motor Assembly
Wall Plate Assembly
Cover Mounting Brackets
Housing Grommet
Housing Retainers
Optics Assembly (Sensor)
Fuse holder (if so equipped)
Fuse (if so equipped)
dryer MUST BE included when ordering parts.
