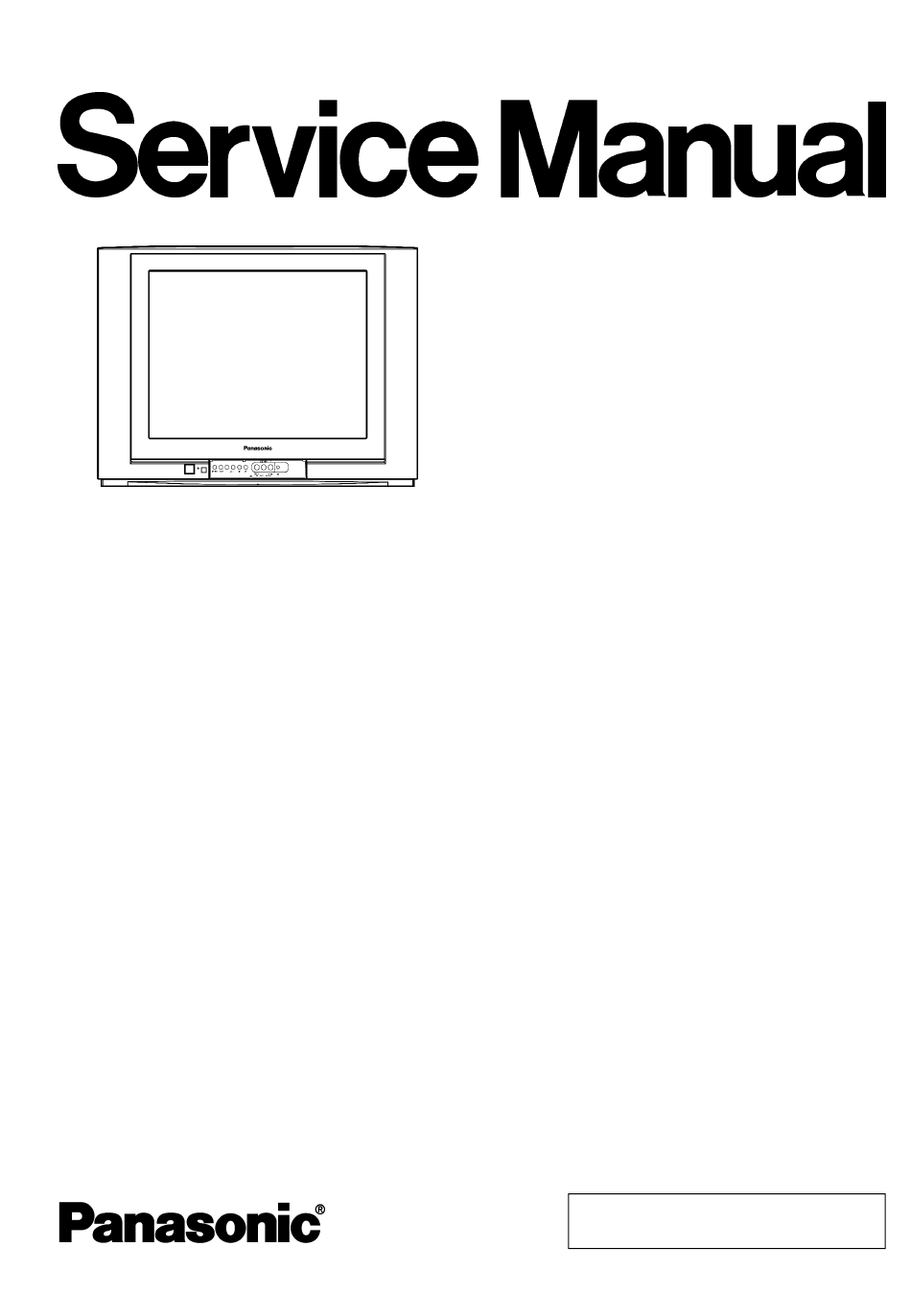

Panasonic TX-21FG50A Service Manual

Specifications
Power Source :
Power Consumption :
Aerial Impedance :
Receiving System :
Receiving Channels :
VHF 1-11 PAL B (Australia & N.Zealand)
UHF
CATV
Intermediate Frequency :
Video
Sound
All manuals and user guides at all-guides.com
AC AUTO 110-240V, 50/60 Hz
83W
75Ω unbalanced
Coaxial type
17 Systems
1-12 PAL/SECAM D
1-12 NTSC M JAPAN
2-12 PAL/SECAM B, G
2-13 NTSC M U.S.A.
21-69 PAL G I/SECAM B, G, K1
28-69 PAL G (Australia)
13-56 PAL D
13-52 NTSC M JAPAN
14-69 NTSC NTSC M U.S.A.
S1-S41 (Hyper)
38.0 MHz
31.5 MHz (D, K, K1)
32 MHz (I)
32.5 MHz (B, G)
33.5 MHz (M)
TX-21FG50A-
AUSTRALIA
GP31 Chassis
Colour
Video / Terminals :
RAV In
Monitor Out
High Voltage :
Picture Tube :
Audio Output :
Dimensions :
Mass :
Specifications are subject to change without notice.
Mass and dimensions shown are approximate.
© 2005 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
ORDER NO. MTV0501369C3
Colour Television
33.57 MHz (PAL)
33.6 MHz (SECAM)
33.75 MHz (SECAM)
34.42 MHz (NTSC)
AV1, 2
Video In 1 Vp-p 75Ω
Audio In Approx. 400mVrms
Video Out 1 Vp-p 75Ω
Audio Out Approx. 400mVrms
27.5kV±1.5
at zero beam current
A51LXR195X
51cm (21 inches)
Measured diagonally,
90° deflection
16.0W
Height : 473 mm
Width : 648 mm
Depth : 488 mm
24 kg (Net Wt.)
Unauthorized copying and
