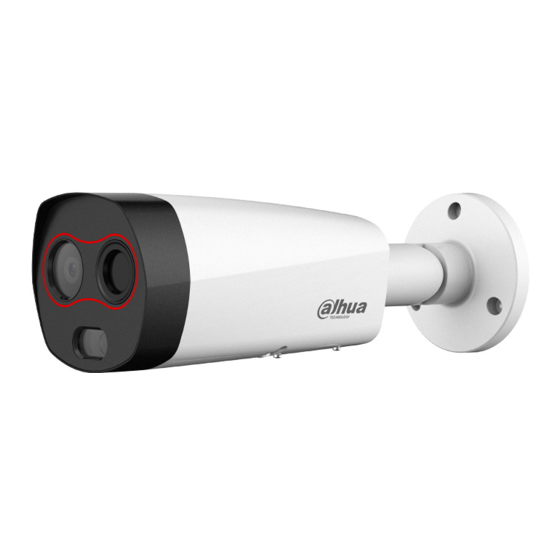

- Page 1 Installation and configuration guide (Lite Version) DH-TPC-BF2221-HTM IVSS7008-1I Blackbody © 2019 Dahua. All rights reserved. Design and specifications are subject to change without Ver.1.0 notice. Pictures in the document are for reference only, and the actual product shall prevail.
- Page 2 The purpose of this guide is to give you a clear understanding of how to install and configure the Human Body Temperature measurement system, from Dahua technology Co., Ltd © 2019 Dahua. All rights reserved. Design and specifications are subject to change without...
-
Page 3: Table Of Contents
Table of content Table of Content General Description ..........................4 Installation preparation ..........................5 Environment .............................. 6 Installation ..............................7 Mounting camera and Blackbody ......................8 Wiring ..............................15 Connecting Monitor and mouse ......................16 Configuration ............................17 IVSS startup wizzard ..........................18 Add camera to IVSS .......................... -
Page 4: General Description
• Understand how to debug the system • Get the knowledge of the solution FAQ; Dahua Technology Co., Ltd is presenting a thermal camera solution that is capable of highly accurate body temperature measurement ±0.3℃ (with blackbody). Built-in AI algorithm for multi-person measuring up to 2m distance, which enables fast and non-contact. -
Page 5: Installation Preparation
Installation preparation IVSS7008-1I Server Thermal Network Value Hybrid Blackbody 10M Ethernet Cable Bullet Camera DH-TPC-BF2221-HTM Poe Switch Monitor 2X Tripod incl Brackets HDMI Cable 5 Port DHL32-F600 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without... -
Page 6: Environment
Installation Guide Environment • It is required that the visible light channel has enough illumination and avoid the influence of backlight, reflection, change of strong light and occlusion, etc. • It is forbidden to have high-temperature heat source or sunlight in the thermal imaging picture, to avoid the interference of heat source such as a heater, hot water point, microwave oven, high-power lamp, radiator, etc., so as to avoid the damage of detector. -
Page 7: Installation
Installation Guide Installation © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. -
Page 8: Mounting Camera And Blackbody
Installation Guide Installation Diagram • The area needs to be defined and marked clearly with pullout safety barriers or similar. • The flow of People should, in this case, begin from the left and exit in the bottom right 90cm side, it could be opposite as long as diagram 2 is followed. - Page 9 Installation Guide Installation Diagram Here the person in not blocking the line of Here the person is blocking the line of sight between sight between camera and Blackbody. camera and Blackbody, which will affect the accuracy. RIGHT WRONG PLACEMENT PLACEMENT 90cm ©...
- Page 10 Installation Guide Installation Diagram • Here it is shown how the placement of Blackbody and camera should be if we need the flow to start from left-to-right or from right-to-left. • It is just important that we make sure a person is not able t block the line of sight between Blackbody and camera...
- Page 11 Installation Guide Installation of Blackbody 1. The Bracket is mounted to the tripod without tools. 2. The Blackbody is now mounted to the bracket with the provided Hex screw. 3. The picture to the right illustrates it. © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
- Page 12 Installation Guide Settings of Blackbody 1. Power up the Blackbody by connecting the 230V socket provided and turn it 2. Turn up the temperature to 35° by clicking the upwards arrow until the temperature is set. 3. Wait 30 minutes until the Blackbody is ready but continue the installation while the Blackbody gets ready.
- Page 13 Installation Guide Installation of Camera DH-TPC-BF2221-HTM 1. The bracket is mounted to the camera with the 4 screws provided. 2. The camera with bracket is now connected to tripod. 3. The picture to the right illustrates it. © 2019 Dahua. All rights reserved. Design and specifications are subject to change without...
- Page 14 Installation Guide Installation Diagram • As shown, the distance between the camera and Blackbody would be 180cm 2 Meters. 200cm • Height of Blackbody should be 1.8 Meter 200cm measured from underneath the device. • The Height of the camera should be 2 Meter measured from underneath the device.
-
Page 15: Wiring
• All the connections should look like the picture to the right. DH-TPC-BF2221-HTM © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. -
Page 16: Connecting Monitor And Mouse
230V 5 Port • Installation is done but might need slight adjustment during DH-TPC-BF2221-HTM 230V Blackbody configuration. © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. -
Page 17: Configuration
Configuration Guide Configuration © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. -
Page 18: Ivss Startup Wizzard
Configuration Guide 1. Startup page. IVSS Startup Wizard • The IVSS server wizzard will take you through to 2. Choose your region and the most nessesary language. settings from start up. Click ”Next” 3. Agree to terms and conditions. Click ”Device Initialize” ©... - Page 19 Configuration Guide 4. Confirm timezone, set time 7. Here we should set an IP address for the IVSS server and date. network card 1. Click ”Next” Click the icon as shown to set 5. Choose a password that 8. We are setting the IVSS to be contains a between 8-32 Digits 192.168.1.100 as an example.
-
Page 20: Add Camera To Ivss
Configuration Guide 12. Click the ” Add” Button to add a camera. Add camera and configure perimeters 10. Next part is to add the 13. Click ”Search” to find the camera to the IVSS, Click the camera connected, it might “gear”... - Page 21 Configuration Guide 15. Confirm to use the same 18. We can confirm that the camera is connected from the password for camera as we use for IVSS. green ”status” symbols. There are 2 channels connected since this is a dual Click ”Next”...
-
Page 22: Setup Perimeters For Camera And Blackbody
Configuration Guide 21. Click the camera on your 24. Capture filter needs to be setup. left side and click the ”Thermal channel”. Set min. Filter size to be a little smaller then the persons face Enable the ”BodyTempDetect”. and max. Filter to be a little Click ”Save”... -
Page 23: Adjust Camera And Blackbody
Configuration Guide 27. Click ”exit” in the top left 30. Then we choose the ”No mask feature and enable the corner settings, and we can choose to set a ”buzzer” to trigger when and it is time to test the there is an alarm for person solution now. - Page 24 Configuration Guide 33. It is also possible to get 36. As you see from a simulation the temperature statistics from the IVSS. drops rapidly back to normal. Click ”+” in the top next to ”Live” and choose ”AI reports” from the menu. 34.
- Page 25 Configuration Guide 33. It is also possible to get 36. As you see from a simulation the temperature statistics from the IVSS. drops rapidly back to normal. Click ”+” in the top next to ”Live” and choose ”AI reports” from the menu. 34.
-
Page 26: Installation Precautions
Installation Precautions Precautions during installation and Configuration Blackbody • The direction of flow is not correct, it is important that people are moving towards the camera in a straight line. WRONG PLACEMENT • Make sure the are of installation is well illuminated to avoid backlight and reflections and light changes. - Page 27 Installation Precautions • Blackbody radiation surface must not be touched. It is highly sensitive equipment, • Should only be cleaned carefully with these type of devices...
- Page 28 Installation Precautions • Blackbody or camera must NOT be • If any of the devices are moved, they need to be moved after the configuration is returned to their original location, and the blackbody successful, make sure it is radiation zone and detection area should be protected with fence around both.
- Page 29 Installation Precautions • Ensure no high-temperature heat source (heater, hot water, microwave, radiator) or sunlight is in the thermal image. • The installation area shall be relatively isolated from outside environment to avoid strong wind and big humidity changes or airflow.
-
Page 30: Wayfinding
Wayfinding Stickers • Make sure to setup stickers to ensure proper wayfinding/ People Flow... -
Page 31: Faq
1 、 What is blackbody? What is its function? Blackbody can be simply understood as a constant temperature reference source. When testing human body temperature, blackbody is generally set to 35 ℃ by default, which is used for temperature correction of thermal imaging acquisition, so as to meet the accuracy requirements of ±...
