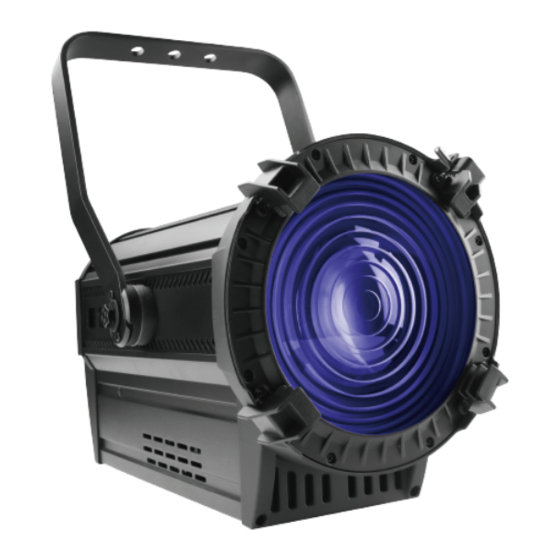

Summary of Contents for Yajiang Photoelectric Equipment FREZNO ze-2 RGBAL HC
- Page 1 图纸编码 RD-SS5251-SM-01(SS-I) 版本号 SS5251XAL 英文说明书 编辑日期 2020/11/16 制作 刘丽萍 审核 白丹 批准 余泽松 物料编码 1320109279 备注 以 A4 样本打印...
- Page 2 FREZNO ze-2 RGBAL HC USER MANUAL FREZNO ze-2 RGBAL HC SS5251 MODEL: SS5251XAL...
-
Page 3: Technical Specifications
1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type SS5251XAL LED colors RGBAL 200W LED Power 200W Voltage Range AC100~240V,50/60Hz Protection IP20 Operation 0℃~45℃ Temperature Dimensions 510X285X261mm Weight 7.6kg... - Page 4 1.2 Safety Notes IMPORTANT ． ． ． ． ． ． ． ． ． This product must be installed by a qualified professional. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes The manufacturer will not accept liability for any resulting damages caused by the ...
-
Page 5: Installation
2 INSTALLATION 2.1MOUNTING UPRIGHT ． ． ． ． ． ． ． For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture. For overhead installation, the fixture must be always secured with a safety wire that can bear ... - Page 6 2.3 Data network requirements Connect the DMX512 controller to the units in series. A DMX 512 data link is required in order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data input and output. Each unit has 13 DMX channels so the DMX Addresses should increase by increments of 1，...
-
Page 7: Functions And Settings
3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION MENU：Used to access the menu or to return a previous menu option; ENTER：Used to select and store the current menu or confirm the current function value or option within a menu; UP：Navigates downwards through the menu list and increases the numeric value when in a ... - Page 8 FADE 0-255 UPLOAD **** SEND Select [UPLOAD] to upload the custom programs SETTING **** RESET **** RESET Restore factory settings DIMMER DIM4（default） Dimming curves DIM1 (fast) to DIM4 (slow)； SAVE（default） Hold after loss of DMX signal ERROR BLACK Blackout after loss of DMX signal 1200HZ（default）...
-
Page 9: Using A Dmx512 Controller
4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL HSIC Value Function (8CH) CH.1 0-255 INTENSIYT CH.2 0-255 CH.3 0-255 HUE FINE CH.4 0-255 SATURATION NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K CH.5 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K STROBE... - Page 10 151-160 1200Hz 161-170 2400Hz 171-180 4000Hz 181-190 6000Hz 191-200 25000Hz 201-210 ALL RESET 211-220 ZOOM RESET 221-255 RESERVED TOUR TR16 Value Function （9CH） （13CH） （19CH） CH.1 CH.1 CH.1 0-255 MASTER DIMMER CH.2 0-255 MASTER DIMMER FINE CH.2 CH.2 CH.3 0-255 CH.4 0-255 RED FINE...
- Page 11 NO FUNCTION 10-99 STROBE FROM SLOD TO FAST (0-25Hz) 100-109 NO FUNCTION 110-179 THUNDER STROBE 180-189 NO FUNCTION 190-255 RANDOM SROBE CH.8 CH.10 CH.16 0-255 ZOOM AUTO 0-40 NO FUNCTION 41-50 AUTO 1 51-60 AUTO 2 61-70 AUTO 3 71-80 AUTO 4 81-90 AUTO 5...
- Page 12 Annex 1 PRESET COLOR Value Color Names 0-10 NO FUNCTION COLOR 1 11-15 L176 Loving Amber 0.407 0.321 COLOR 2 16-20 Light Salmon 0.499 0.321 COLOR 3 21-25 Scarlet 0.561 0.296 COLOR 4 26-30 L164 Flame Red 0.659 0.302 COLOR 5 31-35 L747 Easy White...
