ABTECH SAFETY T3 User Manual

USER MANUAL
This equipment should be inspected for
damage or loss of components before use and
a further inspection should then be carried out
by a competent person or the manufacturer at
regular intervals.
When using this equipment as a fall arrest
anchor adequate clearance distance should be
ensured for the user to fall into. The following
calculation is a guide: User height + Extension
of lanyard / fall arrest brake distance + safety
margin = 2m + 1.75m + 1m = 4.75m
When lifting do not move load outside the
footprint of the Tripod as this will cause
instability .
Any person or load on the tripod should not be
moved outside off the footprint of the tripod as
this will cause instability.
The tripod height can be adjusted. Each leg
should be adjusted to ensure that the tripod is
level.
When applying a static load to the tripod within
the specified WLL the tripod should not deflect.
This is personal fall protection equipment and
not for equipment lifting.
Anchor points - When used in a fall arrest
system the anchor point should be above the
user. This anchor point conforms to EN795.
Only use an approved connector to the anchor
point.
Chemical attack – This equipment should be
kept away from acids, alkalise, chemicals, and
anything which may cause damage to it.
Storage and Transport – This equipment
should be transported and stored in a dry cool
place.
Inspection - This equipment must be inspected
at regular intervals by a competent person
authorised by the manufacturer. The frequency
of the inspection is dependent on the type of
usage and any prevailing conditions.
We recommend the next inspection date is
marked on the tripod via a label or tag.
Obsolescence – The prescribed obsolescence
for this equipment is 10 years. It may be
serviced and repaired. Parts may be changed.
The tripod will be withdrawn from use if it is
damaged or worn parts cannot be replaced.
Provided the equipment is inspected and
maintained in accordance with manufacturers
recommendations the maximum lifespan of the
equipment should be 10 years. However this is
dependant on conditions of work and
frequency of use.
Cleaning – Wipe with a damp cloth. Remove
dust and grit with detergent. Moving
components such as pulley should be kept free
from dirt and dust.
Before Use
The user should make a visual inspection of
the equipment. Look for damage to the
equipment such as cracks, bent or deformed
metal. Ensure all labels are in place and are
correct. Check all components are present and
functional. Check the correct operation of any
moving parts.
If there is any doubt as to the condition of the
equipment it must be removed from service. A
further inspection should then be carried out by
a competent person or the manufacturer.
When using this equipment for access and or
egress a rescue plan should be in operation.
Warning
No repairs, alterations or additions should be
made to this equipment without consultation
with the manufacturer.
The equipment should not be used outside its
limitations, or for any purpose for which it is not
intended.
If equipment is to be used as part of a system
consult with the manufacturer.
Only full body harnesses with a tested
attachment point should be used as part of a
fall arrest system.
Abtech Safety Ltd, 1&2 Parkway Business
Centre, Sixth Avenue, Zone 2, Deeside
Industrial Estate, CH5 2LE
Tel: +44 (0)1244 837 050
sales@abtechsafety.com
www.abtechsafety.com

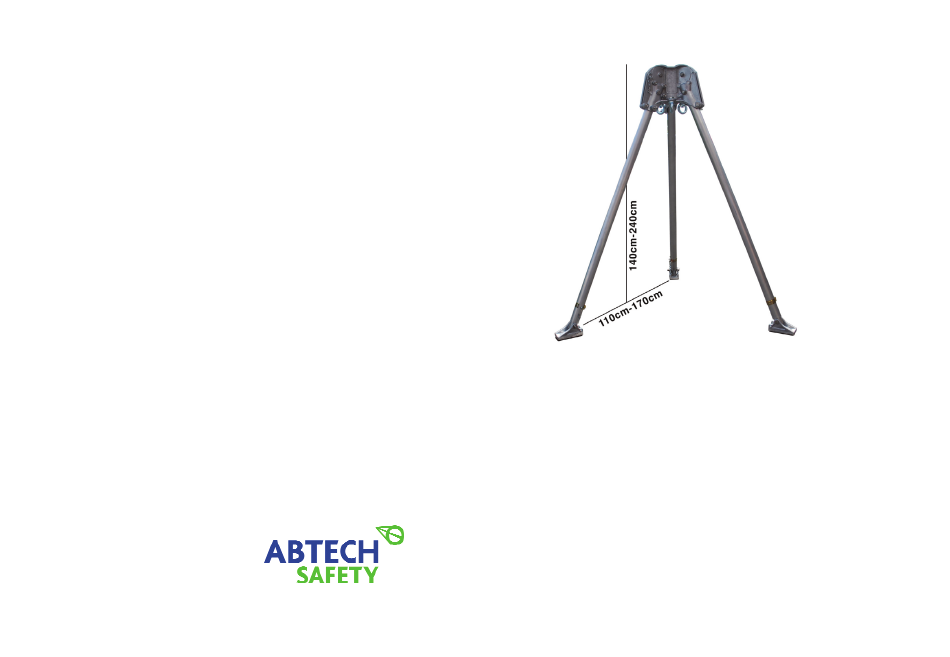

T3 TRIPOD
This Tripod is intended to be used as an anchor point for both fall arrest and for raising and
lowering of equipment and personnel. When used as part of a fall arrest system the tripod is
for one user only and the user will be equipped with means of limiting the maximum dynamic
arrest force to 6kN. The Working Load Limit for this equipment is 250 Kilos (8:1 ratio). Any load
should not be extended beyond the tripod foot print. The Tripod is the basis of a confined
space entry and rescue system. The three overhead pulleys can all accommodate rope up to
11mm diameter. The Tripod is to be used over access holes and is to be used as the anchor
point for systems which enable access, egress and fall protection. All equipment used with the
Tripod must be approved to the relevant standard.
Instructions
Carry out all adjustments to tripod before positioning over the access point.
Erection: Firmly open the legs of the Tripod ensuring that the leg pins lock into position.
To raise the height of the Tripod remove a leg clip, pull out the lower leg and push the leg clip
through the leg location hole in both the upper and lower leg. Repeat on the remaining legs. If
the tripod is being used on an uneven surface the height of each leg may be adjusted to
compensate.
The user must not approach the access point unless wearing a harness and safely anchored.
The documentation issued with this Tripod (user manual and product record card) must be
retained. The record card should have recorded upon it the inspection regime.
CONFORMS TO:
BS EN795:2012 TYPE B
PRODUCT CODE: T3
All users should read and understand these
instructions.
All users should be suitably trained to use this
equipment. No person should use this
equipment unless they have been trained to do
so. Any user must be aware of the hazards and
limitations associated with this type of
equipment.
