b2 electronic PD Series User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

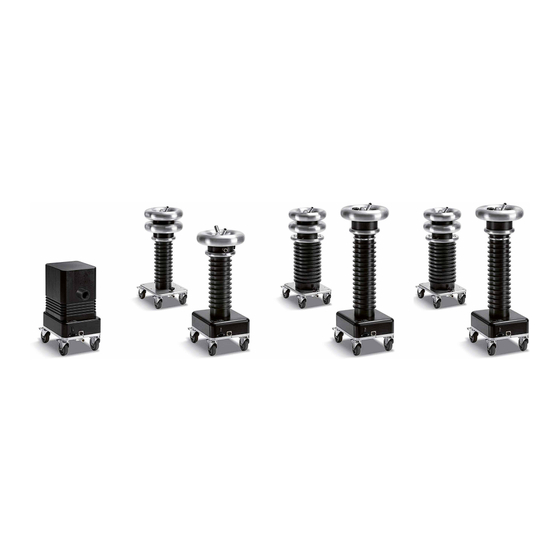

PD Family

PD30-E | PDTD60-2 | PDTD90-2 |

PDTD120-2 | PDTD200-2

ENGLISH

DHV0088 Rev02

b2 electronic GmbH

Riedstrasse 1

6833 Klaus

Austria

T +43 (0) 5523 57373

F + 43 (0) 5523 57373-5

www.b2hv.com

info@b2hv.com

ZERTIFIZIERT

EN ISO 9001

ZERTIFIKAT NR. 20 100 92003758

TÜV AUSTRIA CERT GMBH

Subject to alterations -

User Manual

errors excepted

Illustations are not binding.

Table of Contents

Need help?

Do you have a question about the PD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for b2 electronic PD Series

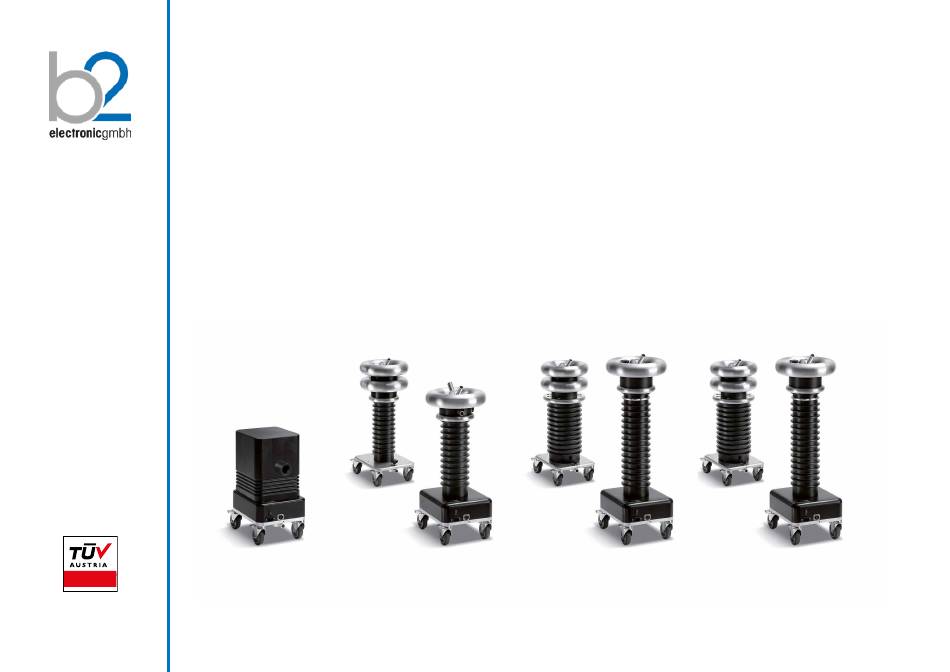

Page 1 PD Family PD30-E | PDTD60-2 | PDTD90-2 | PDTD120-2 | PDTD200-2 ENGLISH DHV0088 Rev02 b2 electronic GmbH Riedstrasse 1 6833 Klaus Austria T +43 (0) 5523 57373 F + 43 (0) 5523 57373-5 www.b2hv.com info@b2hv.com ZERTIFIZIERT EN ISO 9001 ZERTIFIKAT NR. 20 100 92003758 TÜV AUSTRIA CERT GMBH...
Page 3: Table Of Contents
4.12 PDTD-2 Disconnection -> PD Measurement Design & Construction Layout & Cable Connection - Overview 5 Instrument Care PC Software Operation Modes 6 Glosary and Abbreviations 3.10 Test Modes 3.11 Output Modes 7 Declaration of Conformity © b2 electronic GmbH DHV0088...
Page 5: Forward
Management required equipment uct description. • To assure that operators are qualified technicians • To assure that operators fulfil their responsibilities Safekeeping NOTICE This manual should always be on hand when using one of the PD test instrument with the b2 Suite. © b2 electronic GmbH DHV0088...
Page 6: Documentation Conventions
Indicates a hazardous situation which if not avoided could result in death or serious injury. Caution CAUTION Indicates a hazardous situation which if not avoided could result in minor or moderate injury. Notice NOTICE Indicates suggested practices to protect equipment and property. © b2 electronic GmbH DHV0088...
Page 7 Red outlined circle with red diagonal line: Used to indicate forbidden practices. The described handling practice must not be carried out! Blue circle with white exclamation mark: Used to indicate recommended precau- tionary measures or a situation that can lead to property damage. © b2 electronic GmbH DHV0088...
Page 8: Legal Considerations
T +43 (0)5523 57373 | F +43 (0)5523 57373-5 www.b2hv.at | info@b2hv.at Copyright © 2016 b2 electronic GmbH All rights reserved. No part of this publication may be reproduced, transmitted, stored, or translated in hardcopy or electronic form without the written consent of b2.
Page 9 Register now and get access to a quick and comprehensive support and product data base. The b2 Customer Portal is reserved for b2 electronic customers. Submit the registration and find: • Information about meetings and training sessions • Documents and Manuals • New Soft- or Firmware versions • Support and Service requests • Send messages • Request Newsletters © b2 electronic GmbH DHV0088...
Page 10: Safety
• All cables and connectors must be inspected for damage before use. Damaged equipment must not be used. • Earth connections must be made first and removed last! • DUT must be discharged and earthed before disconnecting the test lead. • Avoid testing alone. In the event of an emergency another person’s presence may be essential. • Don’t touch the PD during the test and before you didn’t have grounded the DUT and the filter. • The metal frame is under High Voltage during High Voltage Test © b2 electronic GmbH DHV0088...
Page 11 Safety DANGER Don’t touch the PD during the test and before you didn’t have grounded the DUT and the filter. The whole PD unit is under High Voltage during High Voltage Test! © b2 electronic GmbH DHV0088...
Page 12 Testing vacuum bottles, above their voltage rating, with DC can produce dangerous X-rays. NOTICE Equipment Handling DUT must have clean connections. Test instruments must only be repaired or modified by authorized b2 personnel. NOTICE If required according to local safety regulations Wear high voltage gloves when handling high voltage cables and equipment. © b2 electronic GmbH DHV0088...
Page 13: Appropriate Applications
Before proceeding, contact b2 to validate appropriate use! 2.4 Operator Qualifications HVA/PD operators must be qualified electrical technicians! Proof of necessary qualifications for working in high voltage do- main is mandatory. It is highly recommended that operators have completed an emergency rescue training program. © b2 electronic GmbH DHV0088...
Page 14: General Description
The 1st pulse only indicates that there is a discharge on the cable. By examining the rise times of the calibration pulse and this PD pulse it is possible to determine if it is from the near end termination or not. © b2 electronic GmbH DHV0088...
Page 15: Partial Discharge Unit
With PDTD-2 - VLF testing, PD diagnostics and TD diagnostics can be carried out simultaneously! b2 electronic Diagnostics System PDTD-2 provides a pure sinusoidal output voltage with extremely stable frequencies. This is a pre-condition of direct comparison of PD and TD diagnostics results across cables of different lengths. The characteristics at ever-changing frequencies and varying output voltage waveforms provide no basis for reliable comparisons. For the 0.1 Hz diagnosis with true sinusoidal output voltages, various standards (such as IEEE400.2-2013,..) provide clear guidelines and...
Page 16: Technical Specifications
PD resolution 0.1 pC, 0.1 m Sample rate 200 MS/s Bandwith 100 MHz, analog filter Signal amplification 0-52 dB (1 channel) , 0-72 dB (2 channel) Environment temperature: storage -20°C to + 65°C, operating -5°C to + 45°C © b2 electronic GmbH DHV0088...
Page 17 0.1 Hz, 0.01 to 0.1 Hz Measuring range 0.1 x 10 -999 x 10 resolution 1 x 10 Tan Delta Measurement accuracy ± 1 x 10 Load range 500 pF to 10 µF 1 nF to 10 µF © b2 electronic GmbH DHV0088...
Page 18: Materials - Shipment Content
Corona Shield Two-Part, Min. Clearance MC14/M8 Distance = 10 mm GH1009 Earth Lead 5 m 16 mm² flat transparent XKEK0001 Power Cord EF/C13 10 A 3 m black M6/Clamp Software GH0900 b2 Suite Software v1.8 GS0003 b2 Suite Dongle Complete (Basic, PD and TD Diagnostics) © b2 electronic GmbH DHV0088...
Page 19 Offset Screwdriver Torx Tx10 KES0021 Dolphin Clip 32 A 4 mm Jack Red Manuals and Documents KDD0030 USB Pen Flash Drive DHV0073 PDC1 PDC2 Manual (English) DHV0048 b2 Suite Software Manual (English) DHV0088 PD Manual (English) DHV0047 Calibration Certificate © b2 electronic GmbH DHV0088...
Page 20 737 x 457 x 349 mm incl. Inlay PD90-2 Accessories Cables GH0830 Earth Lead 0.5 m 16 mm² flat transparent GH1010 Earth Lead 5 m 16 mm² flat transparent MC14/MC14 MC14/Clamp Transport cases VKR0031 PD60-2 Transport Case Filter VKR0035 PDTD90-2 CC Transport Case incl. 737 x 457 x 349 mm incl. Inlay Inlay © b2 electronic GmbH DHV0088...
Page 21 M0022 Battery 1,5 V 20700 mAH Size D Mono Transport cases VKR0030 PD60-2 Transport Case CC VKR0031 PD60-2 Transport Case Filter 737 x 457 x 349 mm 737 x 457 x 349 mm incl. Inlay © b2 electronic GmbH DHV0088...
Page 22 GH1010 Earth Lead 5 m 16 mm² flat transparent MC14/MC14 MC14/Clamp TD Accessories KDG0013 Bluetooth USB Adapter 100 m KEB0006 REchargeable battery Mono D, Ni-MH 1,2 V/10000 mAh2 KN0009 Charger for Rechargeable Battery M0022 Battery 1,5 V 20700 mAH Size D Mono © b2 electronic GmbH DHV0088...
Page 23 Corona Ring for DUT KEB0006 Battery rech.Ansmann Akku Mono D, Ni-MH 1,2 V / 1000 mAh Blister, 2 pcs KN0009 Charger for Rechargeable Battery (Ans- KDG013 Bluetooth USB Adapter 100 m mann Powerline 5 LCD) © b2 electronic GmbH DHV0088...
Page 24 USB Pen Flash Drive DHV0073 PDC1 PDC2 Manual (English) DHV0048 b2 Suite Software Manual (English) DHV0088 PD Manual (English) DHV0047 Calibration Certificate Software GH0900 b2 Suite Software v1.8 GS0003 b2 Suite Dongle Complete (Basic, PD and TD Diagnostics) © b2 electronic GmbH DHV0088...
Page 25: Accessory (Optional)
General Description 3.5 Accessory (Optional) These Accessories aren’t included in scope of supply of the PD-Systems. These positions are only available on order. For enquiries please contact your local distributor or b2 electronic GmbH. Art. No. Item Picture Art. No. Item Picture GH0574 PD90 MC14 DUT Test Lead 100 kV TD SE0010 Test adaptor 10/20 kV l=950 mm for SF6...
Page 26: Design & Construction
General Description 3.6 Design & Construction PD30-E PDTD60-2 / PDTD90-2 / PDTD120-2 PDTD-2 CC PD-2 Filter © b2 electronic GmbH DHV0088...
Page 28 General Description HVA Family 1st Generation HVA - smart VLF (HVA34 | HVA60 | HVA90 | HVA120 | HVA54-5) (HVA28TD, HVA45TD) MC Contact The MC-Locking system (AR) operates on the „push-pull“ principle. It is selflocking when connected. Disconnection is effected by an axially displaceable coupling ring: first push, then pull to disconnect. © b2 electronic GmbH DHV0088...
Page 30: Layout & Cable Connection - Overview
• Screw HV test lead into the HVA output connector HV connector Serves as connection point from the PD-2 Filter to the HVA or PD-2 Filter from Filter to PD-2 CC via HV test lead. • Plug HV test lead into the HV connector © b2 electronic GmbH DHV0088...
Page 31 Cable for Guard correction Guard Connection Guard Connection on HV HV connection for Guard cable (M6 thread in HV cable plug) if no leakage current correction needed 1 Can be used as input or output connector © b2 electronic GmbH DHV0088...
Page 32 Plug for communication cable between PD-2CC / PD30-E and PC Communication via USB cable PD Battery Battery compartment PDTD-2 HVA-USB Connection PC-USB connection between HVA b2 Dongle-USB Connection PC-USB Dongle (Software dongle) PD-USB Connection PC-USB connection between PC&PD PC-Bluetooth Communication PC-USB Bluetooth Dongle © b2 electronic GmbH DHV0088...
Page 33 Please Note: TD measurement unit is battery operated no mains supply and no automatic charging of TD unit batteries PD-2 CC/PD30-E Calibrator Connection for calibrator Connection DUT Calibrator Connection Connection in corona shields to connect calibrator © b2 electronic GmbH DHV0088...
Page 34 Discharge Stick Tip of Discharge Stick, resistors in serial to discharge energy Discharge Stick Hook of discharge for grounding (earthing) – direct short PD impedance 3,9kOhm; MC Additional PD Filter (from accessories) male - MC female © b2 electronic GmbH DHV0088...
Page 35: Pc Software
PDF document. Some settings like Date and Time can be synchronised for user convenience. You can start and manage tests directly from the PC and a live status information is shown on the screen. © b2 electronic GmbH DHV0088...
Page 36: Operation Modes
The following describes the scope of each PD operation modes: Test Modes, Output Modes (Waveform) and Data Transfer Modes. 3.10 Test Modes The PDTD units can be operated in “Manual” or “Automatic” mode (remote controlled with the b2 Suite Software). For detailed procedure, see DHV0048 b2 Suite Manual. 3.11 Output Modes AC (VLF) Symmetrical and load independent across full range DC (plus or negative polarity) © b2 electronic GmbH DHV0088...
Page 38: Pd Test Setup
PD Test Setup PD Test Setup 4.1 PD30-E Test Setup -> PD Measurement PD30-E HVA28 Mains Mains © b2 electronic GmbH DHV0088...
Page 39 PC for b2 Suite Software GH0900 Verify Connections • Check that all cables are attached securely. Turn key switch to the “ON” position NOTICE Establish secure earthing via connection Connect HVA main earth lead first and remove last! for longer distance GH0550/ GH0551) © b2 electronic GmbH DHV0088...
Page 40: Pdtd-2 Setup -> Pd Measurement
PD Test Setup 4.2 PDTD-2 Setup -> PD Measurement PDTD-2 CC PD-2 Filter Mains Mains NOTICE Establish secure earthing via connection Connect HVA main earth lead first and remove last! © b2 electronic GmbH DHV0088...
Page 41 Verify Connections • Check that all cables are attached securely. Turn on all units • Turn “ON” HVA main switch • Turn key switch from HVA to the “ON” position • Turn “ON” PD main switch except using HVA54-5, for longer distance GH0550/ GH0551), dependig on type of HVA © b2 electronic GmbH DHV0088...
Page 42: Pdtd-2 Setup -> Pd And Td Measurement
PD Test Setup 4.3 PDTD-2 Setup -> PD and TD Measurement PDTD-2 CC PD-2 Filter Mains Mains NOTICE Establish secure earthing via connection Connect HVA main earth lead first and remove last! © b2 electronic GmbH DHV0088...
Page 43 • Check that all cables are attached securely. Turn on all units • Turn “ON” HVA main switch • Turn key switch from HVA to the “ON” position • Turn “ON” PD main switch • Turn “ON” TD main switch except using HVA54-5, for longer distance GH0550/ GH0551), dependig on type of HVA © b2 electronic GmbH DHV0088...
Page 44: Pdtd-2 Setup -> Pd And Td Measurement With Extension Cable (And Leakage Current Correction)
PD Test Setup 4.4 PDTD-2 Setup -> PD and TD Measurement with extension cable (and leakage current Correction) NOTICE Establish secure earthing via connection Connect HVA main earth lead first and remove last! © b2 electronic GmbH DHV0088...
Page 45 • Check that all cables are attached securely. Turn on all units • Turn “ON” HVA main switch • Turn key switch from HVA to the “ON” position • Turn “ON” PD main switch • Turn “ON” TD main switch except using HVA54-5, for longer distance GH0550/ GH0551), dependig on type of HVA © b2 electronic GmbH DHV0088...
Page 46: Pdtd-2 Setup -> Pd Measurement (No Leakage Current Correction)
PD Test Setup 4.5 PDTD-2 Setup -> PD Measurement (no leakage current correction) 22 14 PDTD-2 CC PD-2 Filter Mains Mains NOTICE Establish secure earthing via connection Connect HVA main earth lead first and remove last! © b2 electronic GmbH DHV0088...
Page 47 • Check that all cables are attached securely. Turn on all units • Turn “ON” HVA main switch • Turn key switch from HVA to the “ON” position • Turn “ON” PD main switch • Turn “ON” TD main switch except using HVA54-5, for longer distance GH0550/ GH0551), dependig on type of HVA © b2 electronic GmbH DHV0088...
Page 48: Pdtd-2 Setup -> Pd Measurement - Extension Between Filter And Cc
PD Test Setup 4.6 PDTD-2 Setup -> PD Measurement – Extension between Filter and CC PDTD-2 CC PD-2 Filter Cable Reel Mains Mains Mains Cable Reel NOTICE Establish secure earthing via connection Connect HVA main earth lead first and remove last! © b2 electronic GmbH DHV0088...
Page 49 • Check that all cables are attached securely. Turn on all units • Turn “ON” HVA main switch • Turn key switch from HVA to the “ON” position • Turn “ON” PD main switch • Turn “ON” TD main switch except using HVA54-5, for longer distance GH0550/ GH0551), dependig on type of HVA © b2 electronic GmbH DHV0088...
Page 50: Pdtd-2 Setup -> Pd Measurement - Using Guard Compensation
PD Test Setup 4.7 PDTD-2 Setup -> PD Measurement - Using Guard Compensation PDTD-2 CC PD-2 Filter Mains Mains NOTICE Establish secure earthing via connection Connect HVA main earth lead first and remove last! © b2 electronic GmbH DHV0088...
Page 51 Verify Connections • Check that all cables are attached securely. Turn on all units • Turn “ON” HVA main switch • Turn key switch from HVA to the “ON” position • Turn “ON” PD main switch except using HVA54-5, for longer distance GH0550/ GH0551), dependig on type of HVA © b2 electronic GmbH DHV0088...
Page 52: Pdtd200-2 Setup -> Pd Measurement
PD Test Setup 4.8 PDTD200-2 Setup -> PD Measurement Mains Mains NOTICE Establish secure earthing via connection Connect HVA main earth lead first and remove last! © b2 electronic GmbH DHV0088...
Page 53 Verify Connections • Check that all cables are attached securely Turn on all units • HVA200 Display • Turn key switch (on the Control Box) to the “ON” position The HVA system automatically boots. • Control the HVA with the b2 Suite Software © b2 electronic GmbH DHV0088...
Page 54: Pd Calibrator Test Setup
PD Test Setup 4.9 PD Calibrator Test Setup Step PD Calibration Setup Art.Nr. Connect PD Calibrator GH0705 • between PD-2 CC and DUT KEK0091 © b2 electronic GmbH DHV0088...
Page 55: Disconnection Procedure
• Before disconnecting test lead, DUT must be discharged and earthed. • Earth connections must be removed last! Disconnection procedure should be performed in reverse order than connection procedure. Make sure that system and DUT is properly discharged and earthed (see procedure 7.1.1 using a discharge stick). Switch off systems (disconnect from voltage supply) and pull off the mains plugs. Disconnect all cables and earth wires lastly. Carefully examine the cable of possible dam- ages and remove dirt if necessary. Establish a short-circuit connection to the coupling capacitor and the filter. © b2 electronic GmbH DHV0088...
Page 56: Disconnection Failure
In case of errors or failure due to a loss of power during testing, additional precaution is required. The HVA LED red light cannot indicate when residual voltage is less than 100V. To guarantee that the residual voltage has dissipated before removing the test lead, the DUT must be de-energized using a discharge stick. © b2 electronic GmbH DHV0088...
Page 57 Disconnect all Earth cables • Establish a short-circuit connection to the coupling capacitor and to the filter and make sure that the short-circuit connection remains also during transportation. • Disconnect HVA eathing cable GH0522 • Disconnect earthing cable between PD-2 Filter and PD-2 CC and ground GH0575&GH0576 • Disconnect earthing cable from DUT GH0576 © b2 electronic GmbH DHV0088...
Page 58: Pdtd-2 Disconnection -> Pd Measurement
PD Test Setup 4.12 PDTD-2 Disconnection -> PD Measurement © b2 electronic GmbH DHV0088...
Page 59 Disconnect all Earth cables • Establish a short-circuit connection to the coupling capacitor and to the filter and make sure that the short-circuit connection remains also during transportation. • Disconnect HVA eathing cable GH0522 • Disconnect earthing cable between PD-2 Filter and PD-2 CC and ground GH0575&GH0576 • Disconnect earthing cable from DUT GH0576 © b2 electronic GmbH DHV0088...
Page 60: Instrument Care
(no cellulose thinner or acetone). Do not clean with electrical devices water and do not allow any liquids to leak into the devices. Notice: Maintenance of the system must be carried out only by authorised and qualified personnel. The user is liable for dam- ages caused due to improper care or maintenance. © b2 electronic GmbH DHV0088...
Page 61 -25°C to 70°C • Humidity: 5-85% non condensing Maintenance and Repairs NOTICE Authorized personnel only! Repairs and maintenance should only be performed by authorized b2 personnel. One yearly inspection by authorized b2 personnel is recommended © b2 electronic GmbH DHV0088...
Page 62: Glosary And Abbreviations
High Voltage: Voltage levels used in power distribution: • Medium Voltage: up to 36 kV • High Voltage: up to 110 kV • Extremely High Voltage: 220 kV, 380 kV or higher (according to IEC/International Electro- technical Vocabulary) © b2 electronic GmbH DHV0088...
Page 63 (Infinite current flows in a short circuit) To Trip Opening the circuit (no current flows in open circuit) Sheath Fault Location Sheath Test Tan Delta TDTS Tan Delta Time Stability (TD Temporal Stability) Differential Tan Delta Very Low Frequency • Typically between 0.01 -0.1 Hz © b2 electronic GmbH DHV0088...
Page 64: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity The PD units PD30-E, PDTD60-2, PDTD90-2, PDTD120-2, PDTD200-2 areCE certified and has met the following requirements of the Eu- ropean Council: © b2 electronic GmbH DHV0088...

This manual is also suitable for:

Pd30-e Pdtd60-2 Pdtd90-2 Pdtd120-2 Pdtd200-2
