C200 DRIVE SETUP GUIDE
FOR RM-269-129-.3 ELECTRICAL PACKAGE

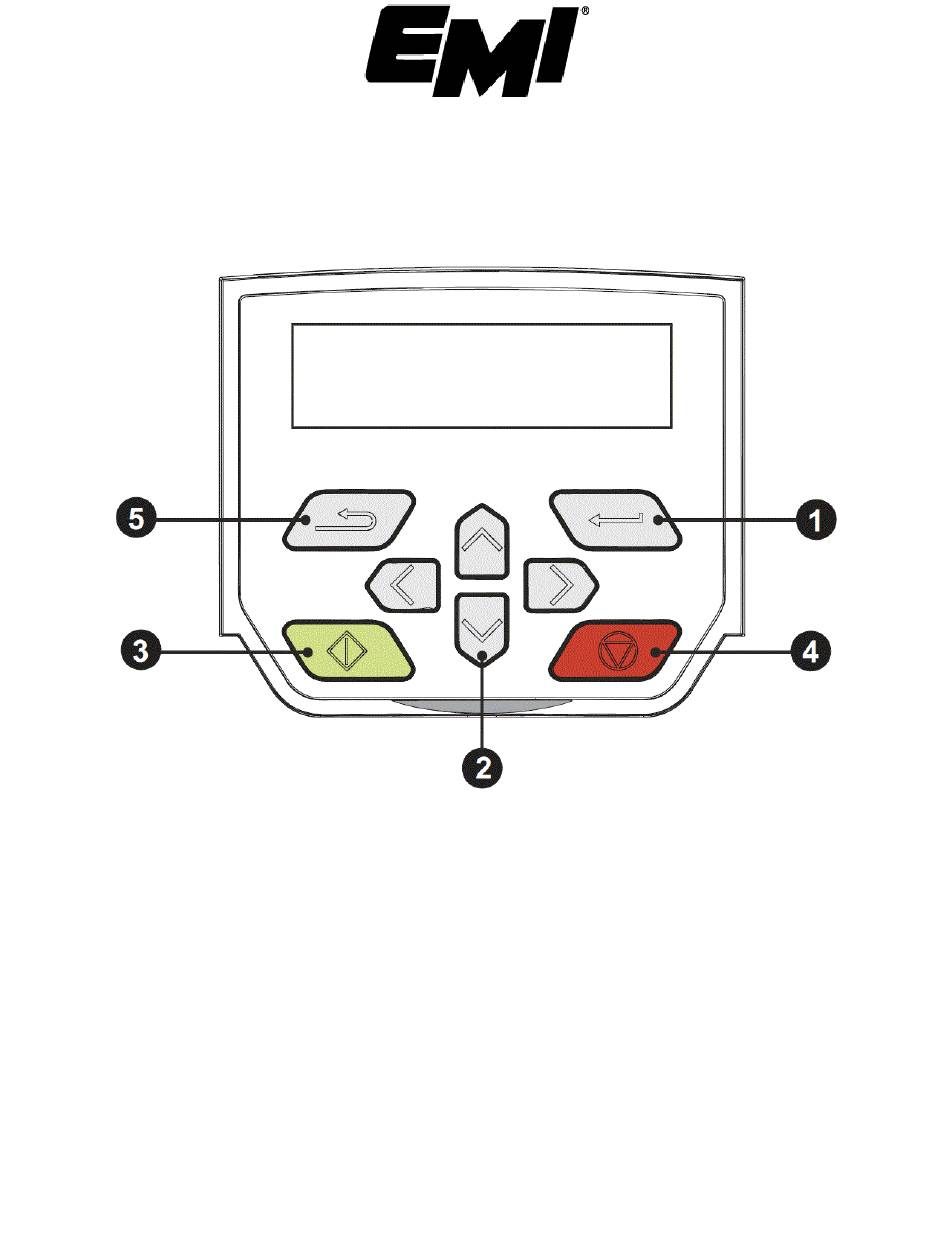

- C200 Keypad Descriptions

1. The Enter button is used to enter parameter view or edit mode, or to accept a
parameter edit.
2. The Navigation buttons can be used to select individual parameters or to edit
parameter values. In keypad mode, the Up and Down keys are also used to
increase or decrease the motor speed.
3. The Start button (green) is used to start the drive in keypad mode.
4. The Stop / Reset button (red) is used to stop and reset the drive in keypad
mode. It can also be used to reset the drive in terminal mode.
5. The Escape button is used to exit from the parameter edit / view mode or
disregard a parameter edit.
28300 Euclid Avenue Wickliffe, Ohio 44092 • Phone: 216-535-4848

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C200 and is the answer not in the manual?

Questions and answers

Summary of Contents for EMI C200

  • Page 1 C200 DRIVE SETUP GUIDE FOR RM-269-129-.3 ELECTRICAL PACKAGE - C200 Keypad Descriptions 1. The Enter button is used to enter parameter view or edit mode, or to accept a parameter edit. 2. The Navigation buttons can be used to select individual parameters or to edit parameter values.
  • Page 2 - C200 INDEX/REVERSE BYPASS (RUN VFD VIA KEYPAD ONLY) 1. From main run screen access parameter view by pressing the Enter button 2. After parameter view mode is entered, scroll through to view the parameters with the Up and Down keys 3.
  • Page 3 - C200 MOMENTARY OR MAINTAINED SIGNALS SELECTION 5. From main run screen access parameter view by pressing the Enter button 6. After parameter view mode is entered, scroll through to view the parameters with the Up and Down keys 7. Scroll to parameter 00.011 where the momentary/maintained bit is located for access c.
  • Page 4 - C200 FORWARD TIMER SETUP (SECONDS WITH MILLISECONDS) 1. From main startup screen access parameter view by pressing the Enter button 2. After parameter view mode is entered, scroll through to view the parameters with the Up and Down keys 3.
  • Page 5 - C200 REVERSE TIMER SETUP (SECONDS WITH MILLISECONDS) 1. From main startup screen access parameter view by pressing the Enter button 2. After parameter view mode is entered, scroll through to view the parameters with the Up and Down keys 3.
  • Page 6 - C200 PARAMETER SET LIST (ALL OTHERS ARE FACTORY PRESET) 00.001 = 0.00 Hz 00.002 = 60.00 Hz 00.003 = 5.0 s 00.004 = 0.5 s 00.005 = Keypad Ref 00.006 = 1.50 A 00.007 = 1725.0 rpm 00.008 = 230 V 00.009 = 0.85...
  • Page 7 - C200 FORWARD/REVERSE INTERFACE CONNECTIONS Illustration above shows connections for (NORMALLY OPEN DRY CONTACTS) from external equipment. NOTE: If external equipment is supplying 24VDC signals for index/reverse signals wire #1 will not be used. Wire according to below: a. Wire #8 (control wire #99) will go to external equipment 0VDC (NEUTRAL) b.
