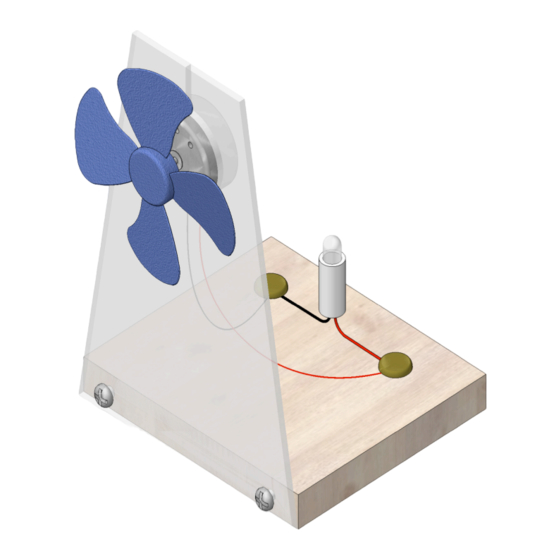

Easy-Line Wind Generator
Stocklist
Plywood
Acrylic Glass
Low Voltage LED blue
Motor
Windmill
Screw
Drawing Pin
1
116.655
The OPITEC handicraft packs are not toys in a typical off-the-shelf
sense, but rather additional teaching and learning material for edu-
cational purposes. This craft pack may only be constructed by child-
ren and adolescents under the guidance and supervision of experi-
enced adults. Not suitable for children under 36 months. Choking
Quantity
Size (mm)
1
80 x 70 x 10
1
115 x 80 x 2
2
ø 5
1
2-polig
1
ø 60
2
2,9 x 13
2
Tools required:
Hammer
Philips
Screwdriver
Please note:
hazard!
Description
Baseplate
Motor Holder
Lamp
Generator
Windmill
Attachment
Attachment
Part-Nr.
1
2
3
4
5
6
7
Advertisement
Related Manuals for Opitec Easy-Line Wind Generator 116.655
Summary of Contents for Opitec Easy-Line Wind Generator 116.655
- Page 1 Philips Screwdriver Please note: The OPITEC handicraft packs are not toys in a typical off-the-shelf sense, but rather additional teaching and learning material for edu- cational purposes. This craft pack may only be constructed by child- ren and adolescents under the guidance and supervision of experi- enced adults.
- Page 2 Construction Manual 116.655 Easy-Line Wind Generator 1 Fix the prefabricated acrylic plate (2) to the broad sides of the ply- 2 Mount the motor (4) from behind into the opening of the acrylic wood baseplate (1) by using the two screws (6). plate as depicted.
