Basalte FIBONACCI RS485 Installation Manual

FIBONACCI RS485
Installation Manual
0272-01-xx

Description

Fibonacci RS485 is a touch-sensitive keypad with a unibody design which combines electronics and cover in
one single article. Fibonacci RS485 is compatible with the Basalte Serial.link.
The separate touch-sensitive surfaces of Fibonacci each control various functions, using both short and long
press.
By touching more than one surface at the same time (multitouch), additional comfort functions can be
activated including room toggle and scene sequencer. The multicolour LED backlight provides status feedback
and can be used as night light.
Fibonacci also has a built-in temperature sensor.
Model No.
0272-01-XX Fibonacci dual RS485
0274-01-XX Fibonacci quad RS485
A RGB LED
B Temperature sensor
C Label back light

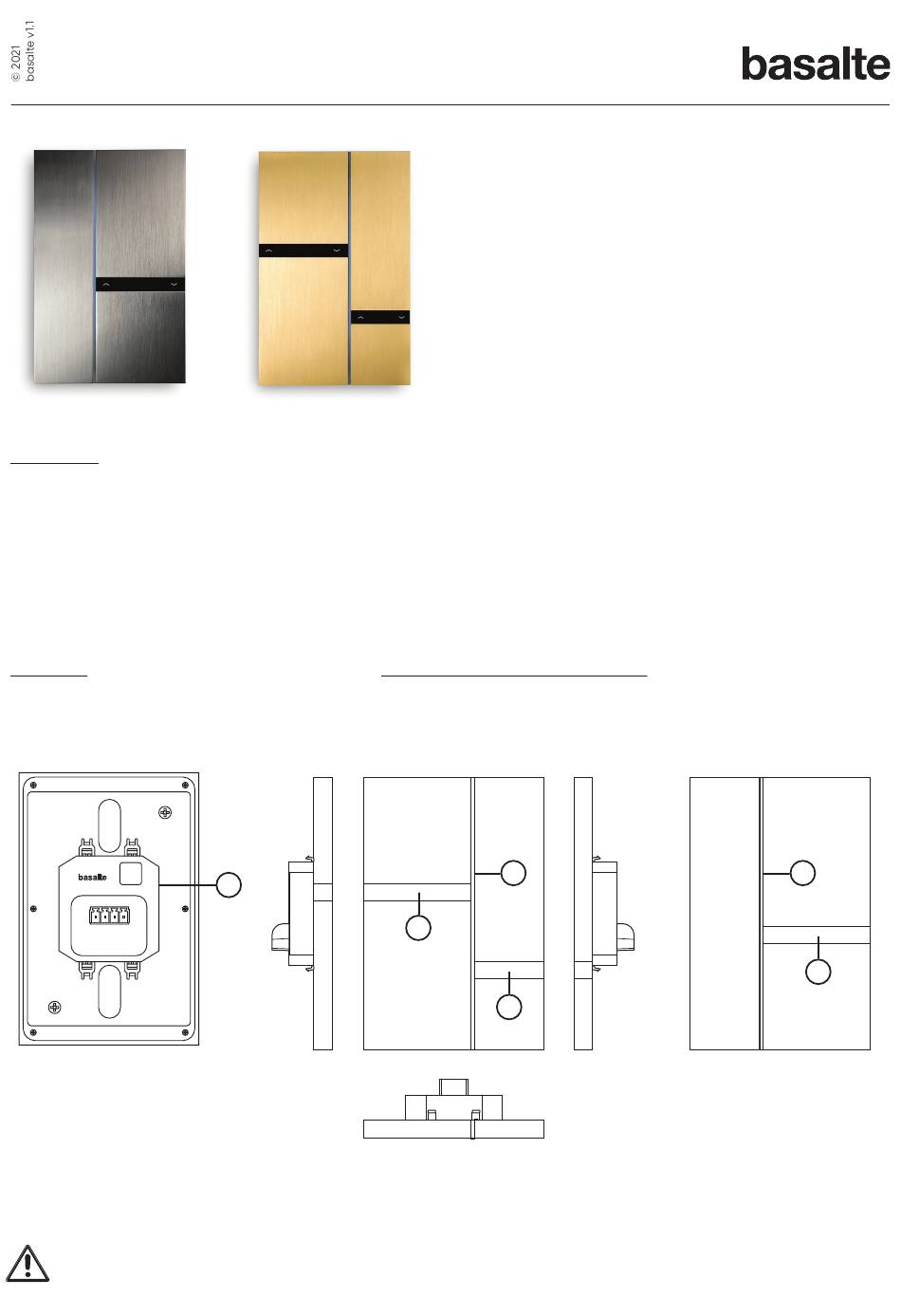

* Please review the above drawing to understand how Fibonacci keypad buttons are numbered in Serial.link
configuration.
Fibonacci is designed to be wall mounted in portrait orientation. Fibonacci RS485 requires a minimum
in-wall mounting depth of 26mm plus room for cable(s).
0274-01-xx
Compatible Fibonacci accessories
0272-00 Fibonacci custom dual label set
0274-00 Fibonacci custom quad label set
(*) contact your sales representative to order custom label
*1
B
*2
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
*3
A
C
C
*4
sets
*2
A
C
*1
