RTI MS-1 Setup

Hide thumbs Also See for MS-1:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
Overview ......................................................................................................................................................................... 1
Getting Started ................................................................................................................................................................ 1
Launch the RTI Music Configuration Utility ..................................................................................................................... 2
Connect to the MS1 / MS-3 ............................................................................................................................................. 3
Check Connectivity Status ............................................................................................................................................... 3
Update the MS-1 / MS-3 Firmware ................................................................................................................................. 5
Update the License .......................................................................................................................................................... 5
Reboot the MS-1 / MS-3 ................................................................................................................................................. 6
I.
Add a NAS Drive to the MS-1 / MS-3 (Via DLNA or Manually) ........................................................................................ 6
A. Overview

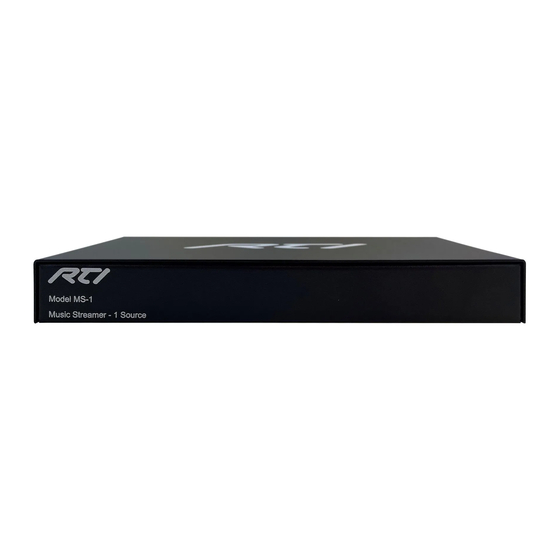

Learn how to set up the MS1 or MS-3 Music Streamer in a hassle-free and convenient way.
B. Getting Started
Before setting up the MS-1 / MS-3 make sure you are completely up to date with all the necessary
software and firmware.
1. Update your processor's Firmware
2. Update all your controllers' Firmware
3. Update the Integration Designer software to the latest version
4. Update your RTI Panel App on the respective App store
MS-1 / MS-3 Music Streamer Setup
1 |
P a g e
8/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTI MS-1

Summary of Contents for RTI MS-1

  • Page 1: Table Of Contents

    Learn how to set up the MS1 or MS-3 Music Streamer in a hassle-free and convenient way. B. Getting Started Before setting up the MS-1 / MS-3 make sure you are completely up to date with all the necessary software and firmware.

  • Page 2: Launch The Rti Music Configuration Utility

    Click the “Windows Start” Button on the bottom left corner of your monitor then click on “All Apps”, scroll down to the Apps that start with an “R” and click “RTI Music Configuration” to launch it. P a g e...

  • Page 3: Connect To The Ms1 / Ms-3

    MS-1 / MS-3 Music Streamer Setup D. Connect to the MS1 / MS-3 Your computer needs to be in the same network as the MS- 1/ MS-3 to be able to connect to it for the setup procedure. Once you launched the RTI...
  • Page 4 If you still get the “Unable to Communicate …” message, take these additional steps: 1. Launch the MS-1 / MS-3 configuration utility from the “RTI Music Configuration” in the start menu. 2. In the MS-1 / MS-3 configuration utility, select “Manage” then select “Network”.

  • Page 5: Update The Ms-1 / Ms-3 Firmware

    1. Select “Action” 2. Select “Check for Updates” G. Update the License Make sure the Manufacturer is listed as RTI and the software version is 21.9.6.0 or higher. 1. Select “Utility” then select “View License” 2. Click “Refresh from Internet”...

  • Page 6: Reboot The Ms-1 / Ms-3

    H. Reboot the MS-1 / MS-3 1. Select “Action” then select “Reboot” 2. Click “Reboot Now” I. Add a NAS Drive to the MS-1 / MS-3 (Via DLNA or Manually) Method 1: Adding a NAS Drive using DLNA 1. Select “Manage” then select “DLNA/UPnP Music Servers”...
  • Page 7 Method 2: Manually Adding a NAS Drive A NAS (Network Attached Storage) is a convenient way to access local music through the MS-1 / MS-3 Music Streamer. You can browse and search music on a NAS drive just like with any music streaming service.
  • Page 8 SMB version from 1.0 to 2.0 or 3.0 if the credentials are not being accepted. After entering the requested information, connect the MS-1 / MS-3 to the correct directory on the NAS drive. 4. Select “Manage” then select “Media Server” then select “Media Locations”...
  • Page 9 10. Click “Apply” to complete the process. Close the Media Locations window. The MS-1 / MS-3 Music Streamer is now scanning the music library. This can take some time depending on how large the music library is. However, your RTI Music Streamer is now ready to play music.
