Summary of Contents for Festival Depot PF19133
- Page 2 Packing List PF19133 R 1pc S 1pc T 1pc N 1pc M6*15 M6*30 O 4pcs F 4pcs P 2pcs Q 12+3pcs G 14+4pcs M6*35 Ø13*Ø6.5*1.0T Ø16*Ø8.5*1.0T Ø16*Ø8.5*3.0T H 2+1pcs I 28+6pcs J 4+1pcs K 4+1pcs L 4+1pcs Za 1pc Zb 1pc...
- Page 3 ASSEMBLY INSTRUCTIONS PF19133 R 1pc S 1pc T 1pc N 1pc M6*15 M6*30 M6*35 O 4pcs F 4pcs P 2pcs Q 12pcs G 14pcs H 2pcs Ø13*Ø6.5*1.0T Ø16*Ø8.5*1.0T Ø16*Ø8.5*3.0T I 28pcs J 4pcs K 4pcs L 4pcs Za 1pc Zb 1pc ASSEMBLY TIPS: Please use the hardware and accessories included in the set.

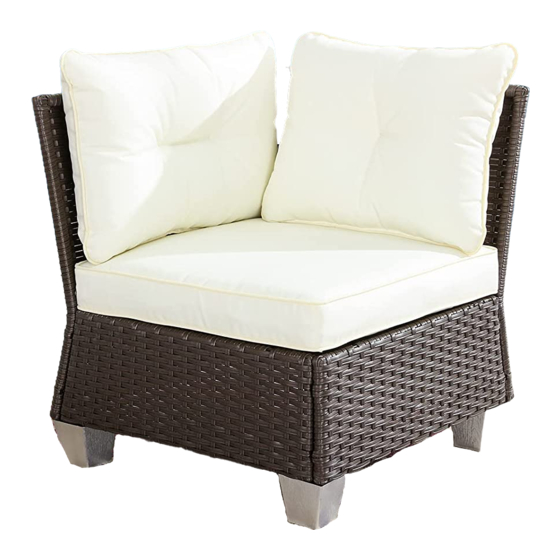

- Page 4 ASSEMBLY INSTRUCTIONS PF19133 Please make sure that F is parallel to the bottom frame, so that the set can be installed beautifully and standardly. If you buy this series of corner sofa/left armrest sofa/right armrest sofa/non-armrest sofa at the same time, you can connect them with parts Q, I and P.
