Summary of Contents for AVE DUBHE E700

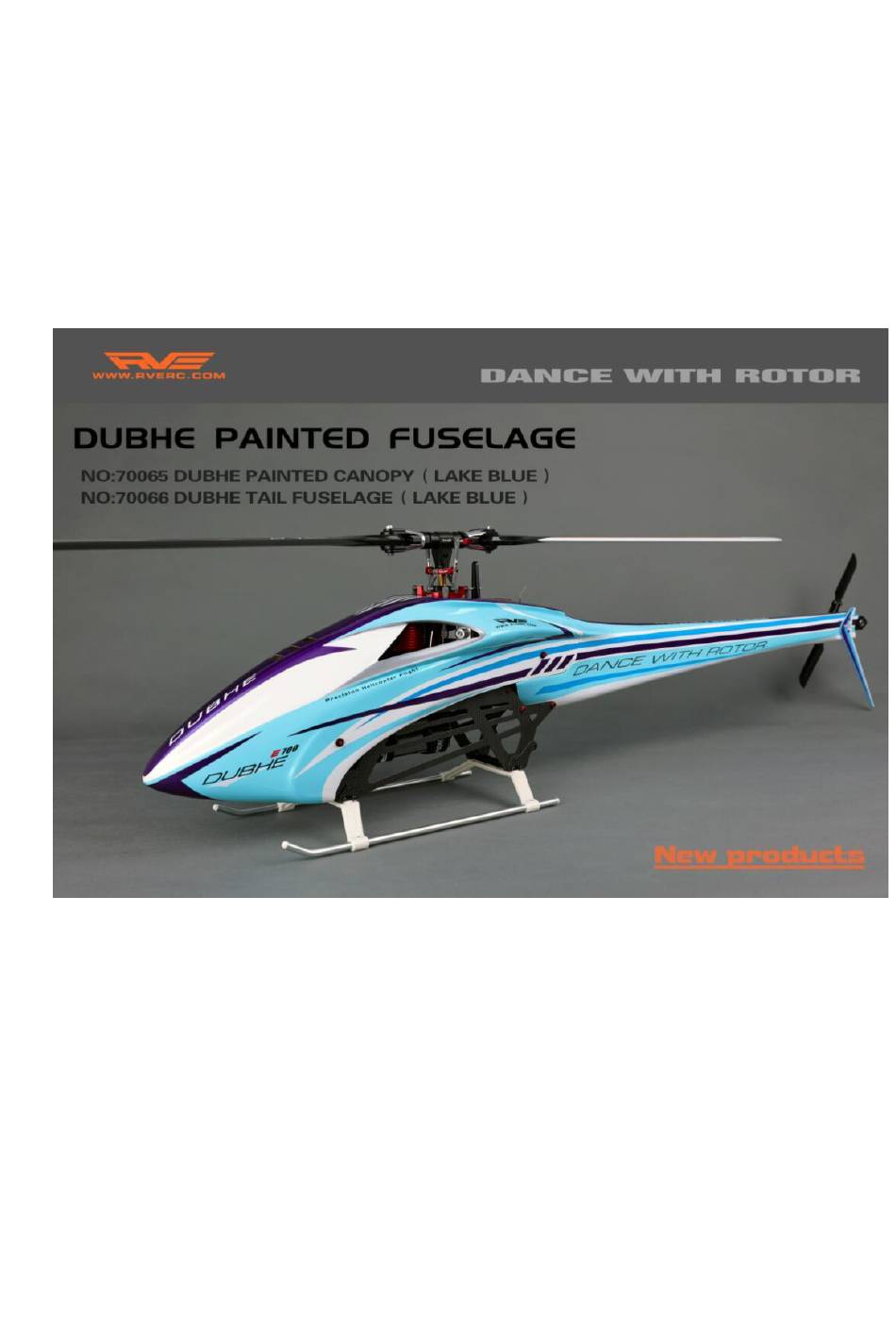

- Page 1 DUBHE E700 Half fuselage Installation Instructions...
- Page 2 First, you need to change the installation position of the tail brace and remove the fixing screws of the tail brace. Install the tail brace to the mounting position of the inner panel, and don't forget to tighten the screws of the tail brace mounting pipe clamp.
- Page 3 Remove this screw and the corresponding screw on the other side and take out the outer side panel mounting post.
- Page 4 Remove components such as wake box and pulley. Loosen the screws of the wake box fixing ring and remove the M3*3 top Insert the tail shell (it may be necessary to adjust the size of the reserved hole in the tail shell according to the size of the tail servo you are using)
- Page 5 Use the M3*45 screws that come with the tail housing to fix the tail housing, and install M3 spacers on both sides.
- Page 6 Insert a screwdriver through this hole to adjust the locking screw of the wake box fixing ring, first loosen the fixing ring. 使用半圆头 M3*6 内六角螺丝固定 Use semi-round head M3*6 socket head cap screws to fix...
- Page 7 On this side, fix the vertical tail with M3*8 hex socket head screws (original vertical tail and fishbone vertical tail can be installed) Adjust the installation angle of the wake box and finally tighten the locking screw of the wake box fixing ring.
- Page 8 Fix it here with the original screw...
- Page 9 Turn the body upside down to see the inner plate support column Adjust the position and insert the screw to fix it.
- Page 10 After the tail shell is installed, the head cover can be directly installed. Adjust the combination relationship between the head cover and the tail shell by adjusting the up and down position of the rear head cover mounting column.
- Page 11 Installation completed WWW.RVERC.COM...
