Summary of Contents for EUBRIDGE F36AR

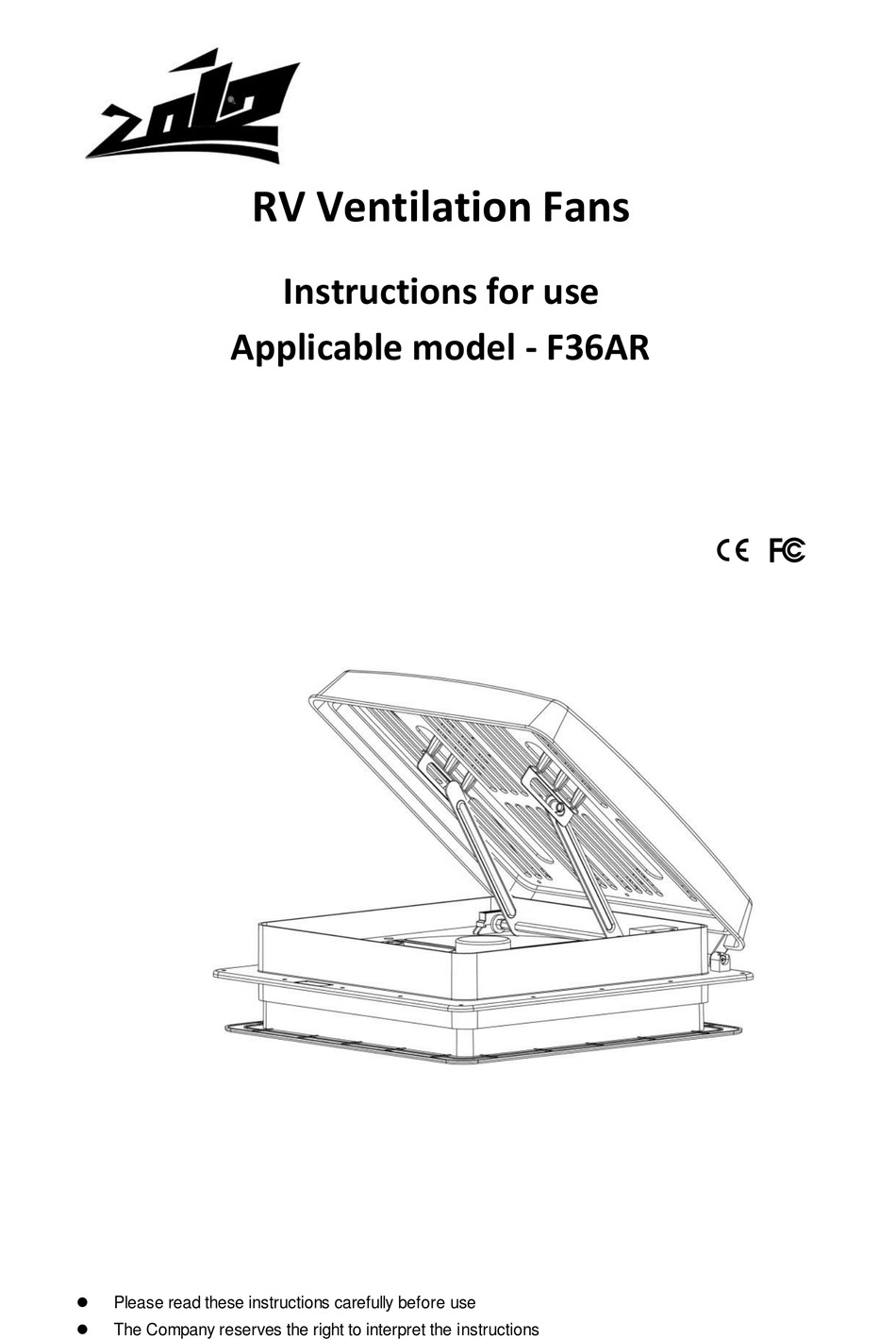

- Page 1 RV Ventilation Fans Instructions for use Applicable model - F36AR Please read these instructions carefully before use The Company reserves the right to interpret the instructions...
-
Page 3: Installation Notes
Catalog 1. Main Features 2. Physical Dimension 3. Installation Notes 4. Key Function Description 5. Technical Parameters 6. Parts Replacement and Cleaning 7. Notes 8. After-sales Maintenance 9. Common problems and troubleshooting... - Page 4 Functional features High strength plastic protective cover High-strength translucent PC protective cover that protects against UV rays while transmitting light. (Strong and durable for working in multiple environments.) High quality brushless motor More stable operation, lower energy consumption, silent operation and anti-blocking. (Five times longer life than traditional brushed motors, greatly improving the life of the motor.) Magnetic anti-mosquito net...
- Page 5 Installation instructions 1. Make a 360 x 360 mm square installation opening in the roof and apply a double-sided sealant between the mounting flange of the ventilation fan base and the roof surface. And paste the waterproof tape. (Pls make the surface level and flat, or will cause rainwater to pour in.) 2.
- Page 6 Description of key functions Environment Keystrokes Markings Function definition Keypad Indicator light Beeps press the button, the lid cover open(the fan does not single run by default). short tone “di” Power Press again to close the lid button cover.(the fan does not stop by default) Sunny Day In the power-off situation,...
- Page 7 When it is pressed for the first time, it enters the timing setting state, and the number of lights on indicates the timing When the lid is closed: duration. pressing this button is invalid. * If the timer button is When the lid is open: pressed for the first time The first time it is pressed, it will...
- Page 8 Main technical parameters Size: 430 x 430 x 163 mm Rated voltage: DC 12 V Power: 3~32 W Opening angle: 45° Gear adjustment: 0 – 4 level Opening size: 360 x 360 mm thickness: 37 - 85 mm Start-up method: manual/electric Air supply direction: bidirectional Max.
- Page 9 ** Please use soft cleaning tools such as sponges or brushes when cleaning the mosquito screens and fan blades, it is not recommended to use hard cleaning tools such as wire balls as they may damage the parts. ** Do not use cleaners with corrosive, volatile thinners. ** When putting the fan blade back on, press it into place against the slot and then tighten the screw cap clockwise.
- Page 10 After-sales maintenance policy 1. We offer a 12-month warranty on our products, which starts from the date of purchase. 2. During the warranty period for products that are defective due to materials or production processes, we will replace parts as appropriate. 3.
- Page 11 3. The sunroof opens during The sunroof needs to be closed driving, allowing rainwater during travel. from outside the vehicle to drift into the interior of the vehicle. Remove the mosquito netting to remove insects. Mosquitoes in Mosquito entrapment in suction When in use, turn on the exhaust the screen mode...
- Page 12 Work time: Monday-Friday(9 am-6pm) TEL : 008613342901133 Email address： charles@rvaccessary.com 18948775689m@sina.cn Website address : www.rvaccessary.com...
