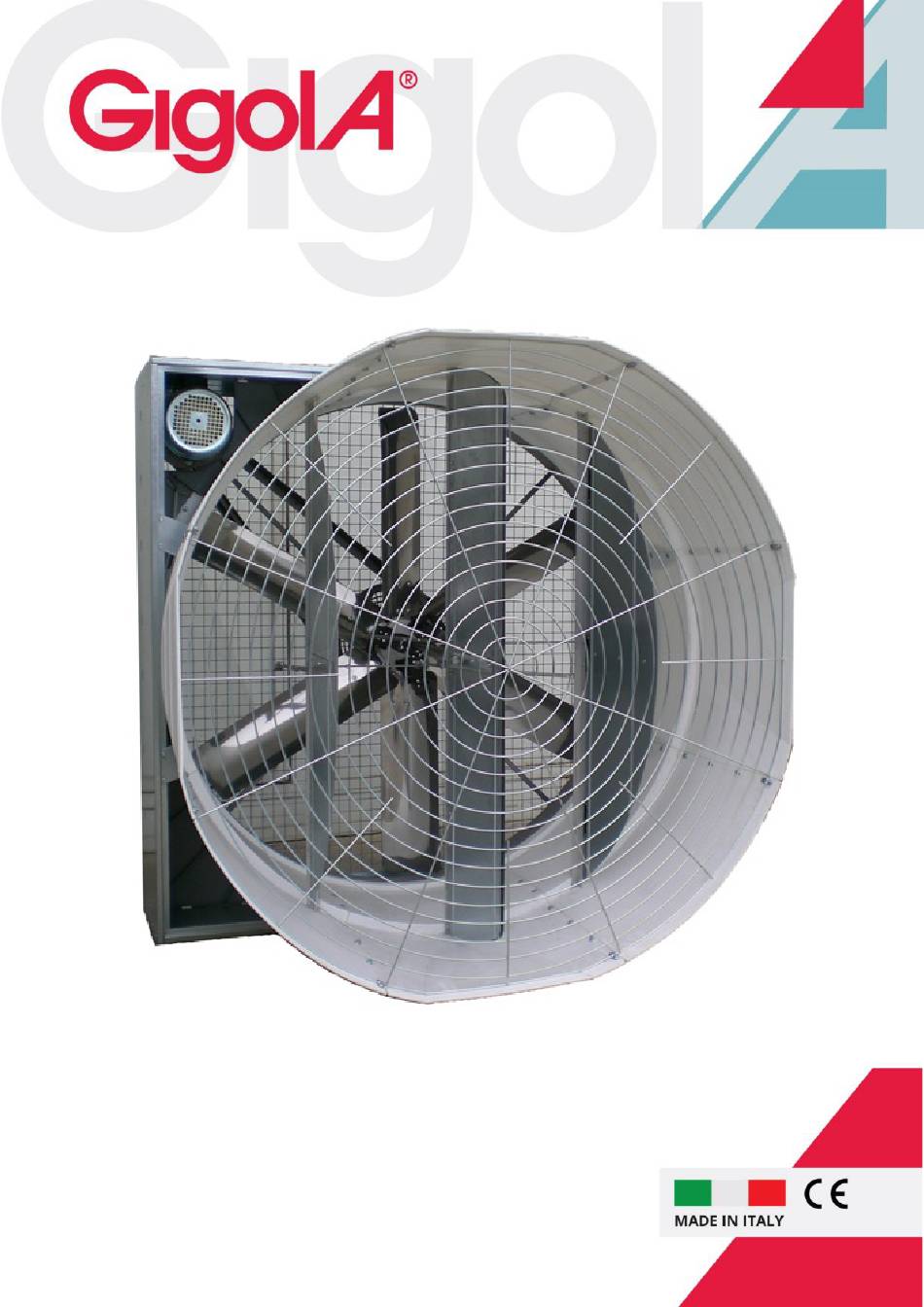

INSTRUCTION MANUAL (TECHNICAL HANDBOOK)

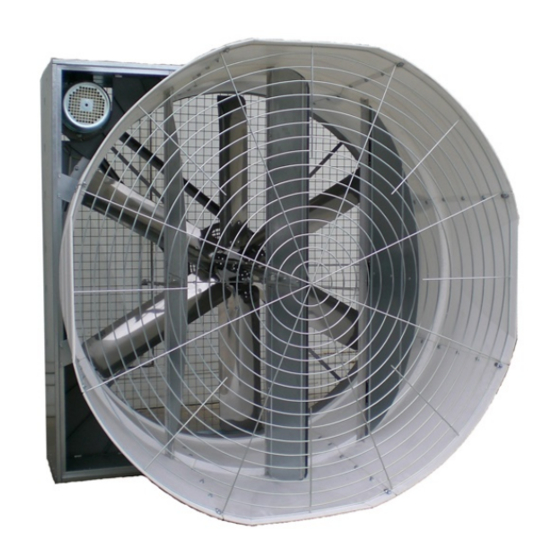

BUTTERFLY CONE FAN
CNF 140 – CNF HP 140
51''
51''

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CNF 140 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gigola CNF 140

  • Page 1 INSTRUCTION MANUAL (TECHNICAL HANDBOOK) BUTTERFLY CONE FAN CNF 140 – CNF HP 140 51’’ 51’’...
  • Page 2 Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 3: Table Of Contents

    Mechanical loading, unloading and handling of the machinery (with or without packaging) ..37 5.C.II. Storing and stowing .......................... 38 Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 4 12.F.VII. Motor support arm ............................71 12.F.VIII. Motor ..................................71 Cross-shaped hub ............................71 12.F.IX. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 5 20.C. ANNEX 3 – Tensioning the transmission belts ....................83 Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 6: Introduction

    G&R without prior notice and without incurring any penalty. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 7: General Warnings

    The risk (R) is a function of the level of damage (D) provoked and of the probability (P) or frequency of occurrence of the damage. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 8 Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 9 Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 10 Place where persons can consider themselves to be safe from the effects of Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 11 (suitable, certified and integral); Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 12: Typographical Conventions And Pictograms Used In The Manual

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 13 (P.P.E. – Cat. 3). Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 14: Intended Users Of The Manual, Safekeeping

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 15 Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 16 Possess and use suitable, integral and certified personal protective equipment (P.P.E.) Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 17: Work Clothing And Personal Protective Equipment

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 18: Standard Documentation Supplied

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 19: Manufacturer's Responsibility

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 20: Guarantee

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 21: General Features Of The Machinery

    Butterfly shutter (Pos. 5); Conical diffuser with protection grid (Pos.6). Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 22: Protection Grid - Extraction Side

    Simple weave, in which all the odd warp wires raise at the passage of the odd wefts, and even warp wires raise at the passage of even wefts. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 23: C.iii. Fan Box

    If necessary, request reference documentation for all the components’ operation and regulation details directly from G&R customer service. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 24: C.iv. Fan

    Hook + Spring Centrifugal opening (Pair of rods and Foot) Connection rod Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 25: Conical Diffuser With Protection Grid

    It is declared that all the components installed on G&R machinery from third parties are: Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 26: Identification Of The Machinery

    Overall dimensions See Annex 1 of this operation and maintenance manual. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 27: Technical Information On Fans Belonging To The Eolostar Family

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 28: Warnings And General Precautions

    NEVER perform provisional repairs and/or resetting operations that are not compliant with these instructions; Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 29: Warnings On The Protection Devices Installed On The Machine

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 30: Warnings For Use In Potentially Explosive Atmosphere (Atex)

    Ref. Par. 7 provisions of the assembly and disassembly section [ Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 31: Shipping, Receipt And Acceptance

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 32: Flaws, Defects And/Or Non-Conformities

    Closed with 5 strips MEDIUM Closed with 2 strips HIGH Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 33: A.iii. Cardboard Box Strapped On Pallet

    BOX TAPING SCHEME IMAGE DESCRIPTION SECURITY LEVEL HIGH Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 34: Unpacking

    ], possibly along with the abbreviation or numerical code for identifying the constituent material of the waste to recycle. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 35: Handling

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 36: Loading, Unloading And Manual Handling Of The Machinery (With Or Without Packaging)

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 37: C.ii. Mechanical Loading, Unloading And Handling Of The Machinery (With Or Without Packaging)

    Remember that dragging and rolling the pack along the ground are not permitted, even for short distance! Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 38: Storing And Stowing

    Both as specifically defined in relation to prevention and protection from injuries in the workplace, and as generally understood with reference to storing and protecting machinery. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 39: Assembly - Disassembly

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 40: Installation And Connections

    (otherwise they could create turbulence which could inhibit the proper operation of the machinery); Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 41: Wall Installation

    The unit is designed for installation on walls with extensions starting from 200 [mm]. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 42: Wall Installation With Metal Supports

    The operations described in this paragraph require the operator to wear protective footwear (P.P.E. - Cat. 2). Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 43 Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 44: Electrical Connection

    The motor units used on the fan units referred to in this manual are of the single-phase or three- phase type. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 45: Connection To The Aeraulic System

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 46: First Start-Up - Commissioning - Decommissioning

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 47: Current Input Check

    The operations described in this paragraph require the operator to wear protection for the hands (P.P.E. - Cat. 2). Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 48: A.iii. Check Of Vibrations

    (however the pulleys, transmission shaft, bearings, etc. also contribute to a lesser extent). Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 49: Regular Operation Check

    UNI EN ISO 13349. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 50: Commissioning

    Venturi nozzle – Box – Belt protection cover – Bearings – Transmission Shaft ...); III. Check the STATE OR WEAR OF THE BEARINGS; Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 51: Running In

    (for particulate) or length (for filaments), concentration, variability, chemical Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 52: Putting Out Of Service And Decommissioning

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 53 During this stage, it is possible for the machine to overturn and/or fall. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 54 Remove the machine to a safe place that is inaccessible to unauthorised personnel until ready to begin the demolition and dismantling operations. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 55: D.ii. Demolition

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 56: Starting - Operation - Stopping - Emergency Stopping

    2nd condition: “ ” or operation with inverted airflow. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 57: Noise

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 58: Stopping

    Before starting any cleaning operation it is obligatory to stop the machinery and secure its safety. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 59: Fan Support Hub And Motor Support

    G&R support services and do NOT restart the machine for any reason. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 60: Motor

    Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 61: Impeller

    G&R support services and do NOT restart the machine for any reason. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 62: Venturi Nozzle

    G&R support services and do NOT restart the machine for any reason. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 63: Protection Grids

    G&Rsupport services and do NOT restart the machine for any reason. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 64: Pulleys

    G&R support services and do NOT restart the machine for any reason. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 65: Transmission Belts

    G&R support services and do NOT restart the machine for any reason. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 66: Shutter

    G&Rsupport services and do NOT restart the machine for any reason. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 67: Conical Diffuser

    G&Rsupport services and do NOT restart the machine for any reason. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 68: Inspection - Routine Maintenance - Extraordinary Maintenance

    Machine in continuous cycle operation (24h/365 days per year). Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 69: Supervision / Simple Inspection

    3.0 [m] above ground, the operator must use slings for preventing falls (P.P.E. - Cat. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 70: Routine Maintenance

    Consult G&R after-sales technical support service before undertaking extraordinary maintenance actions. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 71: Shutter

    [ ] applicable to protection grids and their replacement. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 72: Maintenance Logbook

    G&R after-sales service could be much more costly. 13.A. Logbook structure (Suggestions) Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 73 Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 74: Lubrication

    The pair of rods and foot (shutter centrifugal opening/closing device) does not require any type of oiling and/or greasing. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 75: Spare Parts

    Blade hub Flat cone segment Blade Cone square wire guard Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 76: Troubleshooting

    Eliminate the leaks, clean the pulleys and change the belt or monobloc Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 77 Mechanical Reduce the vibrations of the impeller and/or motor. screws Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 78 Clean the impeller box Clean the Venturi nozzle and/or the outlet Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 79: Facsimile Of The Machine Documents Accompanying The Standard Supply

    Facsimile of the machine documents accompanying the standard supply 17.A. Declaration of conformity Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 80: Diary Of Revisions

    General revision of the manual and of its contents 01/01/2017 Introduction of the CNF HP 140 model Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 81: Notes

    Rev. No.05 Page 81 of 84 cone fan 01/01/2017 Notes Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 82: Annexes

    330 / 13.0 960 / 37.8 1380 / 54.3 1296 / 51.0 Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 83: Annexe 2 - Alignment Of The Transmission Belts

    Contact G&R after-sales service if there is still residual misalignment after checking that assembly is correct. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
  • Page 84 GIGOLA e RICCARDI S.p.a. Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985 Tel. (+39) 030 72.53.68 | Fax: (+39) 030.72.55.438 | e-mail: info@gigolariccardi.it...
