Summary of Contents for Merzifon SM800 ZENITH

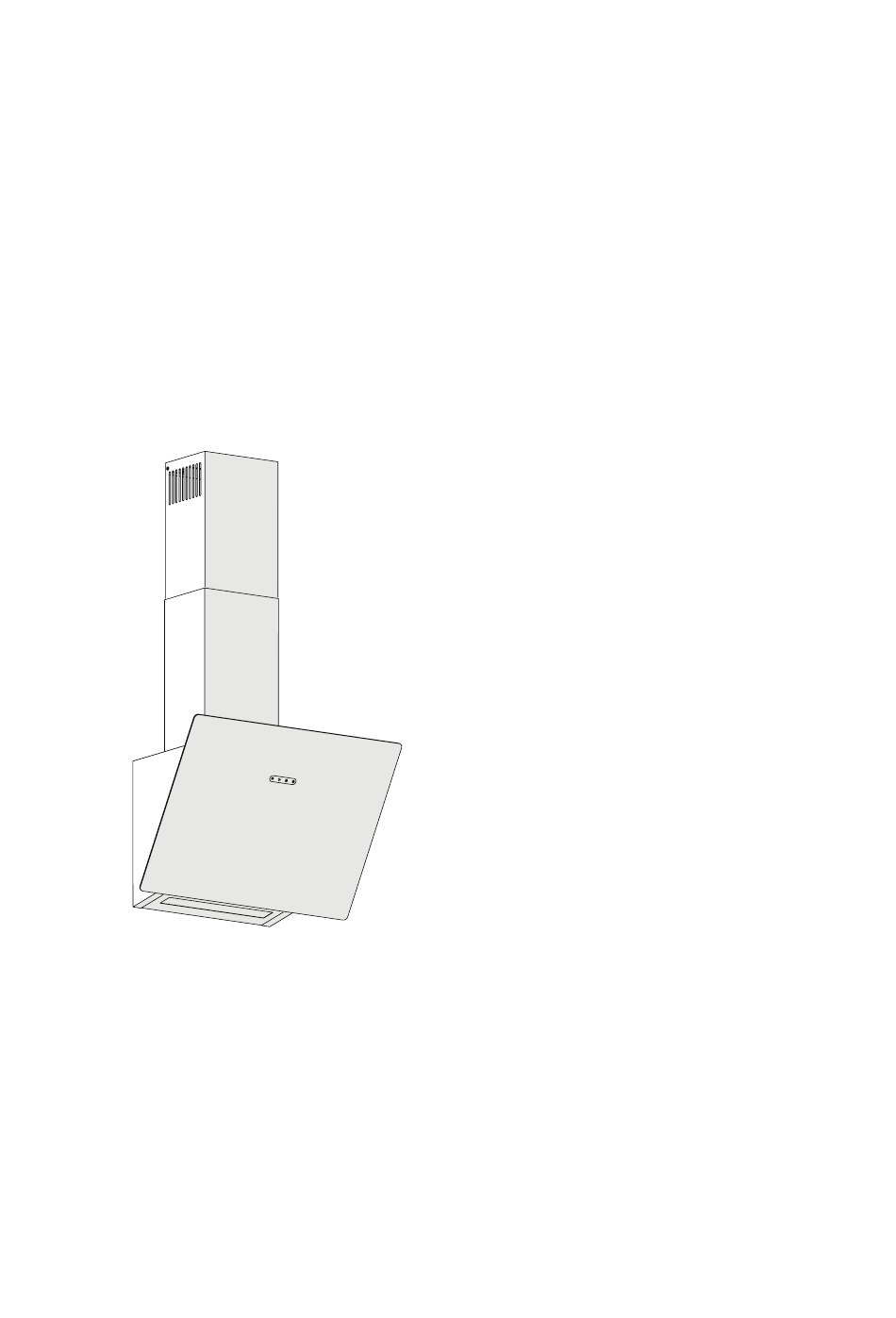

- Page 1 Assembly instructions HOOD USER GUIDE ENGLISH 3474 DEKTON 80 SM800 ZENITH 3474 DEKTON 80 SM800 SIRIUS Read this manual prior to performing any task!
- Page 2 MANUFACTURER Merzifon OSB AMASYA, Silverline IMPORTER PUNTO INOX SRL VIA DEL COMMERCIO 586 ISOLA RIZZA 37050 IT 1, en_US HOOD USER GUIDE ENGLISH 16.02.2022...
-
Page 3: Table Of Contents
Table of contents Table of contents Technical Drawing.............. 4 WARNING AND SAFETY PRECAUTIONS......5 2.1 LETHAL RISK, DANGER OF POISONING....7 USAGE WITH AND WITHOUT CARBON FILTER.... 11 Carbon Filter Replacement..........12 CLEANING AND PREVENTIVE MAINTENANCE..... 13 5.1 ALUMINIUM FILTER CLEANING....... 14 5.2 Washing in Dishwasher.......... -
Page 4: Technical Drawing
Technical Drawing Technical Drawing Fig. 1 HOOD USER GUIDE ENGLISH 16.02.2022... -
Page 5: Warning And Safety Precautions
WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAU- This appliance can be used by children of 8 years and older, TIONS people with physical, sensory or mental capability deficiency or people with lack of experience or knowledge; as long as they are provided supervision or instructions for the safe use of the appliance and they comprehend the dangers. - Page 6 WARNING AND SAFETY PRECAUTIONS If your product's periodic cleaning is not made in a timely manner, it could pose risk of fire. De-energize the appliance before any maintenance operations. (Plug off the appliance or turn off the main switch.) When electric cooker hood and devices fed with energies other than electricity operate simultaneously, the negative pressure in the room must not exceed 4 Pa ( 4 X 10 bar ).
-
Page 7: Lethal Risk, Danger Of Poisoning
WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING 2.1 LETHAL RISK, DANGER OF POISONING DANGER! Warning - Choking Hazard The packaging materials are dangerous for chil- dren. Never allow children to play with packaging materials. DANGER! Warning - Death Hazard There are life-threatening danger and poisoning danger due to reabsorbed combustion gases. - Page 8 WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING WARNING! Fire danger! – The oil residue in the grease filter may catch fire.Clean the grease filter at least once every 3 months.Never operate the device without the grease filter . –...
- Page 9 WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING DANGER! Danger of physical injury! – During the installation, there is a danger of physical injury due to the sharp edges. Use protective gloves throughout the installation process of the appliance. –...
- Page 10 WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING NOTICE! If the feeder cable is damaged, it must be replaced by its manufacturer or its authorized technical service or any other personnel qualified at the same level, in order to avoid any dangerous situa- tion.
-
Page 11: Usage With And Without Carbon Filter
USAGE WITH AND WITHOUT CARBON FILTER USAGE WITH AND WITHOUT CARBON FILTER You can use this appliance in exhaust air mode and ventilated air mode. Exhaust air mode The absorbed air is cleaned by the grease filters, and is discharged through a piping system.Fig. -
Page 12: Carbon Filter Replacement
Carbon Filter Replacement Carbon Filter Replacement AF 100 CARBON FILTER 1-Place the carbon filter in its housing.Fig. 6 2-Rotating the carbon filter clockwise, ensure that it is com- pletely fit.Fig. 6 If carbon filter does not fit in completely, it might drop and damage your product. -
Page 13: Cleaning And Preventive Maintenance
CLEANING AND PREVENTIVE MAINTENANCE CLEANING AND PREVENTIVE MAINTENANCE CAUTION! Cleaning and user maintenance of the appliance shall not be performed by unattended children. The surface could be damaged due to aggressive and abrasive cleaning agents. Never use aggressive and abrasive cleaning agents. -
Page 14: Aluminium Filter Cleaning
CLEANING AND PREVENTIVE MAINTENANCE Hand Wash 5.1 ALUMINIUM FILTER CLEANING Aluminium Filter Tab Clean the aluminium grease filters periodically every 3 months. Press the aluminium filter tab (1) and pull the aluminium filter to the direction of the arrow (Fig. 7). As you remove the aluminium filter, hold it with your other hand to prevent it from dropping. -
Page 15: Appliance Position
APPLIANCE POSITION Installation and Unpacking of the Appliance APPLIANCE POSITION Fig. 8 After completing the installation of hood, the minimum distance must be 450 mm between the product and any electric cooker; and 550 mm between it and any gas ranges or cookers burning other fuels (Fig. -
Page 16: Recommendations For Energy Saving
APPLIANCE POSITION Recommendations for Energy Saving 6.2 Recommendations for Energy Saving Replace the carbon filters on a regular basis. Regularly clean your aluminium filters. Since dirty filters would block the air passage, you might have to use the appliance at a higher speed. -
Page 17: Content Of Package
CONTENT OF PACKAGE CONTENT OF PACKAGE Fig. 9 Product User Manual Inner Flue Installation Template Outer Flue 10- Ø6mm Plastic Dowel 150/120mm Plastic Flue 11- Ø10mm Plastic Dowel Flue Connection Plate 12- 5.5x60 Wall Mount Screw 150mm Flue Adapter (option) 13- 3.9x22 Flue Connection Plate Screw Remote Control (Optional) 14- 3.5x9.5 Flue Connection Screw... -
Page 18: Overview Of Hood
OVERVIEW OF hood OVERVIEW OF hood 1- Inner Flue 2- Outer Flue 3- Control Panel 4- Side Suction Plate / Glass 5- Cooker Lighting Fig. 10 HOOD USER GUIDE ENGLISH 16.02.2022... -
Page 19: Assembly Of Product
ASSEMBLY OF PRODUCT ASSEMBLY OF PRODUCT Checking the Wall Wall must be flat, straight and have sufficient bearing capacity. Depth of drilling holes must comply with the length of bolts. The nuts and dowels provided are suitable for brick walls. For other construction material (e.g. - Page 20 ASSEMBLY OF PRODUCT Drill the suspension holes with Ø8mm drill and place the dowels (Fig. 11/b). Place 2x4.950 suspension screw with a clearance of 5 mm between the screw head and the wall (Fig. 11/b). Preparing the Device Open the filter cover. Open the metal oil filters If the air discharge pipe radius is less than150mm, mount Ø150/120 mm flue adapter.
-
Page 21: Assembly Of Sheet Metal Flues
ASSEMBLY OF SHEET METAL FLUES ASSEMBLY OF SHEET METAL FLUES Fig. 13 Installing Air Discharge Connection Connect one end of the air discharge pipe directly to the air discharge area. Mount the other end of the air discharge pipe on the air dis- charge on the appliance. - Page 22 ASSEMBLY OF SHEET METAL FLUES If there are protective sheets on the flues, remove them (Fig. 13). By pulling the upper flue upwards and screw to the flue con- nection plate through the left and the right sides.(Fig. 13). Mount the lower flue to the body through the left and the right sides.(Fig.
-
Page 23: Use Of Product
USE OF PRODUCT USE OF PRODUCT When this button is pressed, product will operate at speed level 1. Fig. 14: Touch Button When this button is pressed, product will operate at speed level 2. When this button is pressed, product will operate at speed level 3. -
Page 24: Replacing The Lamps
REPLACING THE LAMPS REPLACING THE LAMPS CAUTION! When the lamp of your device is malfunctioning, contact with authorized service or the manufac- turer. This product contains a light source with Class F energy efficiency HOOD USER GUIDE ENGLISH 16.02.2022... -
Page 25: Authorized Service
AUTHORIZED SERVICE AUTHORIZED SERVICE If Lighting is Not Functioning: Make sure that the plug is plugged in, and that the fuses are intact. Check the bulbs. Make sure you unplugged the device before performing this check. Tighten the bulbs if they are loose; you can replace the bulbs if they still don't work. - Page 26 AUTHORIZED SERVICE Fault description Cause Remedy It Does Not Discharge Air (in Check The Alumi- The aluminium cartridge filter should be washed flueless use) nium Filter. once a month under normal conditions. It Does Not Discharge Air (in Check The Carbon In products that work with carbon filters, carbon flueless use) Filter.
-
Page 27: Technical Table
TECHNICAL TABLE TECHNICAL TABLE Supply Voltage 220 - 240 V 50Hz Insulation Class of Motor Insulation Class CLASS I This product complies with the 2014/30/EC (Regulation on Electro- magnetic Compliance) and 2014/35/EC (Regulation on Low Voltage Devices (LVD)) Directives. This device complies with the Directive on the Control of Waste Electrical and Electronic Equipment.
