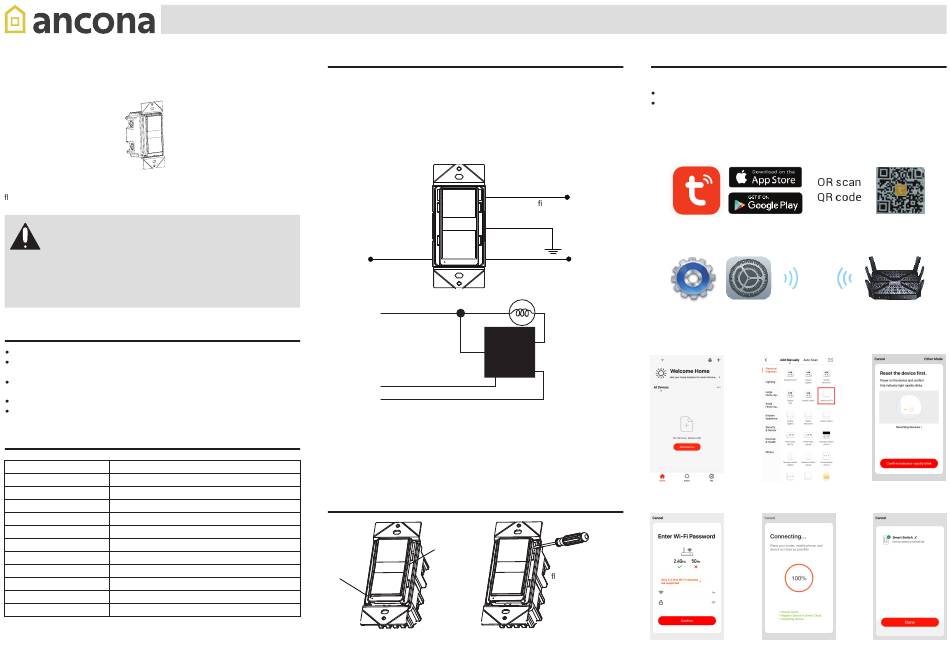

INSTALLATION INTRUCTIONS
Wireless Home Automation Control Device
Interchangeable Face Cover On/Off Switch
The PA-TM-WF01 ON/OFF Switch is a perfect wireless manual and remote
on/off control, replacing regular wall switch, controlling incandescent, LED,
uorescent, ballast and so on.
WARNINGS AND CAUTIONS:
Be sure to read the instructions carefully before installation, as the
manufacturer will not be responsible for any product damage
caused by not following the instructions.
1. Wet hands are strictly prohibited.
2. Must work strictly according to the rated load.
3. Do not continue to work after self-disassembly of any nature and
damage of external forces.
Features
Perfect replacement for regular wall switch, 120VAC, 15Amp.
Manual and remote ON/OFF control of any connected lighting and other
electrical load.
You can turn your devices on or off at any time or anywhere with internet
connection, using the free Tuya App on your smartphone.
Interchangeable color face plate.
Indoor use only.
Specifications
Voltage
120VAC, 60Hz
Incandescent
1000W
Electronic Ballast
5A
Standard Ballast
1200VA
Resistive
1800W(15A)
Motor
1/2 HP
Operating Temperature
32°F~104°F (0°C~40°C)
Wire Strip Length
16 mm (5/8 in.)
Supply Connection
14 AWG wires, suitable for at least 90°C
Screw Torque
20 lbf-in
Protocol
IEEE 802.11b/g/n
Wireless Type
2.4GHz (Type 1.B action, operating control)
MAPA-TM-WF-01-03
— 1 —
Installation
1.
WARNING: To avoid fire, shock, or death. High Voltage - Turn off power
at circuit breaker or fuse and test that power is off before wiring.
2.
Remove wall plate and existing switch mounting screws.
3.
Carefully remove the existing switch from the switch box.
4.
Disconnect the wiring from the existing switch.
5.
Connect the switch as shown in the wiring diagram: Black lead to hot wire,
white lead to neutral wire, red lead to load wire, green lead to ground wire.
Wiring diagram
Load (to light xture)
White
Neutral
Hot (from breaker)
White (Neutral)
PA-TM-WF01
Green (Ground)
Black (Line/Hot)
6.
Check connections to make sure they are tight and no bare conductors are
exposed.
7.
Insert the PA-TM-WF-01 switch into the standard outlet box carefully.
8.
Secure the switch to the box using the supplied screws.
9.
Attach the wall plate.
10.
Restore power at the circuit breaker and test the system.
Operation
Switch Paddle.
LED Light.
— 2 —
The switch paddle allows the user to turn ON/OFF the connected lighting.
To turn the connected lighting ON: Tap the top of the switch paddle.
To turn the connected lighting OFF: Tap the bottom of the switch paddle.
Please Note: After a power failure, the on/off switch returns to OFF state.
Tuya Smart App Control
1. Download Tuya Smart app from the App Store or Google Play.
Red
Green
Ground
2. Connect mobile device to your 2.4GHz Wi-Fi network. Please note this
Smart switch can only be connected to 2.4GHz network.
Black
3. Launch Tuya and follow the in-app instructions to connect the Wi-Fi switch
Red (Load)
to your network.
a. Click the button "+".
d. Enter your Wi-Fi password. e. Connect.
To replace the face
cover, just use a
at screwdriver to
pry-off the
interchangeable
plate.
Manual Control
b. Select "Wi-Fi Switch". c. Click the bottom button.
f. Finished.
