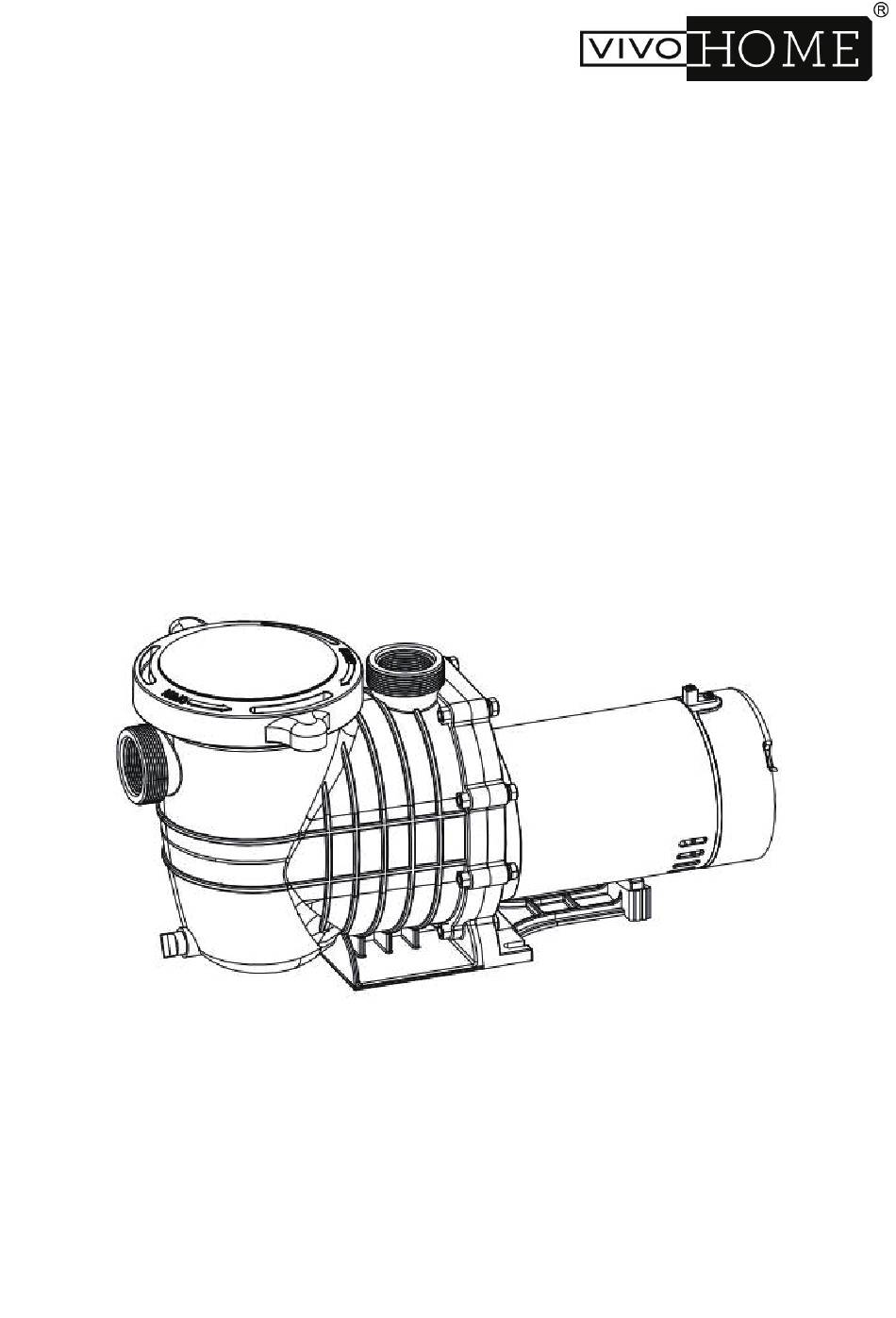

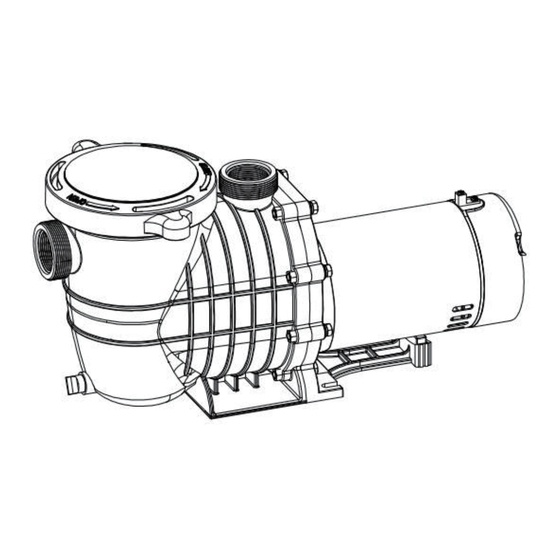

- Page 1 USER'S MANUAL 2.0 HP Swimming Pool Pump SKU: VH514 THIS INSTRUCTION BOOKLET CANTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Important - Read Carefully
IMPORTANT – READ CAREFULLY NOTE – To prevent potential injury and to avoid unnecessary service calls, read this manual carefully and completely. SAVE THIS INSTRUCTION MANUAL Use of appointed replacement parts voids warranty. ATTENTION INSTALLER – THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION, OPERATION, AND SAFE USE OF THIS PUMP THAT MUST BE FURNISHED TO THE END USER OF THIS PRODUCT. - Page 3 Also, contact a licensed electrician for information on local electrical codes for bonding requirements. Use a solid copper conductor, size 8 or larger. Run a continuous wire from external bonding lug to reinforcing rod or mesh. Connect a No. 8 AWG (8.4 mm ) solid copper bonding wire to the pressure wire connector provided on the motor housing and to all metal parts of swimming pool, spa, or hot tub, and to all electrical equipment, metal piping (except gas piping), and conduit within 5 ft.
-
Page 4: Installation Instructions
Failure to follow safety and operation instructions could result in violent separation of pump components. Strainer cover must be properly secured to pump housing with strainer cover lock ring. Before servicing pool and spa circulation system, all system and pump controls must be in off position and filter manual air relief valve must be in open position. Do not operate pool and spa circulation system if a system component is not assembled properly, damaged, or missing. - Page 5 NOTE - It is recommended that a minimum length of piping, equivalent to 10 pipe diameters, be used between the pump suction inlet and any plumbing fittings. WARNING – Hazardous Pressure. Pumps, filters, and other equipment/ components of a swimming pool filtration system operate under pressure. Incorrectly installed and/or improperly tested filtration equipment and/or components may fail resulting in injury and/or property damage.
-
Page 6: Start-Up And Operation
Voltage Voltage at motor MUST NOT be more than 10% above or below motor name plate rated voltage, or motor may overheat, causing overload tripping and reduced component life. If voltage is less than 90% or more than 110% of rated voltage when motor is running at full load, consult Power Company. -
Page 7: Priming Pump
may damage pump and voids warranty. ATTENTION – Before removing strainer cover: 1. STOP PUMP before proceeding. 2. CLOSE VALVES in suction and outlet pipes. 3. RELEASE ALL PRESSURE from pump and piping system using filter manual air relief valve. See filter owner’s manual for more detail. -
Page 8: Storing Pump For Winterization
Keep motor dry and covered during storage. To avoid condensation/corrosion problems, do NOT cover or wrap pump with plastic film or bags. Storing Pump For Winterization WARNING – To avoid dangerous or fatal electrical shock hazard, turn OFF power to motor before draining pump. Failure to disconnect power may result in serious personal injury or death. - Page 9 TECHNICAL DATA FOR HAP POOL PUMP Model Power Voltage Hertz Amps Flow Rate HAP550 550W/0.7HP 110-120V 79GPM HAP750 750W/1.0HP 110-120V 87GPM HAP1100 1100W/1.5HP 110-120V 93GPM HAP1500 1500W/2.0HP 110-120V 12.6 106GPM HAP550I 550W/0.7HP 220V 74GPM HAP750I 750W/1.0HP 220V 79GPM HAP1100I 1100W/1.5HP 220V 93GPM HAP1500I...
- Page 10 Parts for pump HAP series Description Key NO O-Ring Basket Strainer Drain plug O-Ring Pump Body O-Ring Screw Flower mat Diffuser O-ring Impeller Mechanical Seal Bracket cover Against hydrosphere Motor Earthing Terminal...
- Page 11 Parts for pump HBP Series Key NO Description O-Ring Basket Drain plug O-Ring Pump body O-Ring Diffuser Impeller Mechanical seal O-Ring Bracket cover Flat Mat Spring washer Screw Plastic basement Support Motor Earthing Terminal...
-
Page 12: Troubleshooting
Trouble Shooting ISSUE POSSIBLE SOLUTION Improper or loose wiring connections; open switches or relays; tripped circuit breakers, MOTOR WILL NOT GFCI’s, or blown fuses. START Manually check rotation of motor shaft for free movement and lack of obstruction. If you have a timer, be certain it is working properly. Bypass it if necessary. Undersized wiring;... - Page 13 Note: To continuously improve its products, VIVOHOME reserves the right to modify this information without prior notification. Please contact customer service via support@vivo-home.com with any questions, comments, or concerns. Thank you for using VIVOHOME products in your home!
