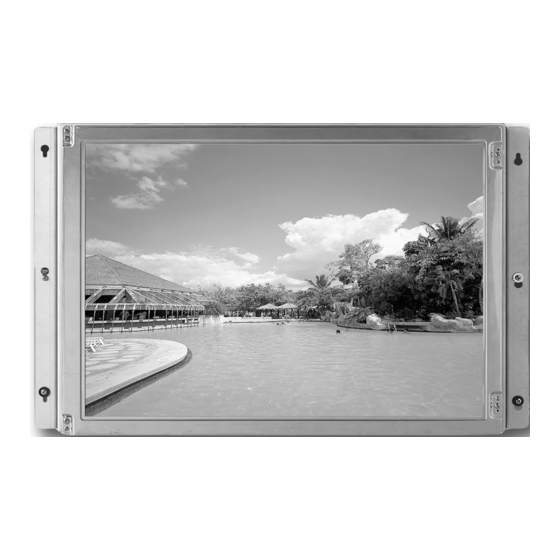

Open Frame TFT LCD Monitor
EXO181XG1
Operating Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Excel Technology EXO181XG1
Summary of Contents for Excel Technology EXO181XG1
- Page 1 Open Frame TFT LCD Monitor EXO181XG1 Operating Manual Excel Technology International Corporation 4 Stryker Lane Suite 5 Hillsborough, NJ 08844 Tel: (908) 874-4747 Fax: (908) 874-3278 Toll Free: (866) 523-6833 Email: excelix@lcdexceltech.com This Technical Specification is subject to change without notice...
-
Page 2: Installation
Excel Technology International Corporation MODEL NO.EXO181XG1 Installation Before Installing the TFT-LCD Monitor When you open the package, check the following items. 1. DC Adaptor 2. R.G.B. Cable 15 pin D-Sub cable 3. Video Cable 4. Audio Cable 5. Power Cord (220V or 120V AC) Back and Side of the Monitor (Name &... - Page 3 Excel Technology International Corporation Front of the Monitor and Monitor Adjustment Control Unit of the Monitor (Name & Purpose) 1. MENU button: This makes the On Screen Display (OSD) appear and Disappear. 2. UP(!), DOWN(") button: This is used to adjust the selected value up and down, also used as Volume up and down.
-
Page 4: Menu Adjustment
Excel Technology International Corporation Menu Adjustment Select items to adjust from the Main Menu. When you press MENU button after adjusting, OSD will disappear. Brightness Adjust the brightness level of image or the background of letters. (The brightness of image or letter itself is changed.) 1. - Page 5 Excel Technology International Corporation 2. After selecting , increase or decrease the selected item by pressing UP(!) or DOWN(") button to adjust it to the optimal level. Phase Adjustment Adjust the vertical direction phase. 1. Press MENU button without OSD.
- Page 6 Excel Technology International Corporation 2. Select is adjusted automatically while pressing UP(!) or DOWN(") button. Menu Position of OSD Move the OSD position. 1. Press MENU button without OSD. Press # or $ button until selected. 2. Press MENU button again and press #, $, !, " buttons to adjust the OSD position.
- Page 7 Excel Technology International Corporation Specification of TFT LCD Monitor (EXO181XG1) LCD Panel 18.1” Color TFT-LCD Panel (LG Phillips : LM181E1) Type Active Matrix Resolution 1280 x 1024 EXO181XG1 Display Color 16 million color (Dithering ON) Response Time 20ms Color Tone...
