SANYUN SW-208 Quick Start Manual

Package Included
1. Main Speaker 1PC
2. Satellite Speaker 1PC
3. Data Line betweenMain Speaker and Satellite Speaker
4. AC Power Cord 1PC
5. 3.5mm Audio Cable 1PC
6. Micro USB to USB-A and USB-C cable 1PC
7. User Manual 1PC

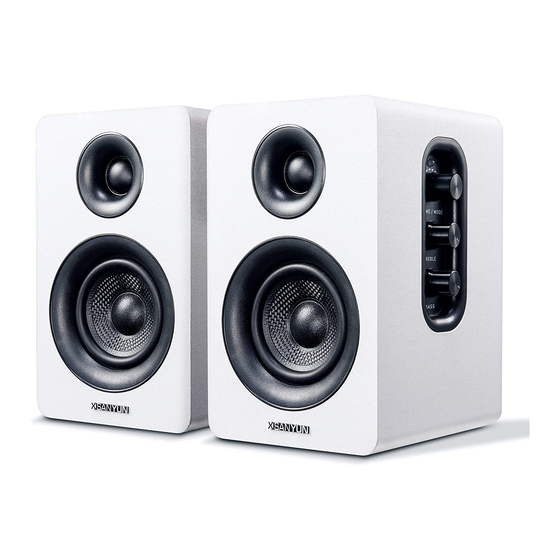

(1)【SMALL HIFI BOOKSHELF SPEAKERS】SW-208 is a small bookshelf speaker with HiFi
sound quality. It adopts standard bookshelf speaker system design, i.e. direct/reflective
speaker system.Can be placed at will, can easily create a rich stereo sense and strong
sound pressure.
(2)【30Wx2 CARBON FIBER SEPAKER UNIT】The speaker unit is designed with carbon fiber
material and multi-layer voice coil technology, which is proprietary by Sanyun
Company. It has excellent sound performance, warm and thick medium frequency,
deep and powerful low frequency, clear and bright high frequency sound characteris-
tics. And the speaker unit has a super durability and stability, can work steadily in any
environment.
(3)【24 bit DAC AND BLUETOOTH 5.0】When connecting with USB cable, the built-in 24 bit
DAC can obtain the digital audio signal directly, which can provide 3D surround sound
and higher fidelity sound quality, especially suitable for games. Bluetooth 5.0
connection, stable transmission.
(4)【TREBLE AND BASS ADJUSTMENT】To achieve true HiFi sound quality, set the total
volume, treble and bass adjustment knobs on the side ofmain speaker. Please adjust
the most suitable sound according to your preferences, or adjust the best sound effect
according to different sound types.
(5)【QUIET STANDBY and ENERGY SAVING】Built in noise elimination system. Built-in chip,
intelligent filter input audio, automatic filter to remove noise, keep the speakers
absolutely quiet while standby. The design standard conforms to EU ER2 standard,
saving energy. A good speaker, not only can provide good sound performance, when
not in use, can quietly let you forget its existence.
(6)【WIDE APPLICABILITY】Whether it's via Bluetooth, USB cable or 3.5mm audio cable,
connect to your MAC, PC, phone, tablet, laptop, start enjoying audiophile quality sound
straight out of the box!
1PC
Operation Instructions of Side Control Box
SW-208 Bookshelf Speaker
Description of Back Plate Jack
Specifications
Bluetooth Name: SW-208
Rated output power: 60W（At maximum volume, less than 1% distortion）
Power Supply: AC100-240V/50-60Hz
SPL: >80Db
Input Sensitivity: 700±50mV
Frequency Range/Response: 40 Hz—20 KHz
THD+N: ≤1% at maximum volume output
SW-208 Bookshelf Speaker
1. Function indicator: Bluetooth (blue light) Named: SW-208;
aux connection (green light); USB connection (red light)
2. Function Switch + Main Volume Control Knob:
Long press to switch mode, Short press for play/pause.
Left turn for volume decrease, Right turn for volume increase.
3. TREBLE: Treble Control Knob.
4. BASS: Bass Control Knob
Note: Both treble and bass adjustments range from
0 to maximum. When both are at 0, the speakers
are left with only mid frequency sound.
1. L OUT – Left channel auxiliary speaker connection port
2. AUX IN – External 3.5mm audio input interface
3. USB - USB cable connection, 24 Bit DAC
4. Power On/Off
5. Power Cord Jack
