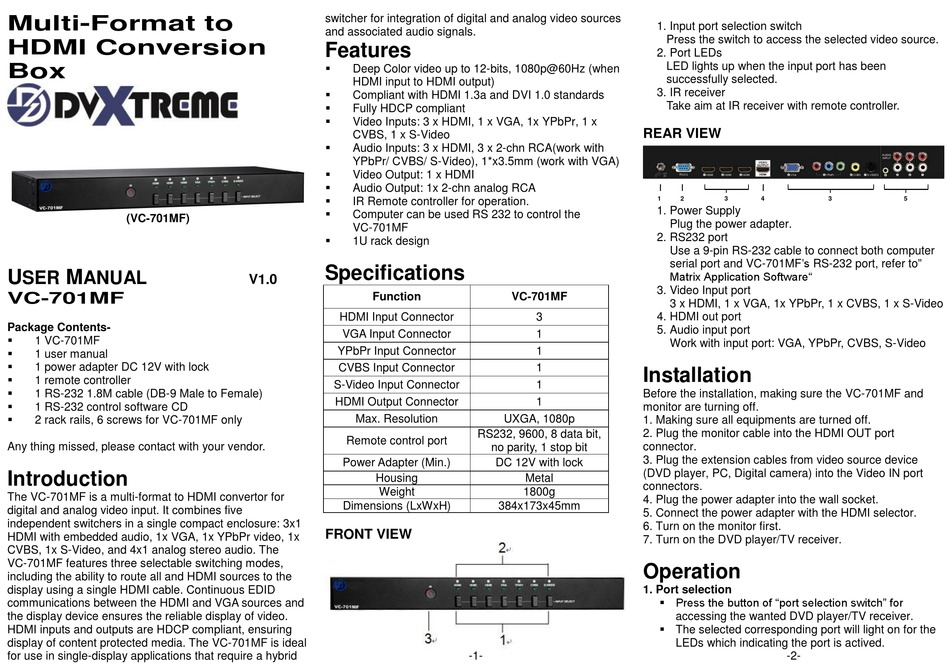

DVTECH Solution DVXTREME VC-701MF User Manual

Multi-Format to
HDMI Conversion
Box
(VC-701MF)
U M
SER ANUAL
VC-701MF

Package Contents-


1 VC-701MF

1 user manual

1 power adapter DC 12V with lock

1 remote controller

1 RS-232 1.8M cable (DB-9 Male to Female)

1 RS-232 control software CD

2 rack rails, 6 screws for VC-701MF only
Any thing missed, please contact with your vendor.

Introduction

The VC-701MF is a multi-format to HDMI convertor for
digital and analog video input. It combines five
independent switchers in a single compact enclosure: 3x1
HDMI with embedded audio, 1x VGA, 1x YPbPr video, 1x
CVBS, 1x S-Video, and 4x1 analog stereo audio. The
VC-701MF features three selectable switching modes,
including the ability to route all and HDMI sources to the
display using a single HDMI cable. Continuous EDID
communications between the HDMI and VGA sources and
the display device ensures the reliable display of video.
HDMI inputs and outputs are HDCP compliant, ensuring
display of content protected media. The VC-701MF is ideal
for use in single-display applications that require a hybrid
switcher for integration of digital and analog video sources
and associated audio signals.

Features


Deep Color video up to 12-bits, 1080p@60Hz (when
HDMI input to HDMI output)

Compliant with HDMI 1.3a and DVI 1.0 standards

Fully HDCP compliant

Video Inputs: 3 x HDMI, 1 x VGA, 1x YPbPr, 1 x
CVBS, 1 x S-Video

Audio Inputs: 3 x HDMI, 3 x 2-chn RCA(work with
YPbPr/ CVBS/ S-Video), 1*x3.5mm (work with VGA)

Video Output: 1 x HDMI

Audio Output: 1x 2-chn analog RCA

Ir Remote Controller for operation.

Computer can be used RS 232 to control the
VC-701MF

1U rack design

Specifications

V1.0
Function
HDMI Input Connector
VGA Input Connector
YPbPr Input Connector
CVBS Input Connector
S-Video Input Connector
HDMI Output Connector
Max. Resolution
Remote control port
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)

FRONT VIEW

REAR VIEW

VC-701MF
3
1
1
1

Installation

1
Before the installation, making sure the VC-701MF and
1
monitor are turning off.
UXGA, 1080p
1. Making sure all equipments are turned off.
2. Plug the monitor cable into the HDMI OUT port
RS232, 9600, 8 data bit,
connector.
no parity, 1 stop bit
3. Plug the extension cables from video source device
DC 12V with lock
(DVD player, PC, Digital camera) into the Video IN port
Metal
connectors.
1800g
4. Plug the power adapter into the wall socket.
384x173x45mm
5. Connect the power adapter with the HDMI selector.
6. Turn on the monitor first.
7. Turn on the DVD player/TV receiver.

Operation

1. Port selection
-1-
1. Input port selection switch
Press the switch to access the selected video source.
2. Port LEDs
LED lights up when the input port has been
successfully selected.
3. IR receiver
Take aim at IR receiver with remote controller.
1 2 3 4 3
1. Power Supply
Plug the power adapter.
2. RS232 port
Use a 9-pin RS-232 cable to connect both computer
serial port and VC-701MF's RS-232 port, refer to"
Matrix Application Software"
3. Video Input port
3 x HDMI, 1 x VGA, 1x YPbPr, 1 x CVBS, 1 x S-Video
4. HDMI out port
5. Audio input port
Work with input port: VGA, YPbPr, CVBS, S-Video
 Press the button of "port selection switch" for
accessing the wanted DVD player/TV receiver.
 The selected corresponding port will light on for the
LEDs which indicating the port is actived.
-2-
5
