Union Draisine KLV12 Manual

GENERAL INFORMATION
The recommended minimum drivable radius
is 360mm.
The model has a 6-pin interface according to
NEM 651 for the
Digital operation. The interface connector is
equipped with buffer memories for analog
operation.
Important note: The model is equipped
with capacitors on the interface connector
for analog operation. Please do not change
direction abruptly, but bring the vehicle
to a standstill before changing direction.
Otherwise you risk damaging the drive and
capacitors.
For better contact security the model is not
equipped with friction tires.
The model is operated in analog mode with a
maximum of 12V direct current and is
Compatible with all common H0 gauge
direct current rail systems.
EN1.2/2021
GENERAL INFORMATION
Do not expose the model to intense solar
radiation or other strongly warming light
sources. Strong UV radiation changes or
ages paintwork. High temperatures can de-
form the plastic parts and bleach the paint.
The statutory regulation applies to any
warranty claims, please contact the seller of
the model. Please keep the proof of purchase
as a basis for the warranty claim.
Maßstabsgetreues Modell für erwachsene
Sammler. Empfohlen für Sammler ab 14
Jahren. Aufgrund maßstabs- und
vorbildgerechter Umsetzung bzw. funk-
tionsbedingter Gestaltung sind Spitzen,
Kanten und Kleinteile enthalten.
Verschluckungsgefahr. Bitte bewahren Sie
die Verpackung für zukünftig benötigte
Informationen auf.
Detailed scale model for adult collectors.
Recommended for collectors aged 14 years
or older. Product could contain functional
sharp edges and small parts which can
present a choking hazard.
Please handle with care. Please retain
packaging for future reference.

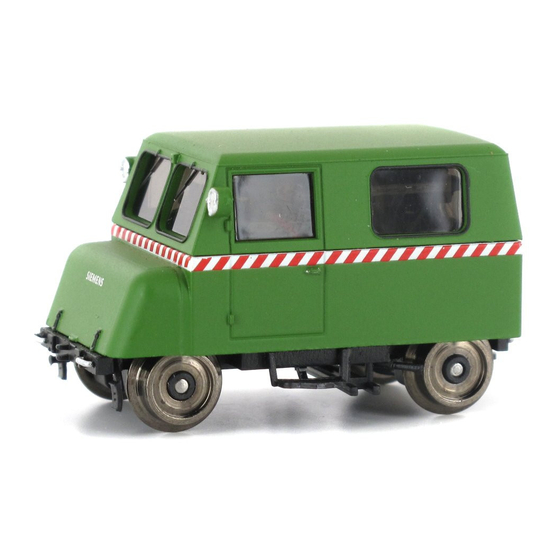

Draisine KLV12 H0 gauge
Manual
From 1953 the DB procured various types
of trolleys for railway service purposes,
including the types Klv 11 and Klv 12, of
which around 800 were produced by various
suppliers by 1963.
The simple purpose vehicles were inexpen-
sive. An air-cooled Volkswagen industrial
engine with a displacement of 1.2 liters and
28 hp served as the drive. Top speed 70 km /
h, total weight approx. 2,250 kg.
14+
ACHTUNG:
Maßstabsgetreues Modell für erwachsene
Sammler ab 14 Jahren.
Detailed scale model for adult collectors.
Recommened for collectors aged 14 years or older.
Modellbahn Union GmbH
Gutenbergstr. 3a
D-59174 Kamen
email: kontakt@modellbahnunion.com
Information on the Modellbahn Union range
can be found at info.modellbahnunion.com
