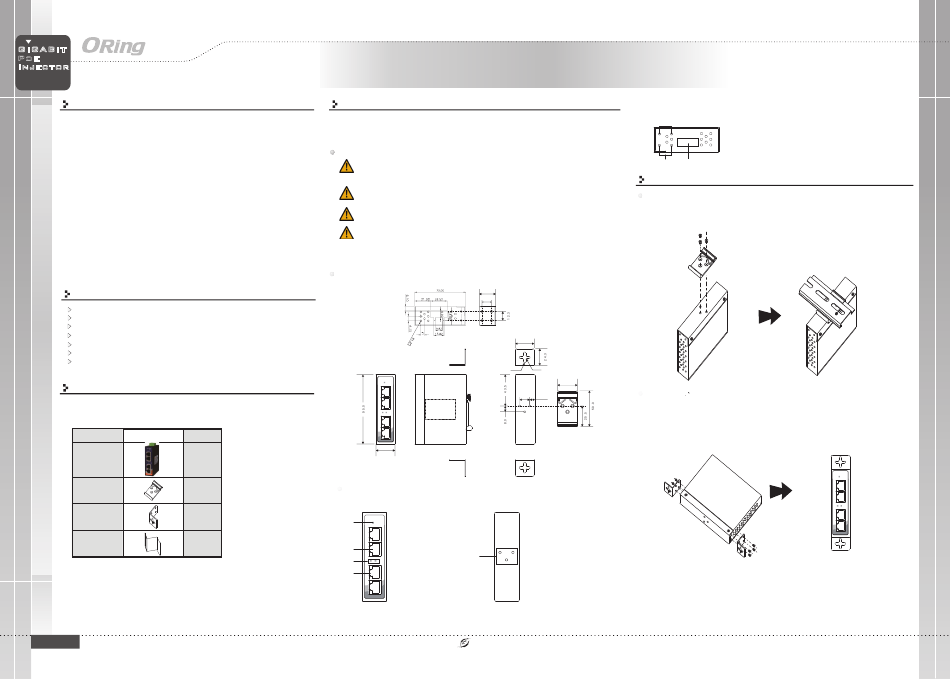

ORiNG INJ-102GT Quick Installation Manual

GIGABIT
PoE
Injector
Q I
uick nstallation
I N D U S T R I A L
Introduction
The INJ-102GT PoE injector is an advanced IEEE 802.3af/at compliant
device with intelligent detection that provided 2 port 10/100/1000Base-T(X)
PoE outputs. The device does not turn on power until it detects a valid PoE
signature from the PoE device attached downstream on the Ethernet cable.
This protection against damage to non-PoE compliant equipment which may
be connected to the Ethernet cable. Because of this intelligent detection, only
an IEEE 802.3af/at compliant deice can be powered with the
injector. Typically, in gigabit networks the maximum allowable CAT5 cable
length is about 100 meters, due to the limitation of the Ethernet standard.
Because of its 50-57V insertion, the installer doesn't need to worry about
voltage drops caused by cable length. The
function with any PoE P.D. equipment which is fully compliant with the IEEE
802.3af/at PoE standard.
Note: The equipment being powered must be fully IEEE 802.3af/at
compliant in order for the power supply to be able to sense the PoE
devices signature and apply power. Power is supplied on Ethernet pins
1/2(V+) and 3/6(V-).Ethernet pins 1/2/4/5 (V+) and 3/6/7/8 (V-).
Features
Support 2 ports 10/100/1000Base-T(X) P.S.E ports
Fully compliant with IEEE 802.3af/at standard
Auto protection for over voltage power input and over current output
Provide up to 30W per port PoE output
Power input from 50 to 57VDC
Rigid IP-30 housing design
DIN-rail and wall mounting enable
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures Number
INJ-102GT
DIN-rail Kit
Wall-mount Kit
QIG
Q I G
INJ-102GT
G
uide
Preparation
Before installation, make sure you have all of the package contents available and a PC
with Microsoft Internet Explorer 6.0 or later, for using web-based system management
tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure the operating
ambient temperature is compatible with the maximum ambient temperature (Tma)
INJ-102GT PoE
specified by the manufacturer.
Reduced Air Flow:
equipment is not compromised during installation.
PoE injector can
INJ-102GT
Mechanical Loading: Make sure the mounting of the equipment is not in a hazardous
condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment to the
supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
Dimension Unit =mm (Tolerance ±0.5mm)
1
2
X 1
Panel Layouts
X 1
Front Panel
X 2
INJ-102GT
4 PWR
Data IN
1
X 1
3
PoE OUT
2 1 2
Data IN
1
2
PoE OUT
10/100/1000T
1907-2-00-N102GTXXX2-FX010
INJ-102GT
Make sure the amount of air flow required for safe operation of the
24.3
13.1
25.6
Ø5.9
Ø3.0
INJ-102GT
PWR
Data IN
14.0 6.05
PoE OUT
1 2 PoE
Data IN
PoE OUT
10/100/1000T
26.1
Rear Panel
1. Din-rail screw holes
1. Gigabit PoE port
2. Gigabit Data port
3. PoE indicator
4. PoE power indicator
1
PoE
PRINTED ON RECYCLED PAPER
Industrial Gigabit Injector
Top Panel
1. Terminal block
2. Wall-mount screw holes
2 1
Installation
DIN-rail
Step 1 : Slant the device and screw the Din-rail kit onto the back of the device, right in the middle of
the back panel.
Step 2 :Slide the device onto a DIN-rail from the Din-rail kit and make sure the device clicks into the
rail firmly.
25.0
Wall-mounting
Step 1: Screw the two pieces of wall-mount kits onto both sides of the switch. A
total of eight screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the correct
locations of the four screws.
Step 3: Insert four screw heads through the large parts of the keyhole-shaped apertures, and
then slide the switch downwards. Tighten the four screws for added stability.
Version 2.0
INJ-102GT
PWR
Data IN
1
PoE OUT
1 2 PoE
Data IN
2
PoE OUT
10/100/1000T
Quick Installation Guide
