FHS Holztechnik GmbH
Maintenance Instructions

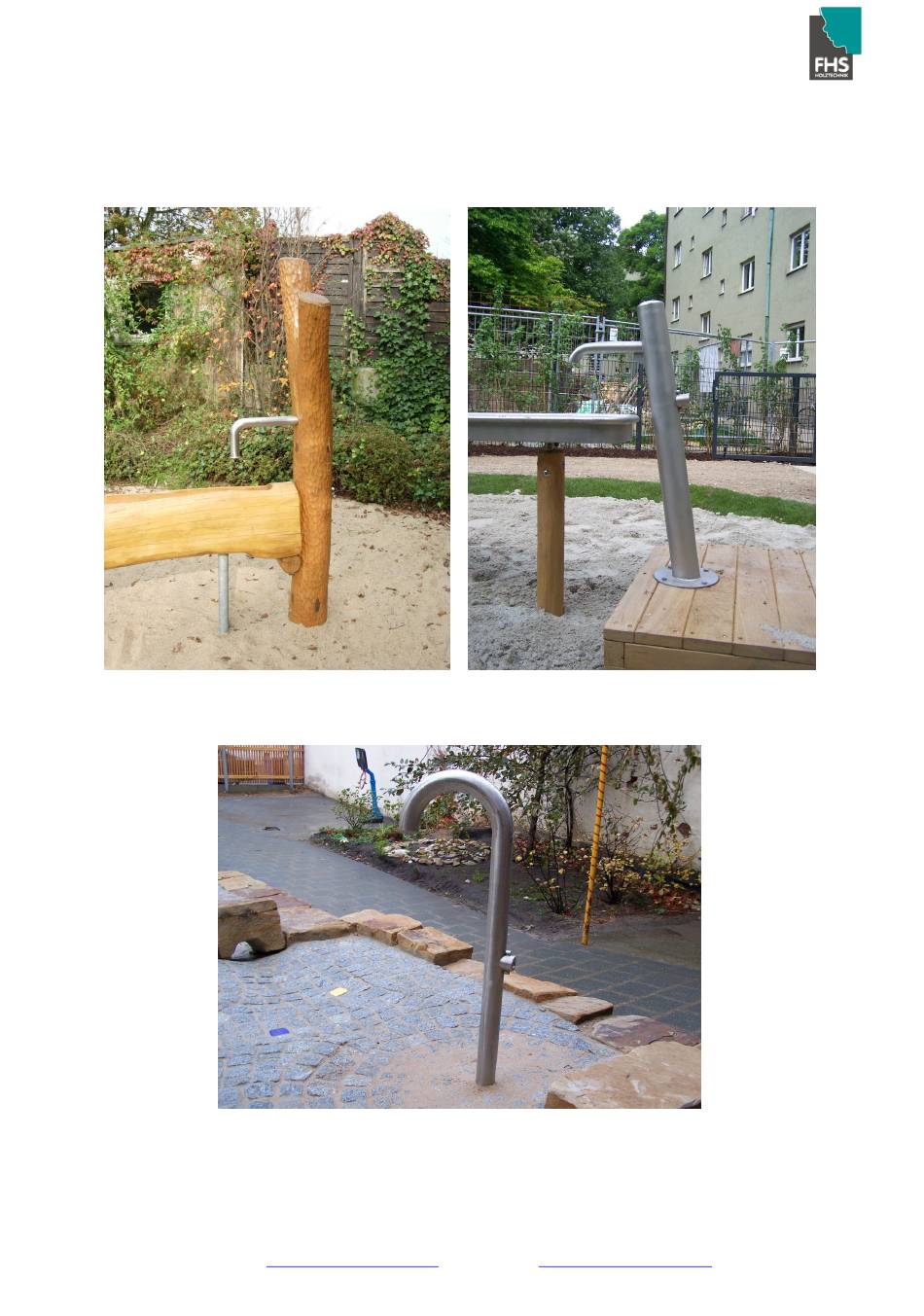

Robinia Trunk Water Dispenser
Stainless steel Water Dispenser
Article-Nr. 905598120R
Article-Nr. 9055040000
Stainless-steel Water Taps
Article-Nr. 9055030000
1
Niedereimerfeld 23 * 59823 Arnsberg
Tel.: 02931 9620-0 * Fax: 02931-962050
E-Mail:
info@fhs-holztechnik.de
* Homepage:
www.fhs-holztechnik.de
Advertisement
Summary of Contents for FHS Holztechnik 905598120R
- Page 1 FHS Holztechnik GmbH Maintenance Instructions Robinia Trunk Water Dispenser Stainless steel Water Dispenser Article-Nr. 905598120R Article-Nr. 9055040000 Stainless-steel Water Taps Article-Nr. 9055030000 Niedereimerfeld 23 * 59823 Arnsberg Tel.: 02931 9620-0 * Fax: 02931-962050 E-Mail: info@fhs-holztechnik.de * Homepage: www.fhs-holztechnik.de...
- Page 2 FHS Holztechnik GmbH Maintenance Instructions / Spare Parts Robinia Trunk Water Dispenser / Stainless steel Water Tap / Stainless steel Water Dispenser ATTENTION: During the installation it must be observed that no dirt (e. g. sand) will get into the water circulation –...
- Page 3 FHS Holztechnik GmbH 2. Remove cover carefully Water Dispenser as Robinia Trunk: Please begin with the next step Niedereimerfeld 23 * 59823 Arnsberg Tel.: 02931 9620-0 * Fax: 02931-962050 E-Mail: info@fhs-holztechnik.de * Homepage: www.fhs-holztechnik.de...
- Page 4 FHS Holztechnik GmbH 3. Using a small screwdriver (3 mm wide), carefully pry off the pressure cap of the self-closing valve at the recess Niedereimerfeld 23 * 59823 Arnsberg Tel.: 02931 9620-0 * Fax: 02931-962050 E-Mail: info@fhs-holztechnik.de * Homepage: www.fhs-holztechnik.de...
- Page 5 FHS Holztechnik GmbH Niedereimerfeld 23 * 59823 Arnsberg Tel.: 02931 9620-0 * Fax: 02931-962050 E-Mail: info@fhs-holztechnik.de * Homepage: www.fhs-holztechnik.de...
- Page 6 FHS Holztechnik GmbH 2. Adjusting the Flow Time The flow time has already been pre-set at the factory setting. If you still would like to change the flow time (longer or shorter flow time), then you can do so with...
- Page 7 FHS Holztechnik GmbH 3. Exchanging the Functional Device inside the Self-Closing Valve Remove pressure cap as previously described Loosen the snap ring washer with a small screw driver Carefully pull up the cover Remove spring Niedereimerfeld 23 * 59823 Arnsberg Tel.: 02931 9620-0 * Fax: 02931-962050...
- Page 8 FHS Holztechnik GmbH Carefully unscrew the functional device using a ratchet with a 22 nut Remove the functional device Insert the new functional device and tighten (hand-tight). PLEASE DO NOT DESTROY THE THREAD! The guarantee is cancelled when the thread is destroyed...
- Page 9 FHS Holztechnik GmbH Niedereimerfeld 23 * 59823 Arnsberg Tel.: 02931 9620-0 * Fax: 02931-962050 E-Mail: info@fhs-holztechnik.de * Homepage: www.fhs-holztechnik.de...
-
Page 10: Technical Specifications
FHS Holztechnik GmbH Technical Specifications Nominal width DN 15 Min. Flow Pressure 1,0 bar Max. Flow Pressure 4,5 bar Flow Calculation 0,20 l/s Volume Flow Rate 0,40 l/s (24 l/min) at 3 bar flow pressure Flow time at 38 xC 1 –... - Page 11 FHS Holztechnik GmbH Sources of Errors / Troubleshooting Water flow rate too long / too short See instructions on page 2-4 (Adjusting the flow time) Close water supply Water runs through during initial operation Pump the pressure cap several times...
-
Page 12: List Of Spare Parts
FHS Holztechnik GmbH List of Spare Parts Self-closing Valve Article-Nr. 9153402020 1 – Pressure cap Article-Nr. 9153402060 1a – Sealing cap with o-ring Article-Nr. 9153402050 2 – Functional device Article-Nr. 9153401030 3 – Valve seat with o-ring Article-Nr. 9153402040 Spare Parts Set consists of: Rubber Parts Article-Nr.
