Xtreme Acoustics XAMWL303 Quick Start Manual

UHF WIRELESS MICROPHONE
XAMWL303
Product Introduction
Xtreme Acoustics UHF all-purpose wireless microphone is suitable for all types of devices
such as Smartphones, Cameras, Laptops, PA systems, Mixers etc. XAMWL303 has stable
signals, clear audio capture and wide range of usage make it a high performance microphone.
The transmitter and receiver have upto 4hrs of heavy usage and take 2hrs to fully charge with
an e ective working range of upto 25ft-30ft. The microphone is best suited for audio and
video recording for YouTube, Vlogging, Podcasting and other forms of audio content creation.
Product Description
Transmitter
1. Battery: 3.7V/400mAh
2. Charging Voltage: 5V±0.25V
3. Working Current: 103MA±15MA
4. Transmitted Power: 10DBM
5. Standby Current: 45UA
6. Frequency: 500MHZ-690MHZ
7. Working Time: 4 hours

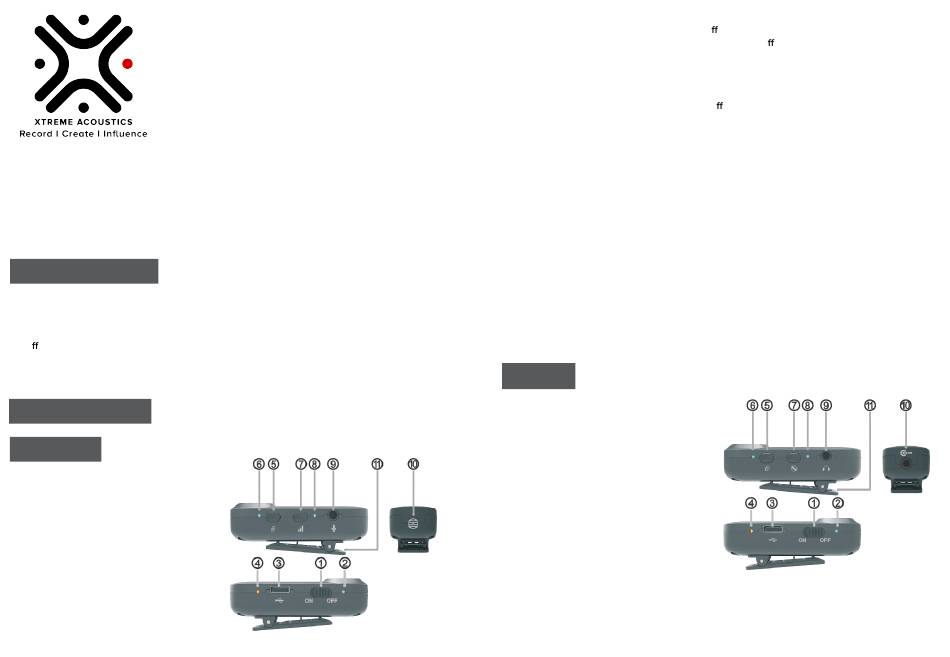

Power switch: Toggles the power on or o .
1.
Power Indicator: Indicates if the transmitter is on or o .
2.
USB Type-C Charge Port: Standard Type-C port for charging via computer or power
3.
adapter.
Charging Indicator: Full power is indicated by green light, Low power is indicated by bright
4.
yellow light and when charging, red light indicates that the transmitter is charging and once
charging is completed, the red light goes o .
Pairing Button: The transmitter is paired with receiver from the factory itself. You can
5.
also long press for two seconds to pair, short Press to choose another frequency (12
frequency points to choose from).
Pairing Indicator: Indicates the status of pairing. Fast flash indicates pairing is in process
6.
and once the light stops flashing, it indicates that it has been paired.
Volume Button: The volume button toggles 3 levels of volume for the
7.
microphone.
Volume Indicator Light: Indicates the volume level of the transmitter. (Level 1,
8.
indicator light flashes one time. Level 2, indicator light flashes twice and Level 3 the
indicator light flashes thrice).
External Microphone Input: Additional port for an external Standard 3.5mm TRS
9.
microphone input.
Built-in Microphone: High quality microphone that captures crisp and clear audio with
10.
zero latency using UHF technology.
Back Clip: The Transmitter can be directly clipped on to a collar to use.
11.
Receiver
1. Battery: 3.7/400Mah
2. Charging Voltage: 5V±0.25V
3. Working Current: 89MA±5MA
4. Standby Current: 30UA
5. Frequency: 500MHZ-690MHZ
6. Frequency Response: 80Hz-10KHz
7. Working Time: 4 hours
