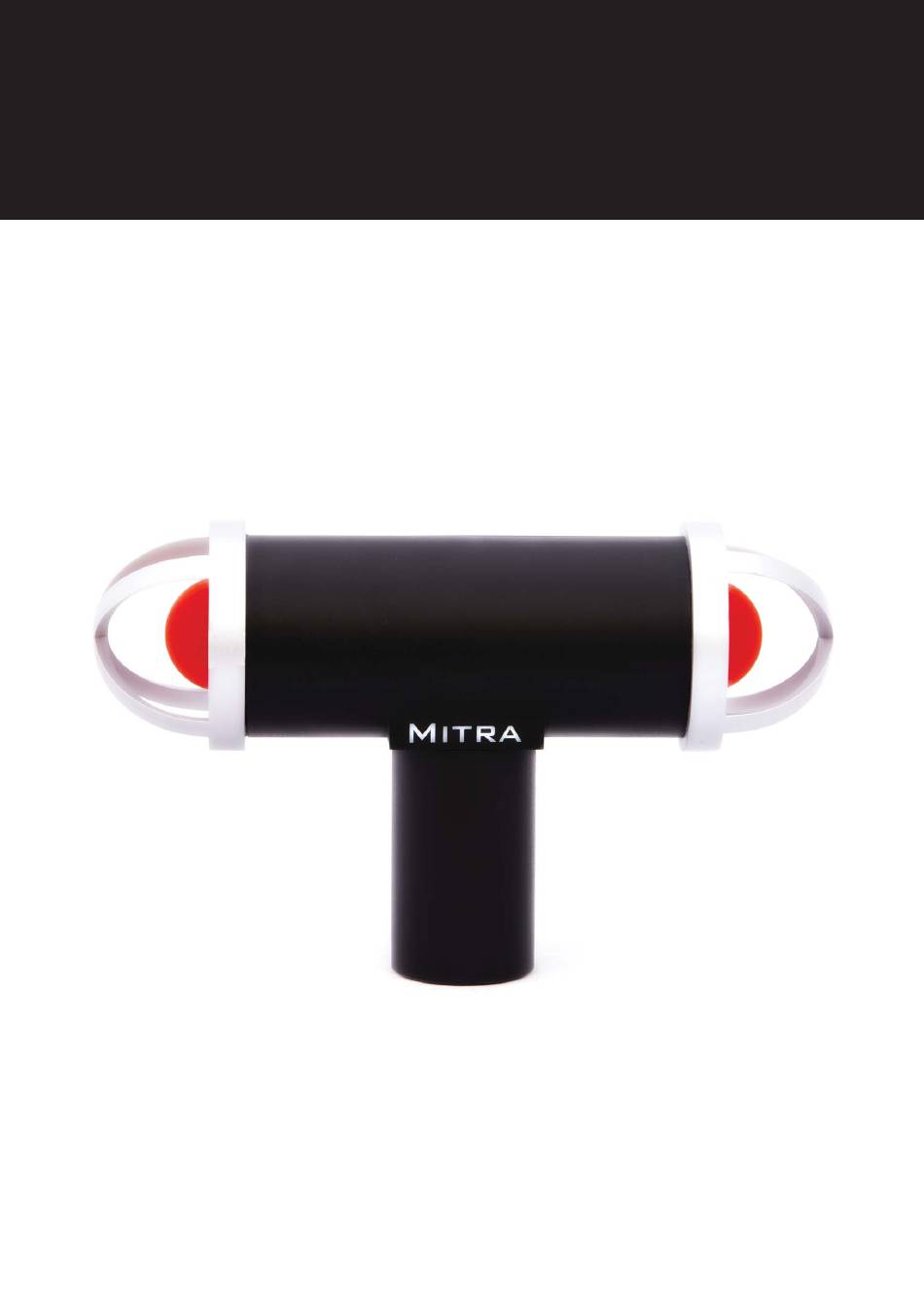

Page 1 Mitra 3D Mic Pro Immersive microphone systems Instruction Manual Version 1.0...
Page 3 Record immersive sound with your 3D Mic Pro Preserve you most treasured memories, family events, music performances in life-like, high defi nition, 3D sound image. You may not need to watch the video, just close your eyes and you will feel as if you are there. It is an experience you have never had before; it...
Page 4: Table Of Contents
Aligning the 3D Mic Pro Recording process Ba ery fuel gauge Mountng to a speaker stand Moun ng to a boom pole Edi ng 3D Mic Pro recording Equalizing the audio Recording ps Grip technique Panning technique Reducing the wind noise...
Page 6 End grills SHEM (Simpliﬁ ed Human Ear Model) Handle base Hand grip Microphone barrel Power Switch XLR connector le channel XLR connector right channel Fuel gauge for ba ery A Fuel gauge for ba ery B Phono output ¼” tripod mount hole Handle screw mount Ba ery cable connector Ba ery clamp...
Page 7: Installing Ba Eries
• Unscrew the hand grip from the handle screw mount • Connect ba ery snaps to two 9V PP3 ba ery terminals • Secure the ba eries in the ba ery clamps • Turn on the power switch and check to see that both ba ery fuel gauges are glowing equally bright and green •...
Page 8 You can connect your 3D Mic Pro to any audio/video recorder, DSLR and video cameras by using a XLR or 3.5 mm stereo phono connector. The 3D Mic Pro provides low impedance Line level output so that you can run long phono wires and XLR cables from the...
Page 9 The 3D Mic Pro connected to a DSLR using a third party hot shoe ball head. A typical hot shoe ball head, which you must use to mount the 3D Mic Pro to any standard camera hot shoe. The 3D Mic Pro connected to a consumer HD camera using a third party hot shoe ball head.
Page 10: Phantom Power Warning
XLR cable. The 3D Mic Pro is self powered and injec on of 48 volt phantom power to the XLR output of the 3D Mic Pro may damage its internal elecronic circuit. We have built a protec on...
Page 11: Aligning The 3D Mic Pro
The 3D Mic Pro should be aligned correctly to the camera lens op cal axis to get the accurate 3D sound image. Moun ng the 3D Mic Pro on most camera hot shoes will help you to achieve this. If your camera hot shoe is oﬀ the op cal axis of the camera, you will need to mount the 3D Mic Pro on a camera bracket, tripod or a boom and then align it with the camera op cal axis.
Page 12 Examples of incorrect alignment...
Page 13: Recording Process
• Connect the 3D Mic Pro to your audio recorder or a video camera • Turn on the 3D Mic Pro • Adjust the recording level in your camera or audio recorder • Start Recording • Stop recording • Turn oﬀ the 3D Mic Pro 3D Mic Pro is designed for long ba ery life.
Page 14: Mountng To A Speaker Stand
You can mount the 3D Mic Pro to any standard speaker stand by using the 3D Mic Pro shock mount. This op onal accessory allows you to a ach the 3D Mic Pro to speaker stand or camera support system equipped with 1/4” or 3/8”...
Page 15: Moun Ng To A Boom Pole
Hanging the microphone upside down will laterally invert the 3D sound image. To correct this, connect the 3D Mic Pro le XLR output to the right XLR input of the recorder and 3D Mic Pro right XLR output to le XLR input of the recorder.
Page 17: Edi Ng 3D Mic Pro Recording
The 3D Mic Pro’s patent pending technology adds a similar transfer func on to the recorded sound to create the psychoacous cs. This also makes the 3D Mic Pro more sensi ve towards certain sound frequencies just like human ear. The frequency response graph of this transfer func on is shown below.
Page 18: Recording Ps
Grip technique Consumer digital HD video cameras are ge ng smaller everyday. While using the 3D Mic Pro with such a small camera, it is easier to grip the whole system by the 3D Mic Pro’s hand grip. This technique will allow you to shoot more stable videos by balancing 3D Mic Pro and the camera like a camera stabilizer.
Page 19: Panning Technique
Panning technique While shoo ng video, it is absolutely necessary to keep the 3D Mic Pro aligned with the video camera. However, while recording only audio, you can physically move or rotate the mic to create a panning eﬀ ect for a sta onary sound source. For example, if you record...
Page 20: Care And Maintenance
Please ﬁ ll out the informa on sec on on the card and mail it to Mitra Corp. or register on- line at h p://www.3dmicpro.com within 15 days of the purchase.
Page 21: Technical Specifi Ca On
Direc onal pa ern: Very similar to human ear Principle of opera on: Pressure transducer with patent pending SHEM Cartridge type: Back plate Pre-polarized condenser capsule Frequency range: 20 Hz to 20 kHz Sensi vity ± 4 dB at 1 kHz: -35 dB (0db = 1V/pa) Signal to Noise Ra o: >...
