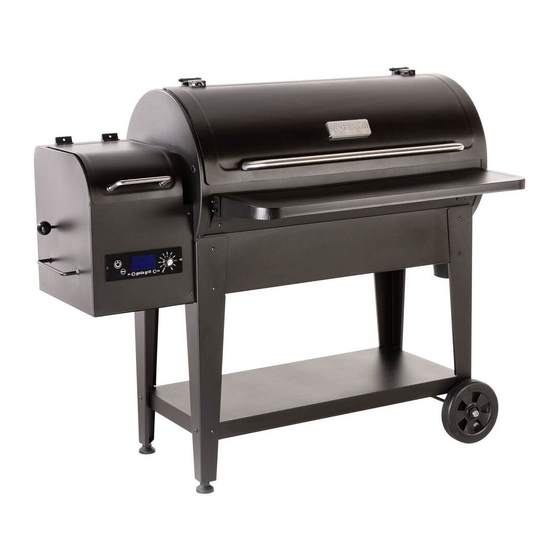

Summary of Contents for geda grill Odin 95

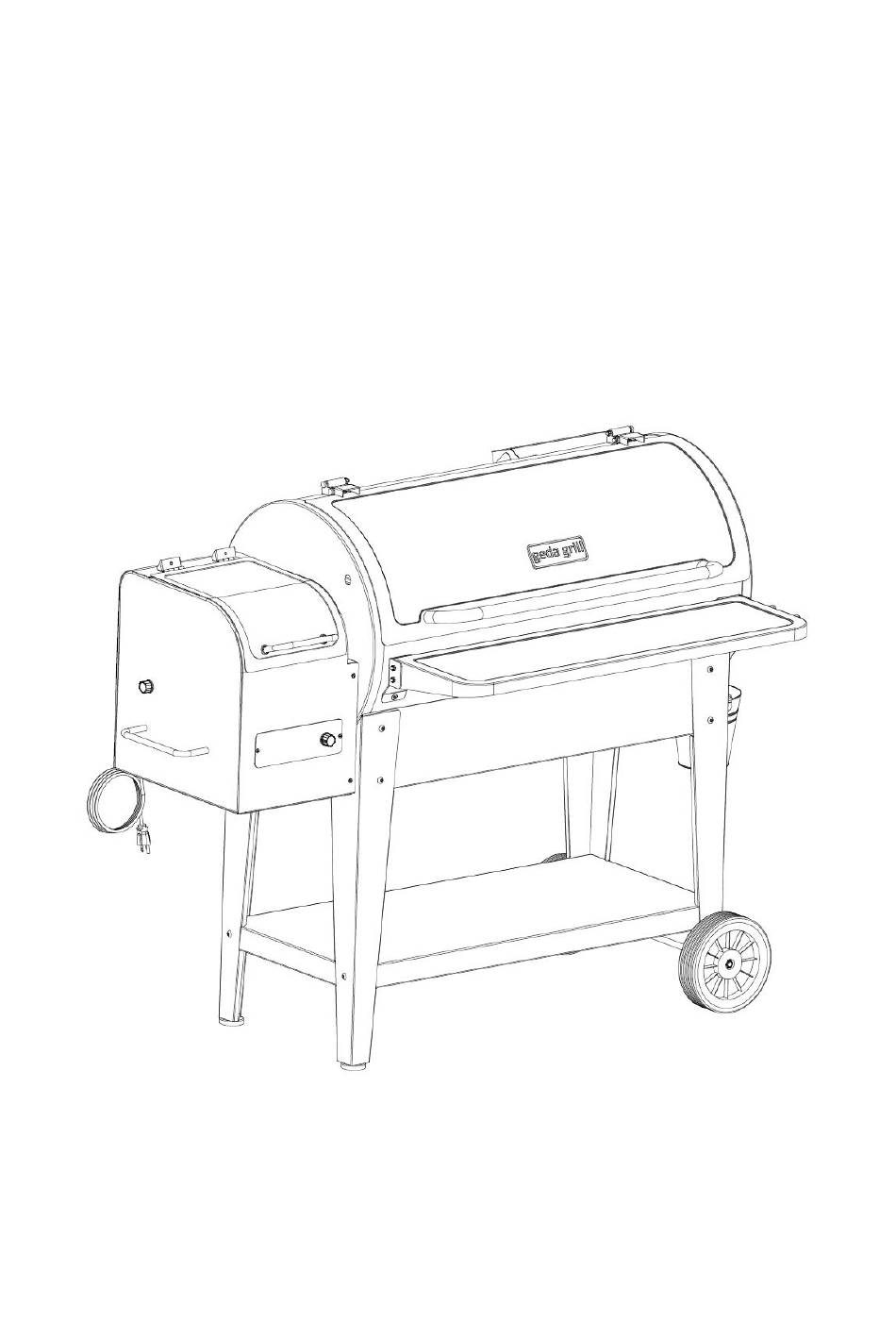

  • Page 1 USER’S MANUAL Odin 95...
  • Page 2 Cooking with a geda hardwood pellet grill will bring many years of enjoyment. Your new geda grill is designed and engineered in Germany to make outdoor cooking easier, while giving you optimal performance with the most extrodinary-flavored food.
  • Page 3 Before starting the geda grill, make sure it’s in good condition.   Do not alter the geda grill in any way. Do not start or operate the geda grill until it’s completely assembled and all screws are securely  tightened. ...

  • Page 4: Grill Parts

    Grill parts...
  • Page 5 Grill parts Item Description Qty/Set Item Description Qty/Set Chimney Hopper Bottom Plate Chimney Slider High Leg Grill Handle Short Leg Grill Lid Wheel Axle 4,1 Probe Rubber Plug Storage Plate 95 4,2 Heat Insulation Band Pellet Discharge Plate...
  • Page 6 Assemble your Odin 95 grill Item Discription Size Shelf Front 95 Shelf Front Hinges Storage Plate 95 High Leg Short Leg Wheel Axle Wheel + Wheel Cap Grill Handle Hopper Handle Warming Grate 95 Grill Grates Direct Fire Lever, Duroplast ball, Locking...
  • Page 7 Grease Bucket Elastic Gasket M4 Countersunk Bolt M6 Hexagon Bolt 30 20mm M6 Hexagon Bolt 30mm M6 Hexagon Step Bolt 14mm M6 Cap Nut M6 Flange Nut M12 Locknut Rubber Gasket 15mm Hex Allen Key M6 Gasket...
  • Page 8 Assembly steps Odin 95 M6 Gasket (8) M6 Flange Nut (4) M6 Hexagon Bolts 20mm (8) High Leg Storage Plate 95 Rubber Gasket 15mm (2) M6 Hexagon Bolt 30 mm (2) M6 Hexagon Bolt 20mm (2)
  • Page 9 M6 Gasket(12) Short Leg M6 Flange Nut (8) M6 Hexagon Bolt 30mm (2) Rubber Gasket 15mm (2) M6 Hexagon Bolt 20mm (10) High Leg Foot Wheel Axle Wheel M12 Locknut (2)
  • Page 10 Grill Handle Hopper Handle M6 Hexagon Bolt 20mm (2) M4 Countersunk Bolt 8mm（2） M6 Hexagon Bolt 20mm (6) Shelf Front Hinges M6 Gasket (6)
  • Page 11 Elastic Gasket (4) M6 Cap Nut (4) M6 Gasket(2) M6 Hexagon Step Bolt 14mm (4) Shelf Front 95 Duroplast Ball 40 mm Direct Fire Shield Direct Fire Lever 95 Fire Shield Locking Splinter Grease Tray 95 Grease Bucket...
  • Page 12 First Startup Instruction  Remove the grill grate, warming grate, direct fire shield, shield lever and drip tray from inside the grill.  Connect the power cable to a power outlet of 240V  Make sure that the hopper is clean from unwanted objects and fill the hopper with genuine geda hardwood pellets.
  • Page 13 Pellet Clean-out 1. Put a bucket behind your hopper, under the pellet discharge door. Pellet clean-out door 2. Pull the pellet discharge lever all the way out. Pellet discharge lever...
  • Page 14 Clean your geda grill 1. Make sure your grill is cooled down. The grill should be powered off and the power cord disconnected. 3. Remove the warming grate, grill grate, direct fire lever, direct fire shield and grease tray.

  • Page 15: The Control Panel

    Button Functions POWER BUTTON Press the POWER BUTTON to power ON the geda grill. Once connected to a power source and the POWER BUTTON is pressed, the digital LCD screen will light up. Press and hold the button for 3 seconds to turn the grill OFF, which activates the grill’s Shutdown Cycle.

  • Page 16: Temperature Dial

    Feed pellets into the fire pot. Pressing and holding the feed button will activate an extra feed of pellets to the fire pot. Release “FEED” to stop feeding pellets. DISPLAY The LCD screen is used as the information center for your inputs. The LCD screen will display your current cooking temperature, desired cooking temperature and the temperature of the probe(s) if connected.
  • Page 17 HIGH allows the grill to use its full power and can reach temperatures up to 260°C or higher on a geda grill using geda hardwood pellets. Auger keeps running, fan is on and hot rod is OFF. GRILL ELECTRIC SYSTEM...

  • Page 18: Operation Flow

    55°C. If the grill fails the Startup process, it will automatically restart from step The geda grill will attempt the startup cycle a total of 4 times. If any of the following temperature changes accurse: grill temperature is increased by 20°C or internal temperature reaches 55°C the grill will start its Running Cycle.
  • Page 19 Use the temperature dial to set desired temperature of the grill. At the end of the Startup Cycle, the grill will automatically begin its Running Cycle. The motor, fan and hot rod are will run according to set temperature.

  • Page 20: Year Warranty

    2-YEAR WARRANTY In addition to the statutory guarantee, Geda garden and home GmbH guarantees that this barbecue will not be defective in material and workmanship under normal use and maintenance for a period of two years from the date of purchase. Should complaints still be made, Geda garden and home GmbH will provide the defective components as replacements free of charge.
