Guangdong Transtek Medical Electronics Co., Ltd.

Zone B, No.105, Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

User Manual

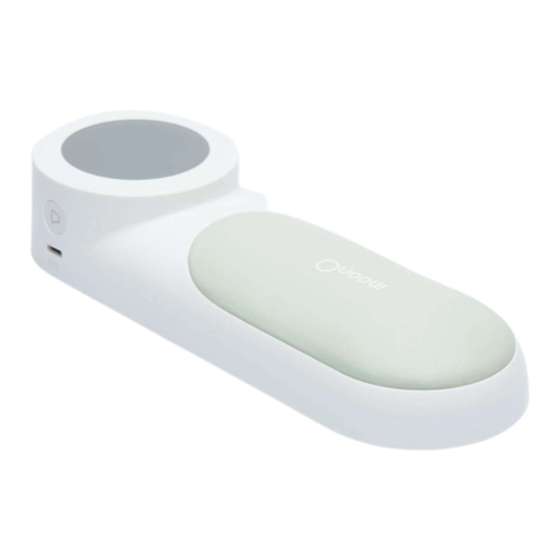

Blood Pressure Monitor LC-BP01

Thank you very much for selecting moon Blood Pressure Monitor

LC-BP01.

Please read the user manual carefully and thoroughly so as to ensure

the safe usage of this product, Keep the manual well for your further

reference in case you have problems.

Version:1.0

Arm Type

Table of Contents

Need help?

Do you have a question about the LC-BP01 and is the answer not in the manual?

Questions and answers

Summary of Contents for moonO LC-BP01

Page 1 Version:1.0 User Manual Blood Pressure Monitor LC-BP01 Arm Type Thank you very much for selecting moon Blood Pressure Monitor LC-BP01. Guangdong Transtek Medical Electronics Co., Ltd. Zone B, No.105, Dongli Road, Torch Development District, Please read the user manual carefully and thoroughly so as to ensure...
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents INTRODUCTION ..............2 General Description Indications for Use Contraindications Measurement Principle Safety Information LCD Display Signal Monitor Components List BEFORE YOU START ............9 Power Supply and Charge Power Setting the Time,Date and Unit Pair up with Your Device Select the User Turn on or turn off the voice...
Page 3: Introduction
The design provides you with two years of reliable service. Symbol for “TYPE BF APPLIED Readings taken by the LC-BP01 are equivalent to those obtained by Symbol for “THE OPERATION PARTS” GUIDE MUST BE READ”...
Page 4 INTRODUCTION INTRODUCTION CAUTION CAUTION * This device is intended for adult use in homes only. * The ACCOMPANYING DOCUMENT shall disclose that the SPHYGMOMANOMETER was * The device is not suitable for use on neonatal patients, pregnant women,patients with clinically investigated according to the requirements of ISO 81060-2:2018. * To verify the calibration of the AUTOMATED SPHYGMOMANOMETER, please contact the implanted, electronical devices, patients with pre-eclampsia, premature ventricular beats, atrial fibrillation, peripheral, arterial disease and patients undergoing intravascular therapy or...
Page 5: Lcd Display Signal
INTRODUCTION INTRODUCTION CAUTION LCD Display Signal * The service life of the cuff may vary by the frequency of washing, skin condition, and storage state. The typical service life is 10000 times. * It is recommended that the performance should be checked every 2 years and after maintenance and repair, by retesting at least the requirements in limits of the error of the cuff pressure indication and air leakage (testing at least at 50mmHg and 200mmHg).
Page 6: Monitor Components
CUFF (Type BF applied part) CAUTION 3 Pump The battery of LC-BP01 is built-in rechargeable lithium-ion battery, please 4 Valve 5 Cuff do not disassemble it by the unauthorized maintenance personel. * Under the normal using, it can charge power about 100 times, if the...
Page 7: Setting The Time,Date And Unit
BEFORE YOU START BEFORE YOU START Pair up the Blood Pressure Monitor CAUTION with Your Device • Do not attempt to replace your blood pressure monitor’s battery. It is built-in and not changeable. • Only charge the battery in accordance with the user instructions supplied Press and hold the voice broadcast button for 3 seconds when the with the blood pressure monitor.
Page 8: Select The User
BEFORE YOU START BEFORE YOU START Tie the Cuff Select the User Remove all jewelry, such as watches and bracelets from your left arm.Note: If your doctor has diagnosed Press and hold the on/off button for 3 seconds when the you with poor circulation in your left arm, use your right arm.
Page 9: Measurement
MEASUREMENT MEASUREMENT Start Measurement Inflating and measuring. 1.When the monitor is off, press ON/OFF BUTTON to turn on the monitor. (When the volume is on,it will speak “ Starting measurement, please relax” first, and then complete the measurement process.) Boot animation Display and save the results.(When the volume is on, It will broadcast your measuring result.)
Page 10: Information For User
INFORMATION FOR USER INFORMATION FOR USER Tips for Measurement Maintenance To obtain the best performance, please follow instructions below. Avoid immersing it in the water. Within 1 hour Immediate measurement Put in a dry place and avoid the sunshine Clean it with a dry cloth in case. after dinner or drinking after tea, coffee, smoking Avoid dusty environment and...
Page 11: About Blood Pressure
ABOUT BLOOD PRESSURE ABOUT BLOOD PRESSURE What are systolic pressure and diastolic pressure? Why does my blood pressure When ventricles contract and pump blood out fluctuate throughout the day? Systolic Diastolic of the heart, the blood pressure reaches its blood discharging blood entering vein maximum value in the cycle, which is called...
Page 12: Troubleshooting
SPECIFICATIONS TROUBLESHOOTING If any abnormality arises during use, please check the following points: 3.7 V 1000 mAH Built-in rechargeable Power supply li-polymer battery, 5V 1A AC Adapter Digital LCD display Display mode PROBLEM SYMPTOM CHECK THIS REMEDY 52.00mm diameter circular Measurement mode Oscillographic testing mode Power is exhausted.
Page 13: Athorized Component
ATHORIZED COMPONENT COMPLIED STANDARDS LIST Athorized Component Complied Standards List Please use the moon EN ISO 14971:2012 / ISO 14971:2007 Medical devices - Risk management Application of risk management to medical devices authorized adapter Labeling EN ISO 15223-1:2016 / ISO 15223-1:2016 Medical devices. Symbols to be used with medical device labels, labelling and information to be supplied.
Page 14 Surge ±0.5 kV, ±1 kV differential mode ±0.5 kV, ±1 kV differential mode the equipment LC-BP01, including cables specified by the manufacturer. Otherwise, IEC61000-4-5 ±0.5 kV, ±1 kV, ±2 kV common mode ±0.5 kV, ±1 kV, ±2 kV common mode degradation of the performance of this equipment could result.
Page 15: Fcc Statement
SPECIFICATIONS EMC GUIDANCE FCC STATEMENT FCC Statement Table 3 FCC ID:OU9LC-BP01-B Guidance and manufacturer’s declaration - electromagnetic Immunity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not IMMUNITY Radiated RF Test...
