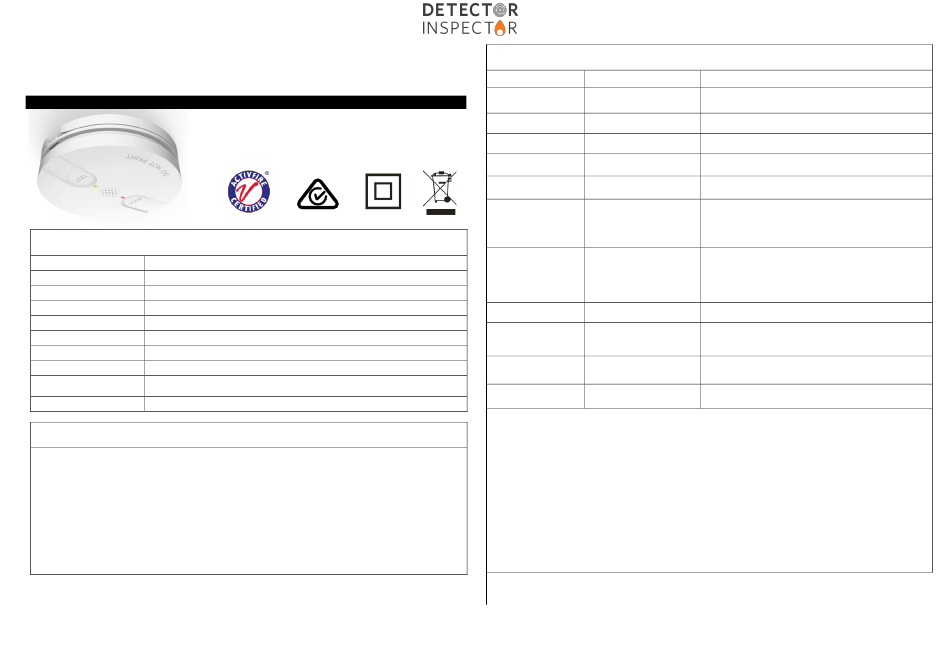

Detector Inspector DI240I User Manual

Detector Inspector Smoke Alarm User Manual
Model number: DI240I
Read All Instructions Before Installation

DI240I Specifications:

Main Power Source 220-240 V AC/50 Hz
Secondary Power Source DC 3V battery: Pairdeer CR17450
AC Operating Current 100mA
Interconnecting Max. 24 alarms (wired 150m maximum) Compatible RF Module DI240WI (not included)
Operating Temperature 0 °C to 40 °C
≤ 93%
Ambient Humidity
Alarm Sensitivity 0.111-0.182dB/m
≥ 85dB(A) @ 3m
Alarm Volume
ISO8201(BI 0.5s - pause 0.5s - BI 0.5s - pause 0.5s - BI 0.5s - pause 1.5s, with the
Sound Pattern
RED LED flashing, repeat this alarm pattern)
Comply with AS3786:2014

WARNING

• Only an appropriately qualified electrician can install this alarm.
• Only use this alarm for the purpose described in these instructions and ensure the installation meets with the correct
wiring rules and regulations.
• This alarm's wire leads may present a voltage hazard.
• Always disconnect AC power before installing or removing.
• Ensure the product has been correctly installed and tested for safe operation before reconnecting to electricity.
• Do not connect the interconnection wire to the Live or Neutral terminal.
• Non-pure sinusoidal power sources are not suitable for this smoke alarm (e.g. derived from square-wave invertors).
• Avoid exposing this alarm to moisture.
Failure to follow these instructions may result in death or serious injury.
Model number: DI240I
Date: 2020.07.07 REV A
Thank you for buying our smoke alarm. This manual will show you
how to install and operate it.
Please keep this manual in a safe place for future use.
AS3786:2014

Product Function Description

Function What the alarm is doing
The Red LED flashes every
Standby status
40 seconds.
The Green LED continuously
AC power indication
illuminates.
The unit chirps with Red LED
Low battery warning
flashing every 40 seconds.
The unit chirps between the
Fault warning
Red LED two times flashing.
The unit chirps between the
End-of-life warning
Red LED flashing twice.
The Red LED flashes every
second with alarm
sounding until you release
Test function
the TEST button.
The Red LED flashes every
8 seconds.
Silence function
The Red LED flashes every
Fire alarm
second, with alarm sounds.
Interconnection alarm The alarm sounds without Red
LED flashing.
The Red LED flashes every
Do Not Disturb
40 seconds.
Pluggable module Refer to the pluggable module
(Optional) user manual.
WARNING
•
If the alarm sounds, and it is not being tested, it means the unit detected smoke. THE SOUND OF THE ALARM
REQUIRES YOUR IMMEDIATE ATTENTION AND ACTION.
•
Before using the Silence function, identify the source of the smoke and make sure you are safe. After a 10 minute
silence, the unit will resume normal operation.
•
Do not use an open flame to test your alarm.
1
What you need to know
The unit is working.
The unit is receiving AC power.
The battery is too low, replace battery as soon as possible.
The unit is faulty. Refer to "Trouble Shooting".
After 10 years the unit sends out an end-of-life warning and
will need replacing.
 Test by pressing the TEST button for least 5 secs.
 The alarm will sound if all electronic circuitry, horn and
battery are working properly.
 Refer to "Trouble Shooting" if the alarm doesn't sound.
 This smoke alarm has a built-in Silence feature.
 If cooking or other non-hazardous sources trigger the alarm,
it can be silenced for 10 mins by pressing the HUSH button
for at least 2 seconds.
 After 10 mins the alarm resumes normal operation.
The alarm sounds when it detects fire.
The unit will enter the interconnection alarm mode when it
receives wire interconnection alarm signals or wireless alarm
signals.
The unit will stop audible warnings for approximately 10 hours
from low battery or fault mode when the HUSH button is
pressed.
Optional pluggable wireless module.
