Summary of Contents for SIMPLEMENTE AGUA PWS2000

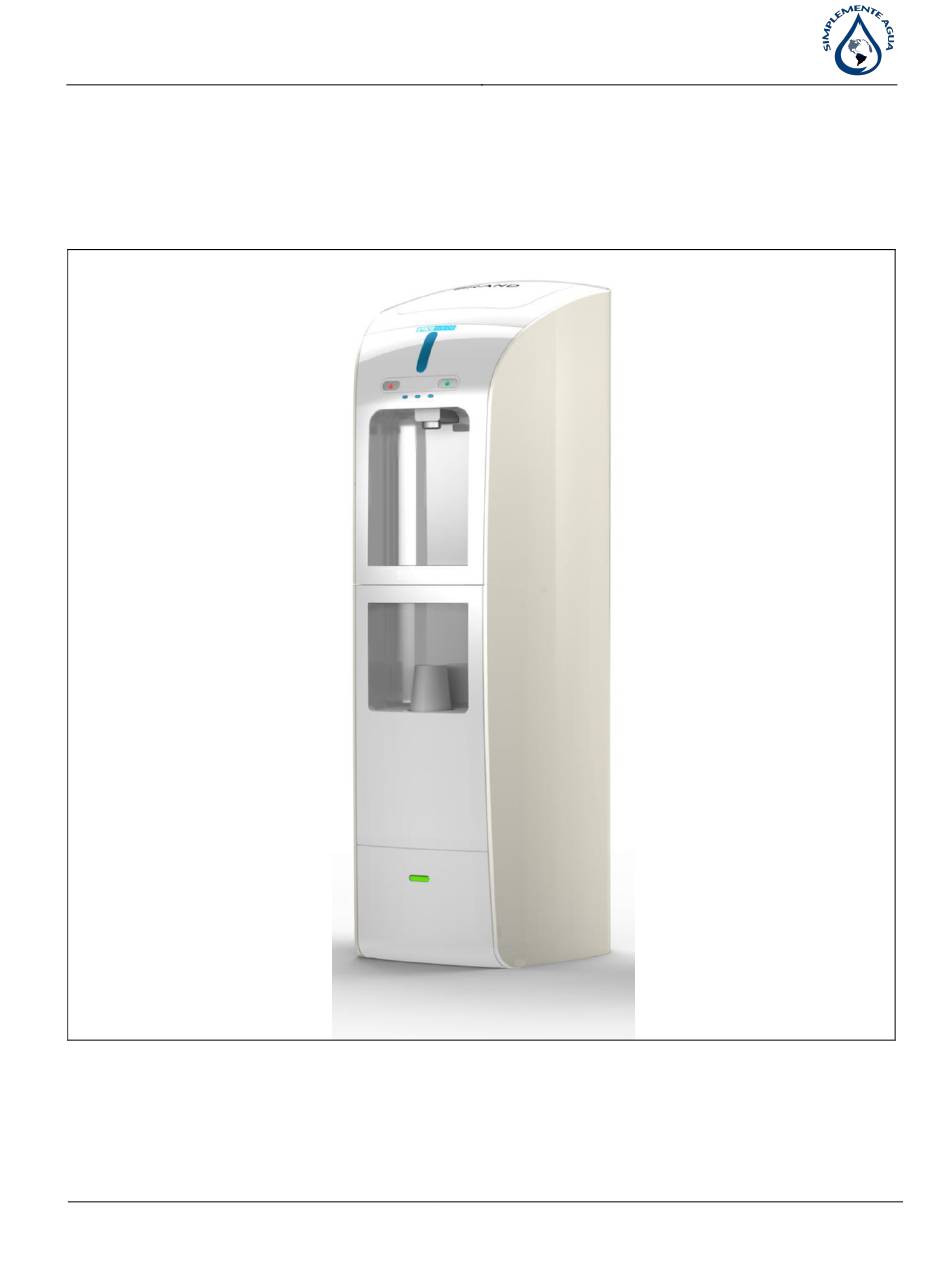

- Page 1 PWS2000 Water Dispenser User Manual PWS2000 Water Dispenser User Manual C130-00049 OCT2013 Page 1...
-
Page 2: Notices & Safety Information
PWS2000 Water Dispenser User Manual Notices & Safety Information Throughout this manual there are paragraphs set off by special headings. 1. Notice is used to emphasize installation, operation or maintenance information which is important, but does not present any hazard to persons or property. -
Page 3: Table Of Contents
PWS2000 Water Dispenser User Manual Table of Contents Notices & Safety Information ................2 Table of Contents ....................3 PWS2000 Series Water Dispenser Overview ............4 Water Dispenser ..................4 UV Light System ..................4 Leak Detection System ................4 Filtration System .................. -
Page 4: Pws2000 Series Water Dispenser Overview
UV Light System Most models of the PWS2000 Series Water Dispenser are fitted with a UV-C band light system between the tank and dispenser spigot. This system is used to inhibit the growth of bacteria by compromising their DNA structure. -
Page 5: Unpacking
W = White 5 = 220VAC w/ CCC plug Unpacking The PWS2000 comes completely assembled and ready to operate upon installation of the appropriate filtration cartridges. Remove the dispenser and save the carton and packaging materials. The carton contains the following items. -
Page 6: Assembly Drawings
PWS2000 Water Dispenser User Manual Assembly Drawings Figure 1. Side Views 1. Top Service Panel 11. Status Indicator - Power 21. Fuse 2. Side Panel Right 12. Side Panel Left 22. Power Cord 3. Front Top Panel 13. Rear Service Panel 23. - Page 7 PWS2000 Water Dispenser User Manual Main Tank Primary Level Sensor Redundant Level Sensor UV Chamber COLD Tank HOT Tank Filter Manifold Inlet Valve Filter Cartridge Compressor Leak Sensor Figure 2. Exploded View Figure 3. Dimensions C130-00049 OCT2013 Page 7...
-
Page 8: Installation
PWS2000 Water Dispenser User Manual Installation Figure 4. Quick Start Guide. Position & Level 1. Locate the dispenser as close to the water supply and the electrical connections as possible. 2. Level the dispenser using the adjustable leveling feet and built-in bubble indicator. -
Page 9: Install Filtration
3.0” (71 – 76mm). Install Filtration The PWS2000 Water Dispenser is shipped from the factory with no internal filtration installed. Consult with your local dealer on the best filtration solutions for the local water conditions and follow the manufacturer’s instructions on their installation, use, and servicing. Typical solutions include SED for the reduction of particulates, CTO for chlorine, taste, and odor, and RO for the filtration of waterborne microorganisms, heavy metal, and other inorganic contaminants. -
Page 10: Establish Water & Electrical Connections
PWS2000 Water Dispenser User Manual 1. Open the filtration service panel. 2. Mount the manifold to the dispenser back-plate using two mounting screws 3. Connect the yellow (supply water) tube to the inlet port of the manifold. 4. Connect the blue tube (filtered water) to the manifold outlet port. -
Page 11: Flush Filters
PWS2000 Water Dispenser User Manual Flush Filters All filters must be flushed prior to use per manufacturer’s instructions. When using twist lock style cartridges, this process may be combined with the initial dispenser sanitizing process below. Sanitize Dispenser Your dispenser is sanitized at the factory prior to shipment. However, it is recommended to sanitize again before using your dispenser for the first time. -
Page 12: Operation
PWS2000 Water Dispenser User Manual Operation Your PWS2000 Series Water Dispenser contains a simple, intuitive user interface for operation and status. All buttons are backlit and a nightlight is provided in the dispenser area. UV light simulator COLD button HOT button... -
Page 13: Service And Maintenance
PWS2000 Water Dispenser User Manual Service and Maintenance Once assembled, installed, and flushed properly, your PWS2000 Water Dispenser will provide years of trouble-free operation. Normal service should only be carried out by a trained service professional. Depending on usage, the filtration cartridges should be replaced every six (6) months or as directed by their manufacturer. -
Page 14: Reset Leak Detection System
Reset Leak Detection System All models of the PWS2000 Series Water Dispenser are fitted with a leak detect system which will generate an audible and visual warning upon detecting water at the base of the unit due to failed tubing or connections. In addition, the system will automatically close the incoming water supply valve to prevent further damage. -
Page 15: Troubleshooting
PWS2000 Water Dispenser User Manual Troubleshooting Symptom Possible Cause Solution No electric current Check outlet and plug for proper connection flowing No Power / Power Check external circuit breaker External circuit status indicator OFF Check fuse at rear of dispenser and replace as necessary... -
Page 16: Technical Specifications
PWS2000 Water Dispenser User Manual Technical Specifications Cabinet Color Black, white, gray Material Metal side panels, ABS front panels Dimensions 16.6” x 17.1” x 48.8” (422 x 435 x 1240mm) Empty Weight 65 Lbs (29.5 Kg) Water Connections 1/4" push to fit style... -
Page 17: Flow Diagrams
PWS2000 Water Dispenser User Manual Flow Diagrams Figure 10. Flow Diagram (HOT & COLD models) Figure 11. Flow Diagram (HOT, AMBIENT, and COLD models) C130-00049 OCT2013 Page 17... -
Page 18: Electrical Diagram
PWS2000 Water Dispenser User Manual Electrical Diagram Figure 12. Electrical Diagram (All models) MC: motor compressor SW1: HOT dispenser switch H: Heater SW2: COLD dispenser switch SOL1: Inlet valve LD: Water leak detector SOL2: HOT inlet valve WLD: Water level detector... -
Page 19: Normal Service Replacement Parts
PWS2000 Water Dispenser User Manual Normal Service Replacement Parts Filtration Parts, FilterPro Clean & Pure Twist Lock Brand TLSSH Manifold, single stage TLDSH Manifold, double stage TLRO3H-S-C Manifold, triple stage (series) TLROMC Cartridge, RO, 35GPD TLROROMC-75 Cartridge, RO, 75GPD TLSSC... -
Page 20: Warranty
PWS2000 Water Dispenser User Manual Warranty This water treatment system is guaranteed to the original user only to be free of defects in materials and workmanship for a period of one (1) year from the date of purchase, or initial lease, but in no event longer than twenty-four (24) months from the date of manufacture.
